The movement of raw materials in modern fabrication is not merely a preparatory step—it is a critical nexus of efficiency, safety, and cost. Manual handling of sheet metal, glass, and composite panels is a persistent bottleneck, fraught with risk for both personnel and valuable materials. Herochu has developed a new generation of cantilever lifter pneumatic manipulators offering 500 kg to 1000 kg load capacity—versatile lifting solutions that bridge the gap between manual handling and fully automated systems.
The Pneumatic Cantilever Advantage
A standard pneumatic manipulator lifts from directly above the load. A cantilever loading manipulator, by contrast, extends outward from a pivot point, allowing it to reach into machine enclosures, over safety guards, and across wide tables. This reach capability is essential for CNC feeding because the machine bed often sits several feet away from the material storage area. The cantilever structure also provides inherent stability when handling off-center loads, with torque-absorbing design keeping the load level even when the center of gravity shifts.

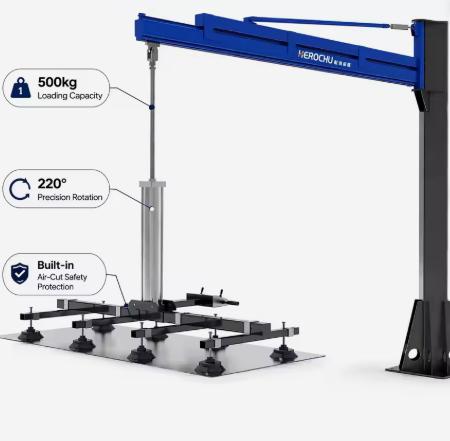

Herochu’s pneumatic cantilever manipulator utilizes a sophisticated cantilever crane design, where precision pneumatic cylinders connect the boom, gripper, and suction cup. This configuration combines pneumatic power with intuitive control, enabling operators to lift, transfer, and position metal plates weighing up to 1000 kg onto the cutting bed with minimal physical effort.
Load Capacity Configurations
Herochu offers a range of pneumatic cantilever manipulator configurations to precisely match specific material profiles. The 500 kg model stands out as a versatile choice for most sheet metal, glass, and profile handling tasks. For more demanding applications, the 1000 kg variant provides the muscle for the heaviest industrial tasks.
Feeding plate thickness accommodates a vast spectrum of materials: the 500 kg variants handle materials up to 12 mm thick, while 20 mm heavy plates demand the 1000 kg capacity with larger 250 mm suction cups. Maximum feeding format of 4000 mm by 1500 mm handles large-format sheets with ease, while minimum feeding format down to 1250 mm by 1250 mm maintains precise control even with smaller workpieces.
Ergonomic Operation and Safety Features
The Herochu pneumatic manipulator is meticulously balanced, requiring operators to apply only minimal force to control the workpiece’s position in any spatial orientation with pinpoint accuracy. This zero-gravity pneumatic balancing replaces manual lifting forces, turning heavy sheet metal loading into an effortless operation.
Safety features include emergency air-cut protection that immediately secures the load in the event of power loss or system failure. The lightweight, modular design features vacuum suction cups for sheet and workpiece handling, requiring minimal force for spatial material movement with the ability to stop at any position. The modular design enables easy assembly and disassembly, simplifying maintenance and reconfiguration.
The system protects operators from strain injuries while preserving raw material surfaces against scratches, bends, and impact deformities during rapid transit. By reducing physical strain to a single-operator push-button process, the system significantly lowers workplace injury risks and boosts operator morale.
Versatile Applications and Material Compatibility
Herochu pneumatic cantilever manipulators are compatible with diverse materials including carbon steel, stainless steel, and aluminum plates. The vacuum suction cup system provides flexible pick and place operation across a wide range of sheet dimensions and surface conditions.
The equipment is equally effective for glass processing, composite panel handling, and general sheet metal fabrication. The pneumatic power mode ensures reliable, efficient, and clean operation. Whether loading 1 mm decorative glass or 20 mm armored panels, Herochu tailors every frame, reach, and suction configuration to the specific floor plan and throughput goals.
For workshops with low to medium volume requirements seeking to eliminate manual handling inefficiencies, Herochu’s 500 kg to 1000 kg pneumatic cantilever manipulators deliver a cost-effective, high-performance solution. The combination of versatile load capacity, ergonomic pneumatic control, and damage-free vacuum handling positions Herochu as the preferred choice for pneumatic manipulator solutions in sheet metal processing operations.
