Heavy-Duty Gantry Pipe Storage System for Industrial Warehouse

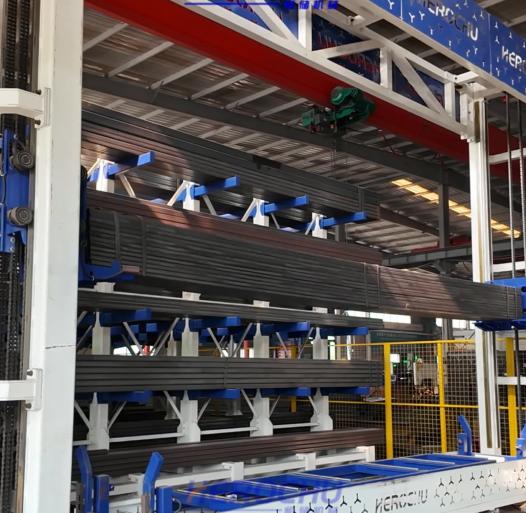

When a steel service center handles hundreds of tons of tubular products every month, the storage infrastructure must match the load. A heavy-duty gantry pipe storage system from Herochu is engineered around welded structural steel columns, cross-braced trusses, and precision-machined rail assemblies that absorb the dynamic forces generated during automated retrieval. Unlike lighter-duty cantilever alternatives that flex under shifting point loads, the gantry frame distributes weight across a continuous base beam, which means each storage level remains true to its original alignment even after years of loading cycles.

The material specification matters as much as the geometry. Herochu selects Q235B-grade structural steel for all load-bearing members, a choice grounded in its yield strength of 235 MPa and predictable weldability during fabrication. Every joint is weld-inspected, and the main columns receive anti-corrosion pretreatment before the finish coat is applied. This construction philosophy allows the system to sustain the full rated capacity of 3,000 kg per storage level without the progressive deflection that undermines accuracy in budget-tier racking.

Corrosion Protection and Electrostatic Powder Coating

Pipe storage environments are rarely clean rooms. Condensation, cutting fluids, outdoor humidity, and airborne metal fines all conspire to attack bare steel surfaces. Herochu addresses this through a multi-stage surface treatment that begins with shot blasting to Sa 2.5 cleanliness, followed by an electrostatic powder coating cured in a controlled-temperature oven. The result is a uniform, tightly bonded polymer film typically 60 to 80 microns thick—significantly more consistent than liquid paint, which tends to pool at edges and thin at corners.

The cured powder coat resists impact chipping, chemical splash from mild acids and alkalis, and UV degradation when the system is installed in semi-open yards. For coastal or high-humidity sites, Herochu can upgrade the coating to a duplex system combining thermoset powder over hot-dip galvanized substrate, pushing the first-maintenance interval well beyond ten years. This is what corrosion protection means in practice: not a marketing label, but a quantified service life built into the steel.

Double-Sided Design That Maximizes Aisle Efficiency

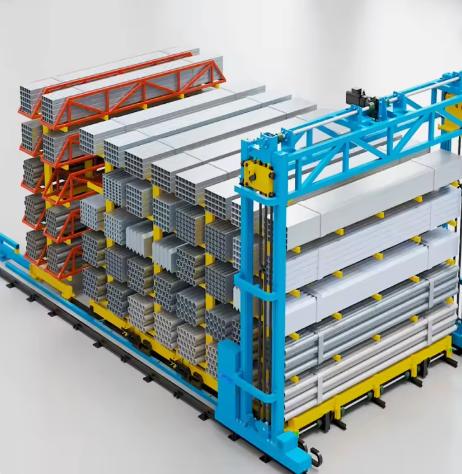

Floor space is the single most expensive resource in any industrial warehouse. A double-sided gantry storage system from Herochu places storage towers back-to-back along a shared traveling rail, allowing the gantry manipulator to serve both faces from a single aisle. Compared with single-sided layouts that demand one aisle per rack row, the double-sided configuration can cut the required footprint by nearly half for an equivalent storage capacity.

This is particularly relevant when storing long products such as seamless pipes, welded tubes, and structural bars, where the aisle width must accommodate the full bundle length during retrieval. By consolidating two storage banks into one structural module, Herochu enables facility managers to reclaim floor area for production equipment, staging zones, or additional storage capacity without leasing new square footage.

Plug-In Installation for Rapid Deployment

Conventional heavy racking often requires grouting, shimming, and extended concrete curing—work that can take weeks. Herochu replaces that model with a plug-in installation approach: the gantry rail sections, storage towers, and manipulator carriage arrive pre-assembled to the extent transport permits, with bolted connections that field crews can torque to specification without welding. The floor interface uses adjustable base plates that level the structure to the required flatness tolerance, after which the system is ready for commissioning.

This modular method also pays off during layout revisions. When a warehouse reorganizes its material flow, a plug-in system can be disassembled, relocated, and recommissioned in days rather than weeks. The gantry rail is segmented, the towers are self-standing, and the control cabinet connects via quick-disconnect plugs. There is no need to demolish embedded anchors or re-pour footings.

Load Capacity from 1,000 kg to 10,000 kg

Not every warehouse stores the same product. A fabrication shop handling light gauge tubing operates under different load assumptions than a mill distributor stocking 12-meter seamless pipe bundles. Herochu addresses this range with a scaled product family:

• HC-XG6053-6 — 6,000 mm pipe length, five levels, 3,000 kg per level, six towers
• HC-XG8055-8 — 8,000 mm pipe length, five levels, 5,000 kg per level, eight towers
• HC-XG8085-10 — 8,000 mm pipe length, eight levels, 5,000 kg per level, ten towers

Each model shares the same gantry platform, which means the control logic, positioning system, and maintenance procedures remain consistent as capacity scales. Facilities that begin with a mid-range unit and later upgrade to a larger model avoid retraining operators or reconfiguring the warehouse management software. The 1,000 kg to 10,000 kg capacity envelope covers the majority of carbon steel, alloy, and aluminum tube storage requirements encountered in service centers and OEM plants.

PLC-Controlled Operation and Automated Material Handling

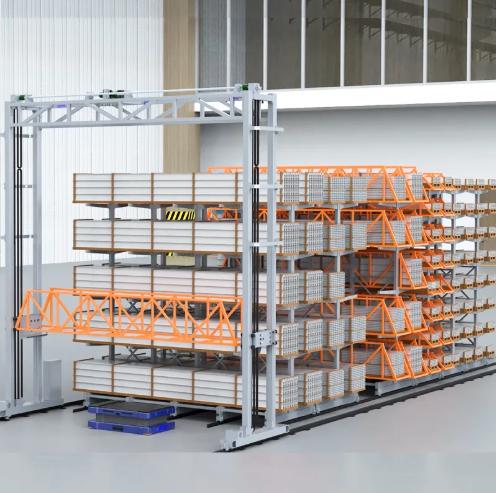

The gantry manipulator is the component that separates a storage rack from a storage system. Driven by a programmable logic controller, the Herochu gantry travels at 5 to 30 meters per minute along the longitudinal rail and lifts at 5 to 15 meters per minute on the vertical axis. Position feedback comes from absolute encoders and laser distance sensors, yielding a repeatability of ±2 mm—a figure that ensures the manipulator returns to the correct bin location cycle after cycle, regardless of load weight.

The PLC coordinates the gantry axes, the load sensors on each fork, and the safety interlocks. When the operator enters a retrieval command on the touchscreen interface, the controller computes the shortest path to the target bin, confirms the destination is clear, and executes the move with synchronized acceleration ramps to prevent load sway. This level of automated loading and unloading eliminates the manual forklift cycles that typically account for a significant share of warehouse labor cost and product damage incidents.

Why the Gantry Architecture Matters for Heavy Loads

Cantilever arms and static shelving can hold weight, but they cannot move it predictably. The gantry approach is fundamentally different: the load-bearing structure and the handling mechanism are integrated. When the gantry engages a pipe bundle, the force path runs through the manipulator forks, into the carriage, and down through the rail base into the floor—never through a cantilever arm in bending. This is why a gantry system can handle bundles at the top of the capacity range without the arm-tip deflection that causes bundles to roll or settle unevenly on conventional racking.

For warehouses storing heavy steel product, this translates into fewer damaged bundles, fewer rejected picks, and a storage system that maintains its positioning accuracy over a multi-year service life. Herochu designs the gantry pipe storage system to be the structural backbone of the warehouse, not a consumable.

Structural Reliability for Industrial Settings

Reliability in an industrial setting is the product of consistent engineering decisions: the right steel grade, the correct section modulus for the load, a coating system matched to the environment, and a control architecture that fails safe. The Herochu heavy-duty gantry pipe storage system is specified around all four. The towers carry the load, the gantry moves it, the PLC tracks it, and the powder coat protects it—year after year, shift after shift.

For operations that need to store steel pipe reliably, densely, and with automated retrieval, the gantry system is a structural investment that returns value through space recovery, labor reduction, and inventory accuracy. That is the case for specifying a purpose-built heavy-duty gantry rather than adapting general-purpose racking to a task it was never designed to perform.
