Heavy Duty CNC Loading Manipulator for Fiber Laser Sheet Metal Handling

Fiber laser cutting systems deliver exceptional speed and accuracy on flat sheet stock, yet the productivity of an entire fabrication cell often hinges on a step that receives far less attention: how raw plates actually reach the cutting bed. Maneuvering a 300 kg carbon steel sheet onto a fiber laser table by hand is slow, physically demanding, and a frequent source of surface scratches that compromise the cut quality the laser was installed to guarantee. Herochu developed its heavy duty CNC loading manipulator to remove this bottleneck, giving fabrication shops a single-operator, vacuum-assisted handling solution sized for the most common fiber laser formats.

Purpose-Built for Fiber Laser Feeding

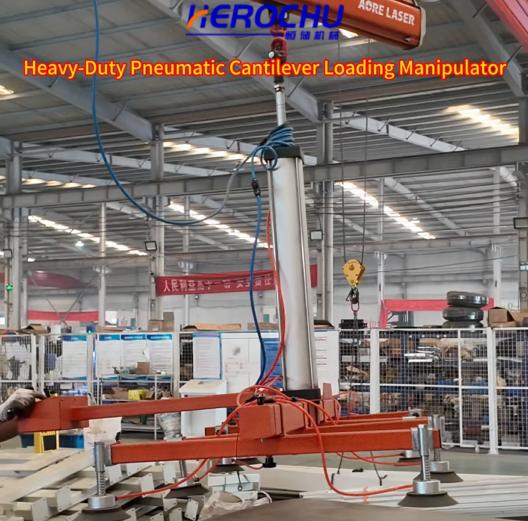

A fiber laser bed rewards consistency. The machine performs best when sheets land flat, centered, and free of distortion, because even a slight overhang or a bent edge forces the operator to interrupt the program and reposition the material. The Herochu loading manipulator pairs a rigid column-and-boom structure with an eight-cup vacuum suction array that lifts the sheet cleanly from its storage position and deposits it on the laser bed through a controlled descent. The result is a repeatable loading motion the laser operator can trust shift after shift.

Vacuum Suction Engineered for Surface Integrity

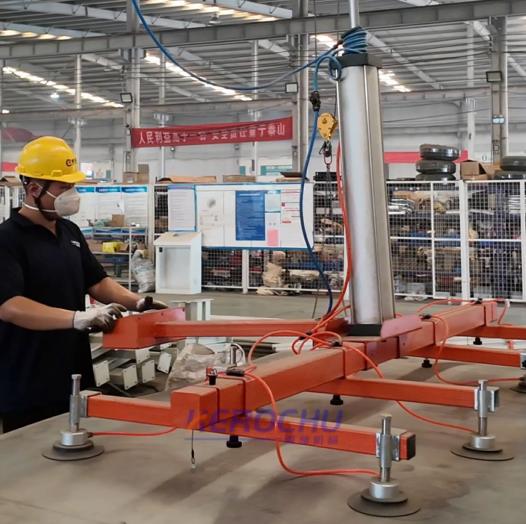

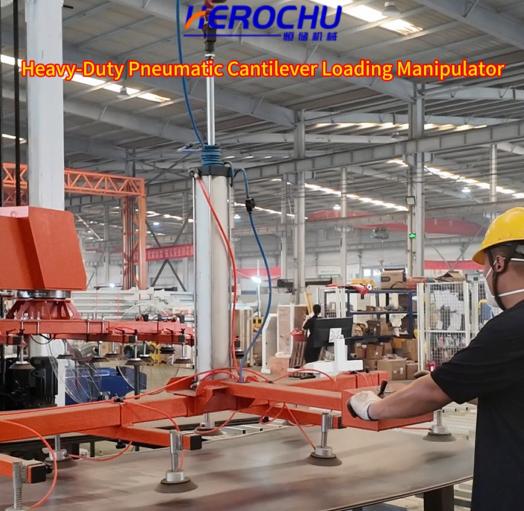

Fiber laser customers cut stainless steel, aluminum, and carbon steel—materials where a single drag mark can downgrade a finished part. The manipulator carries eight vacuum cups, each 200 mm in diameter, distributed across the boom to balance the load and prevent edge sag on large-format plates. The cups grip the sheet face without mechanical clamps, so there are no jaws to dent the perimeter and no slings to bend the center. When the sheet reaches the bed, vacuum releases on command and the plate settles into position without scraping across the support slats. This non-marring grip matters most on polished stainless and brushed aluminum, where rework costs quickly exceed the price of the raw plate.

Technical Specifications

The two configurations cover the standard plate sizes that populate most fiber laser workshops. The HC-RP3015-300 handles the 3000×1500 mm stock that dominates general fabrication, while the HC-RP4020-500 extends coverage to 4000×2000 mm plates at a 500 kg load ceiling—large-format stock typically reserved for heavy structural and trailer components. Both models share the same 220° rotation, 700 mm stroke, and 3600 mm column and boom, so workshops can standardize operator training and maintenance procedures across both units.

The Loading Cycle in Practice

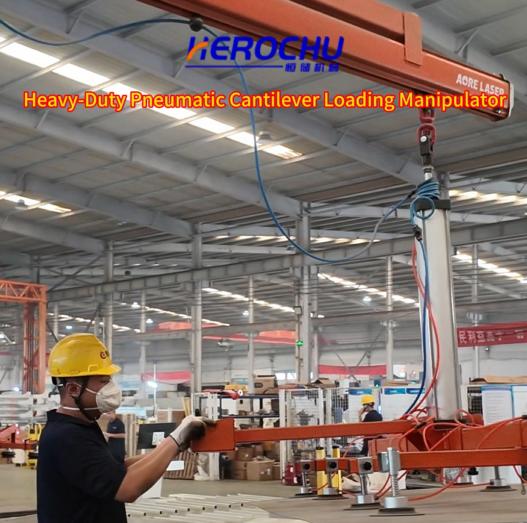

A typical cycle begins with the operator positioning the boom over the source stack. Vacuum engages, the eight cups seal against the sheet, and the manipulator lifts the plate clear of the stack. The 220° rotation angle lets the arm swing the sheet from a storage zone beside or behind the laser into the cutting envelope without repositioning the column. A 700 mm lifting stroke provides the vertical travel needed to clear machine guards and deposit the sheet at the correct bed height. Because the motion is balanced and guided, the operator can stop the sheet at any intermediate position—an essential capability when aligning the plate against the bed’s reference pins.

Safety Built Into Every Cycle

Heavy plate handling carries inherent risk, and the manipulator is designed to contain that risk rather than depend on operator vigilance alone. An emergency air-cut protection system retains vacuum if compressed-air supply is interrupted, preventing a loaded sheet from dropping unexpectedly. The lightweight, modular structure keeps the moving mass manageable, and the balanced cantilever means a single operator can guide a 500 kg plate with minimal physical effort. Together these features reduce the strain injuries and dropped-load incidents that disrupt fiber laser cells and drive up labor and insurance costs.

Versatile Material Compatibility

Although optimized for fiber laser feeding, the manipulator handles the full range of flat stock a typical sheet metal shop processes: carbon steel, stainless steel, and aluminum. The vacuum cup layout accommodates polished, brushed, and mill-finish surfaces alike, and the modular boom allows the cup spacing to be reconfigured when a shop transitions between plate gauges or formats. This versatility protects the investment as product mix shifts over time.

Integrating With the Fiber Laser Cell

The manipulator is engineered to interface directly with the fiber laser bed rather than operate as an isolated lift. Its controlled descent matches the bed’s slat height, and the boom’s reach covers the full working envelope of both standard and large-format machines. For workshops pursuing unattended or lights-out operation, a dependable loading manipulator is the difference between a cell that runs continuously and one that stalls every time a new sheet is required. Paired with a storage tower or a simple rack, the manipulator sustains the steady feed rate the laser was designed to cut at.

Why Fabricators Standardize on Herochu

Fabricators choose the Herochu loading manipulator because it addresses the three forces that erode fiber laser profitability: slow loading, surface damage, and operator fatigue. The vacuum interface protects material quality, the rigid column-and-boom geometry protects positioning accuracy, and the pneumatic balance protects the workforce. When the loading step becomes as predictable as the cutting step, the entire fiber laser cell reaches the throughput it was specified to deliver.
