Gantry Type ASRS for Long Steel Pipes, Bars & Profiles

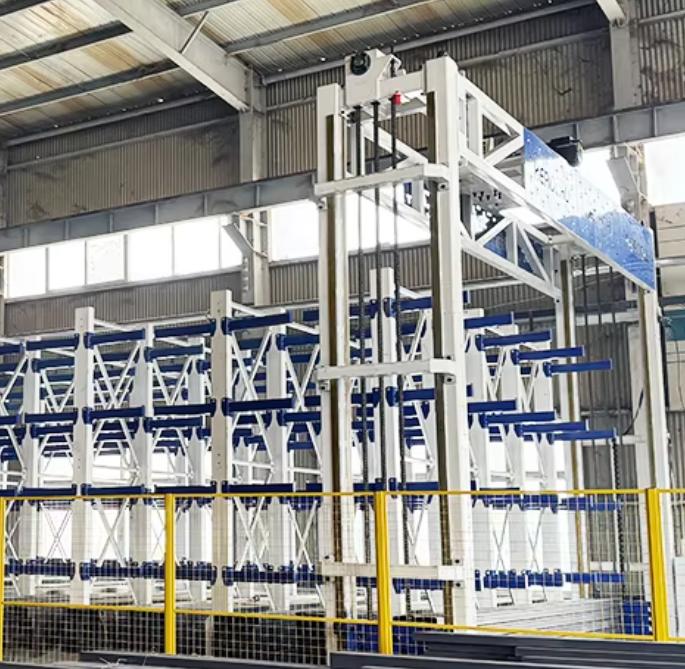

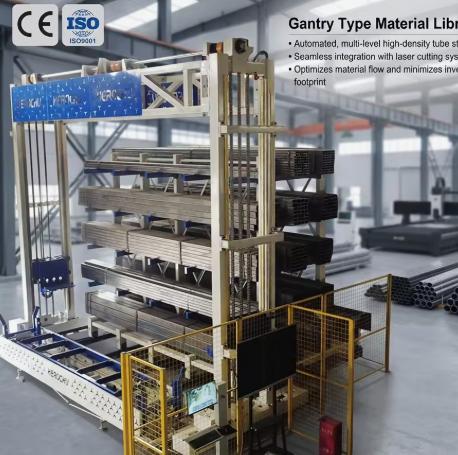

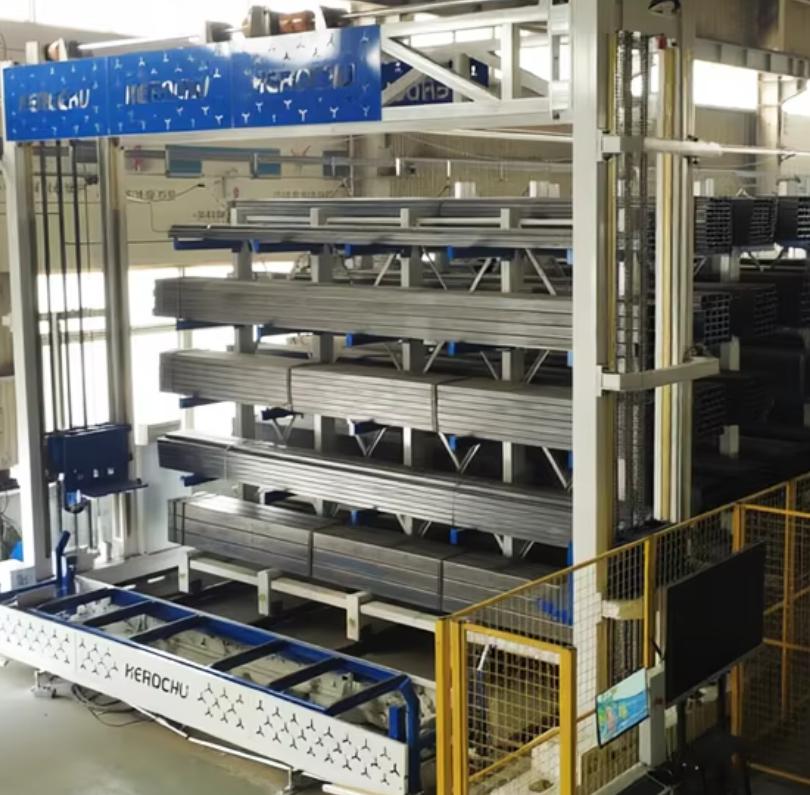

Automated storage and retrieval systems (ASRS) are most commonly associated with pallet goods, tote bins, and carton-level inventory. Applying ASRS technology to long steel pipes, bars, and profiles requires a different mechanical approach, because the stored units are not uniform boxes on standard pallets—they are heavy bundles of varying diameter, length, and surface condition. The gantry type ASRS from Herochu is purpose-built for this category of material, replacing the stacker-crane or shuttle architecture used in conventional ASRS with a heavy-duty gantry manipulator that engages long bundles directly.

The distinction matters. A pallet ASRS retrieves a 1,000 kg load on a standardized pallet; a long-product ASRS must retrieve a 5,000 kg bundle of steel pipe that may span 8 meters and flex under its own weight during the lift. The gantry architecture, with its rigid rail-mounted carriage and vertical lifting column, provides the structural stiffness and load engagement precision that long products demand.

Precision Positioning: ±2 mm Repeatability

Every retrieval cycle in the Herochu gantry ASRS returns to the correct bin location within ±2 mm of repeatability. This precision is not a cosmetic specification. It is the mechanical tolerance that allows the gantry fork to engage a pipe bundle resting in a bin cradle without operator intervention. If the positioning were less precise, the fork would require manual repositioning or a wider engagement clearance that risks dropping the bundle.

The repeatability is achieved through a closed-loop control architecture. Both the longitudinal travel axis and the vertical lift axis use absolute encoders that report real-time position to the PLC. The controller compares the reported position against the commanded position and adjusts the servo drive output to close the gap. Laser distance sensors provide an independent position verification, and the system recalibrates its home position against fixed reference marks at defined intervals. The result is a positioning performance that does not drift over months of continuous operation.

Fully Autonomous, 24/7 Unmanned Operation

The gantry ASRS from Herochu is engineered for fully autonomous operation. Once a storage or retrieval command is issued—whether from the touchscreen interface, the warehouse management system, or an integrated production order—the system executes the cycle without further human input. The gantry travels to the source bin, engages the fork, lifts the bundle, transports it to the destination, deposits it, and returns to its home or next-task position.

This autonomy enables 24/7 unmanned storage and retrieval, which directly reduces labor costs. In a conventional pipe warehouse, every bundle movement requires a forklift operator or crane driver. In shift operations that run overnight or through weekends, that labor cost accumulates rapidly. The gantry ASRS performs the same movements at 2:00 AM as at 2:00 PM, with consistent speed and without the fatigue-induced handling errors that damage material and delay orders.

The elimination of handling errors is a second-order benefit. When an operator manually retrieves a bundle from a multi-level rack, the risk of selecting the wrong bundle, dropping the load, or damaging adjacent material is non-trivial. An automated gantry, operating under PLC control with load verification at every step, does not make selection errors—the controller knows which bin it is addressing, and the load cell confirms the bundle weight before the lift completes.

Gantry Travel and Lift Performance

The throughput of an ASRS is determined by axis speed and cycle efficiency. Herochu specifies the gantry with a longitudinal traveling speed of 5 to 30 m/min and a vertical lifting speed of 5 to 15 m/min. These are variable speeds—the controller selects the appropriate rate based on the move distance and the load weight. For a short retrieval within the same tower, the gantry operates at reduced speed to avoid overshoot. For a long travel to a distant tower, it accelerates to full speed to minimize cycle time.

The acceleration and deceleration ramps are profiled to prevent load sway. When a 5,000 kg bundle of steel pipe is lifted from a bin, sudden acceleration would cause the bundle to swing, stressing the fork and the lifting mechanism. The PLC coordinates the axis acceleration curves to keep the load stable throughout the travel path, which preserves both the bundle integrity and the mechanical life of the gantry.

Handling Long Materials Up to 12 Meters

The defining capability of a long-product ASRS is the material length it can accommodate. The Herochu gantry system stores and retrieves long steel pipes, bars, and profiles up to 12 meters in length. The standard model configurations cover the most common requirements:

• HC-XG6053-6: 6,000 mm pipe length, five customizable levels, 3,000 kg per level, six towers
• HC-XG8055-8: 8,000 mm pipe length, five customizable levels, 5,000 kg per level, eight towers
• HC-XG8085-10: 8,000 mm pipe length, eight customizable levels, 5,000 kg per level, ten towers

For applications requiring longer material, the gantry rail and bin dimensions can be specified to accommodate 10-meter or 12-meter stock. The fork assembly is engineered with sufficient engagement depth to support long bundles without mid-span sagging, and the bin cradles are spaced to prevent the bundle from deflecting between support points during storage.

The system handles not only pipe but also bars and profiles—round bar, square bar, flat bar, angle, channel, and structural sections. The modular bin design accommodates the different cross-sections through adjustable cradle inserts, which means the same tower bank can store round steel pipe in one level and aluminum structural profiles in another.

80% Warehouse Space Savings Through Zero-Aisle Design

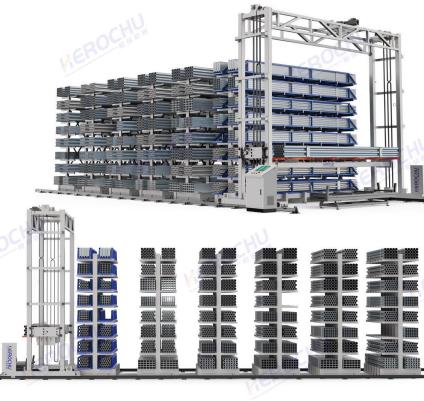

Long-product storage is particularly space-intensive in conventional layouts, because the aisle required to maneuver a forklift carrying an 8-meter bundle is substantial. The gantry ASRS eliminates that aisle entirely. The gantry serves every storage level from a single rail, which means there is no need for access aisles between storage rows. The storage towers can be placed back-to-back in a continuous bank, and the vertical design uses the full building height.

This zero-aisle, high-density vertical design can reduce the warehouse footprint required for long-product storage by up to 80% compared with conventional cantilever racking layouts. For a facility storing several hundred tons of steel pipe and bar, the recovered floor space can be repurposed for sawing, cutting, welding, or additional storage capacity—without expanding the building.

Industry 4.0: ERP and MES Data Integration

An ASRS that operates autonomously but in isolation delivers only part of its potential value. The Herochu gantry ASRS is designed for Industry 4.0 integration, with PLC control architecture that supports communication with enterprise resource planning (ERP) and manufacturing execution systems (MES) through standard industrial protocols.

When the MES issues a production order that calls for a specific length and grade of steel bar, the ASRS receives the retrieval command, locates the material in the digital bin map, retrieves the bundle, and stages it at the outbound station. The inventory record in the ERP is updated in real time as the transaction occurs. There is no manual material requisition, no separate stock transaction, and no delay between order release and material availability.

This integration also supports real-time digital inventory tracking. The PLC maintains a live database of every stored bundle—its location, material specification, weight, and storage timestamp. Stock-taking is a query, not a physical count. For operations with high inventory turnover or strict traceability requirements, this real-time visibility eliminates the reconciliation gap between the system record and the physical stock.

Fail-Safe Protection and Continuous Reliability

Autonomous operation demands embedded safety. The Herochu gantry ASRS integrates intelligent laser sensors and real-time load monitoring to protect both equipment and personnel. Laser scanners define a protective field around the gantry travel path; any intrusion halts the system according to a controlled deceleration profile. Load cells on the fork assembly verify bundle weight at engagement and confirm a clean release at deposition. During lifting, the force monitoring system detects obstructions or jams and halts the cycle before mechanical damage occurs.

The gantry is built for continuous duty. Sealed linear guides, heavy-duty gearboxes, and condition-monitored drive components are specified for multi-shift, multi-year operation. For facilities pursuing lights-out manufacturing or minimally staffed overnight operations, this reliability profile is the enabling condition—the ASRS must run unattended for hours at a time without intervention.

The Case for Gantry ASRS in Long-Product Warehousing

Conventional ASRS technology was not designed for the load weights, material lengths, and handling variability of steel pipe and bar inventory. The gantry type ASRS from Herochu is engineered specifically for this domain, with the positioning precision, load capacity, autonomous operation, and integration architecture that long-product warehousing requires. For steel service centers, pipe distributors, and metal fabrication operations, it is the storage infrastructure that converts warehouse space from a cost center into an operational asset.
