In the competitive landscape of modern CNC manufacturing, production efficiency is no longer defined solely by machine spindle speed or cutting power. The true bottleneck has shifted from the machining process itself to the material handling that precedes and follows it. Every minute a CNC machine sits idle while waiting for heavy steel plates to be loaded or finished components to be unloaded represents a direct loss in profitability. Herochu has engineered a comprehensive range of high load industrial material handling equipment specifically designed to eliminate this productivity gap, enabling manufacturers to achieve continuous, high-throughput CNC processing with minimal human intervention.
The High Load Handling Challenge in CNC Environments
CNC machining centers and fiber laser cutting systems process sheet metal at speeds that were unimaginable a decade ago. Yet in most fabrication shops, the loading and unloading of raw materials and finished parts remains a manual operation. Heavy steel plates weighing 300 kilograms to several tons must be maneuvered into position, aligned with precision, and secured—tasks that consume valuable machine time and expose operators to significant physical strain and safety risks. The operational reality is stark: a high-power fiber laser can complete a cutting program in minutes, yet manual material handling can keep the machine waiting for ten to twelve minutes between cycles.
Herochu’s high load industrial material handling equipment directly addresses this operational constraint through an integrated automation architecture that transforms standalone processing equipment into continuously productive manufacturing cells. By turning material handling into a parallel background process, Herochu systems minimize spindle and laser idle times to near zero, enabling automated, unattended operation across multiple shifts.
System Architecture and Core Capabilities
The Herochu high load handling solution functions as a highly synchronized sheet metal production unit, replacing multiple manual steps with a single, continuous automation loop. The system architecture integrates several specialized modules working in harmony to deliver reliable, high-capacity material transport.
At the foundation is a heavy-duty gantry structure that traverses the full working envelope with exceptional rigidity and load-bearing capacity. This bilateral gantry truss provides a smooth path of travel for robotic manipulators, spanning across multiple machines and enabling rapid, stable cross-factory transit. The structural reinforcement via dual or multi-beam frames ensures stability even when handling off-center loads, maintaining sub-millimeter repeatability of ±1 mm.

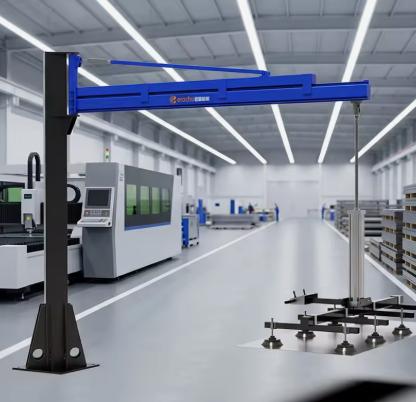

The loading and unloading composite truss manipulator serves as the dual-purpose handling unit, optimized for high-capacity lifting and sensitive sheet manipulation. With a rated payload of up to 3,000 kg, the system handles raw plates and heavy components weighing anywhere from 300 kg to 3000 kg safely and reliably. Every storage shelf supports individual loads of 3 tons to 5 tons, ideal for high-density sheet metal stocks.
Intelligent Control and Real-Time Precision
What distinguishes Herochu high load industrial material handling equipment is its intelligent control architecture. Built on a fieldbus network with absolute encoders, the system communicates seamlessly with upstream and downstream equipment—including tower silos, conveyors, and multiple CNC machines. The PLC control network oversees safety sensors, tracks sheet locations, and synchronizes perfectly with CNC software.
High-precision sensors automatically measure sheet position, dimensions, and thickness, feeding real-time positional data to the CNC system to adjust manipulator movement on the fly. The result is first-cut to last-cut time reduction of 28 to 42 percent in typical shift audits, independent of operator experience. Real-time system monitoring and automated self-diagnostics constantly track component health, enabling proactive maintenance and drastically reducing unexpected factory downtime.
Versatility Across Materials and Applications
Herochu high load industrial material handling equipment accommodates a vast spectrum of materials, from carbon steel and stainless steel to aluminum plates. The system handles sheet sizes from 3,015 by 1,500 millimeters up to 6,025 by 2,500 millimeters, providing the flexibility to process large-format sheets commonly used in construction, shipbuilding, and industrial machinery manufacturing.
For manufacturers seeking to unlock the true operating potential of their CNC machinery, Herochu delivers a strategic pathway toward fully autonomous manufacturing. The combination of high load capacity, intelligent control, and seamless integration positions Herochu as the definitive choice for high load industrial material handling equipment in CNC loading applications.
