Automatic Feeding Device & Laser Loading Machine for CNC Metal Processing

CNC metal processing cells—fiber lasers, punch presses, plasma tables, and combined cutting lines—are specified by their cutting speed, but the metric that governs real output is how continuously the machine is fed. A laser that cuts a 3000×1500 mm sheet in four minutes but waits six minutes for the next plate to be loaded is running at less than half of its theoretical capacity. The gap between cut time and load time is where profit is lost, and it is the gap the Herochu automatic feeding device and laser loading machine was engineered to close.

The Feeding Bottleneck in CNC Cells

Manual loading introduces variability no CNC program can absorb. Different operators load at different speeds, sheets land in slightly different positions, and the machine pauses while the operator verifies placement and clamps the perimeter. Across a shift, these micro-delays accumulate into hours of lost cut time. The automatic feeding device removes that variability by standardizing the loading motion: every sheet arrives at the bed in the same orientation, at the same position, on the same cadence, regardless of shift or operator.

Synchronized Loading for Continuous Cycles

The Herochu laser loading machine is designed to synchronize with the cutting cycle rather than wait for it. As the laser completes a sheet, the loading device stages the next plate in parallel, so the moment the cut sheet is cleared the fresh plate is ready to descend onto the bed. This overlap of loading and cutting is what turns a stop-start cell into a continuous flow. For operations pursuing lights-out production, a dependable automatic feeder is the enabling component—without it, the laser sits idle the moment the operator steps away.

Vacuum Suction for Unattended Sheet Transfer

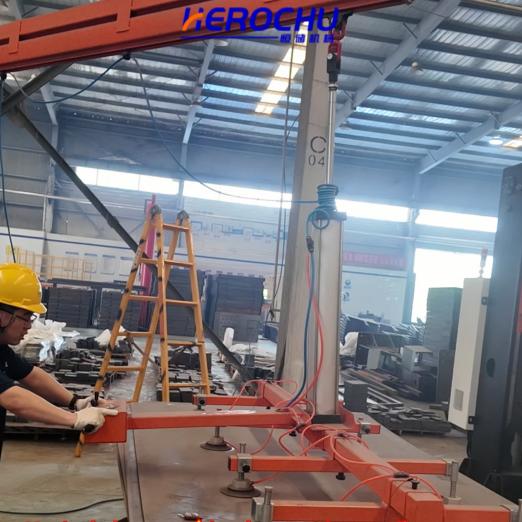

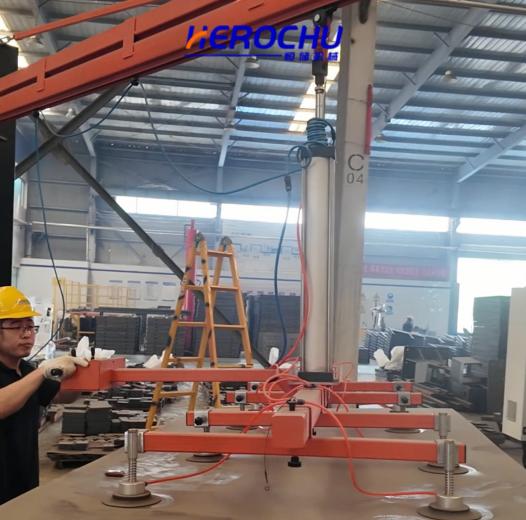

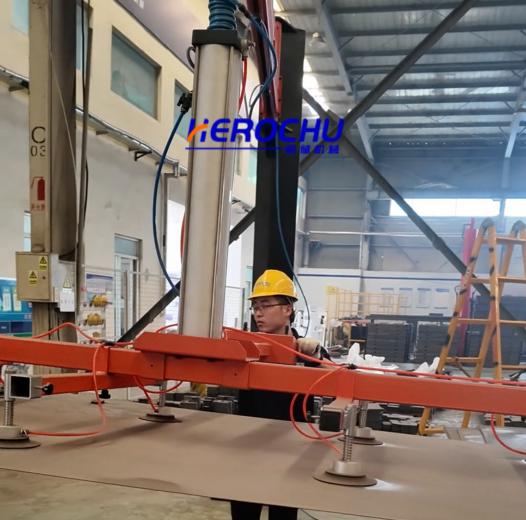

Automated loading demands a grip method that is both reliable and gentle. The Herochu loading machine uses an array of eight vacuum cups, 200 mm in diameter, to lift each sheet from the storage stack and transfer it to the bed. Vacuum gripping is preferred for automated cells because it does not require a human to position clamps, and because it grips the sheet face without marking the surface. On polished stainless and aluminum—the materials most sensitive to handling damage—the vacuum interface preserves the finish the CNC process is intended to produce.

Technical Specifications

The two configurations bracket the sheet formats that populate most CNC cells. The HC-RP3015-300 covers the 3000×1500 mm standard plate that dominates general fabrication, while the HC-RP4020-500 handles 4000×2000 mm large-format stock at a 500 kg load. Both share identical rotation, stroke, and column geometry, so a shop running both formats can apply consistent operating procedures and maintenance routines across both units.

Cycle Time Optimization

The value of an automatic feeding device is measured in recovered cut time. Consider a cell where manual loading consumes five minutes per sheet against a four-minute cut cycle. Automating the load and staging the next sheet in parallel can compress the effective cycle to approach the cut time itself, nearly doubling throughput on the same machine with no change to the cutting parameters. Because the loading motion is repeatable, the laser’s idle time between sheets stabilizes at its minimum, and the cell’s daily output becomes predictable rather than operator-dependent.

Integration With CNC and Laser Infrastructure

The loading machine is built to interface with the equipment already in the cell. Its boom reach and 220° rotation cover the working envelope of standard and large-format fiber lasers, and its 700 mm stroke matches typical bed heights. The vacuum system operates on the shop’s existing compressed-air supply, and the control sequence can be coordinated with the laser’s program so loading and cutting proceed as a single synchronized cycle rather than two separate operations. For cells that include storage towers or automated rack systems, the loader becomes the bridge between storage and cutting, sustaining the feed rate the tower was installed to support.

Safety in Automated Operation

Automated handling reduces operator exposure to heavy plate, but the automation itself must be safe. The Herochu loader incorporates emergency air-cut protection that retains vacuum on the loaded sheet if air supply is interrupted, preventing a drop during the transfer motion. The controlled descent matches the bed height to avoid impact loading on the machine slats, and the balanced boom holds position at any point in its travel, so a paused cycle does not drift. These features matter most in semi-unattended operation, where an unmonitored drop endangers both the machine and any nearby stock.

Material and Format Range

The loader handles the flat stock a typical CNC cell processes: carbon steel, stainless steel, and aluminum, in gauges and formats from 3000×1500 mm up to 4000×2000 mm. The vacuum cup layout accommodates polished, brushed, and mill finishes, and the modular boom allows cup spacing to be adjusted when the cell transitions between plate formats. This range lets a shop deploy the loader across multiple machines and product lines rather than dedicating it to a single cell.

From Manual Cell to Automated Flow

The decision to automate loading is usually driven by one of two pressures: the laser is cutting faster than operators can feed it, or the shop cannot sustain the staffing required for manual loading across three shifts. In both cases the Herochu automatic feeding device addresses the root cause rather than the symptom. It does not merely speed up loading—it standardizes it, so the cell’s output is governed by the machine’s capability rather than by the variability of the loading step.

The Herochu Standard for Automated Loading

Herochu built its laser loading machine to the same standard fabricators apply to their CNC equipment: repeatable motion, protected material, and dependable integration. For shops whose CNC cells are constrained by the loading step, the automatic feeding device is the component that converts an intermittent process into a continuous one, and that conversion is where the investment is returned through recovered cut time and stabilized daily output.
