500kg-1000kg Pneumatic Cantilever Lifter for Industrial Material Handling

Heavy plate handling has long been the province of overhead cranes and chain slings—reliable, but slow, imprecise, and rough on the material they move. When a fabricator needs to place a half-ton stainless sheet onto a laser bed, a welding fixture, or a storage slot within a few millimeters of tolerance, conventional lifting gear becomes the limiting factor in the process. The Herochu pneumatic cantilever lifter rethinks this step, substituting balanced pneumatic power and a cantilever arm for brute crane force, and turning heavy plate maneuvering into a controlled, single-operator task.

The Pneumatic Balance Principle

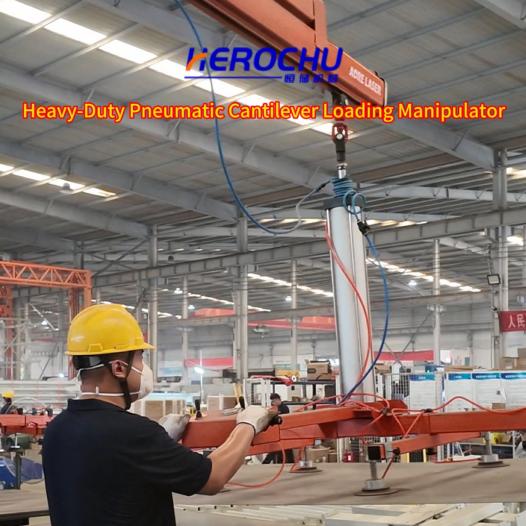

The core of the lifter is a pneumatic balancing system that counteracts the weight of the loaded sheet, bringing it to a near zero-gravity state at the end of the boom. Once balanced, the operator does not lift the plate so much as guide it. A 500 kg carbon steel sheet can be translated across a fabrication zone, rotated into orientation, and lowered onto a target surface with the effort of a push-button command. This shift from muscular effort to guided motion is what separates a pneumatic cantilever lifter from a simple hoist, and it is the reason fabricators deploy the Herochu lifter at workstations where cycle frequency and placement accuracy both matter.

Cantilever Geometry and Working Envelope

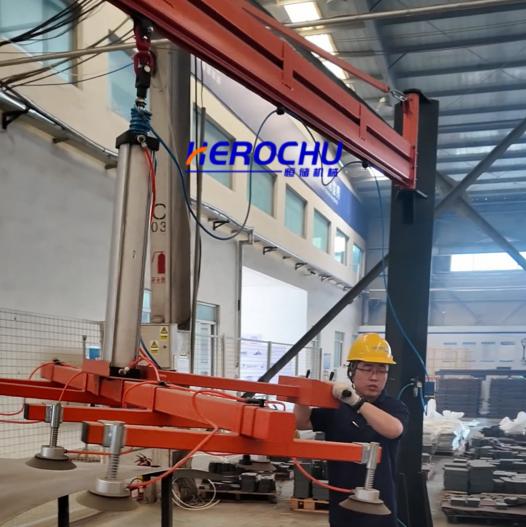

A cantilever arm provides reach that a vertical hoist cannot. The Herochu lifter’s boom extends 3600 mm from a 3600 mm column, giving the arm a wide sweep across adjacent machines and storage positions. The 220° rotation angle allows the loaded sheet to swing from a storage stack behind the machine into the cutting or processing envelope without repositioning the column base, and the 700 mm lifting stroke supplies the vertical travel needed to clear machine guards and descend onto beds of varying height. Because the boom is balanced rather than counterweighted with dead mass, the arm holds position at any point in its travel—operators can pause the sheet mid-cycle to verify alignment without fighting drift.

Load Capacity Scaled to the Task

The lifter is engineered for the plate weights that define real fabrication loads rather than laboratory samples. The HC-RP3015-300 handles sheets up to 300 kg at 3000×1500 mm, covering the format most shops run through their lasers and press brakes. The HC-RP4020-500 extends the envelope to 4000×2000 mm plates at 500 kg, the large-format stock used in structural fabrication, trailer bodies, and heavy equipment components. For operations handling bundled or stacked plate at the upper end of the range, the pneumatic balance scales accordingly—the same balanced control that stabilizes a 300 kg sheet governs a 500 kg plate, keeping operator effort constant regardless of load.

Vacuum Interface for Non-Marring Grip

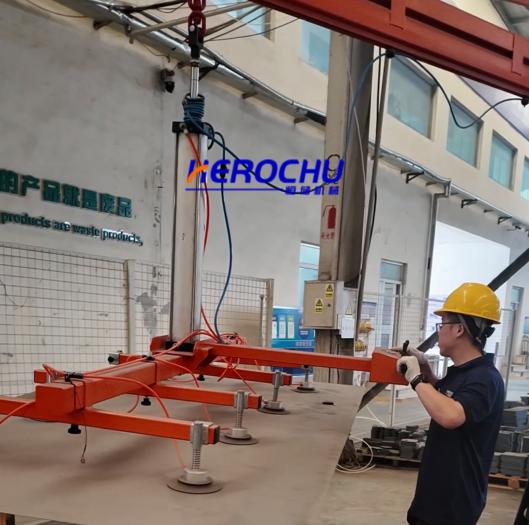

Gripping a polished stainless or aluminum plate with chains or magnets risks the very surface finish the customer is paying for. The Herochu lifter uses an array of eight vacuum cups, 200 mm in diameter, that seal against the sheet face and distribute the load across the plate to prevent sag and edge droop. The cups release on command, so the sheet settles onto the target surface without scraping across it. For shops cutting brushed stainless or anodized aluminum, this non-marring interface is often the single most important justification for the investment, because it eliminates the rework and scrap that mechanical clamping generates.

Emergency Air-Cut Protection

A pneumatic system depends on compressed air, and any air-dependent system must account for supply failure. The Herochu lifter incorporates an emergency air-cut protection system that maintains vacuum on the loaded sheet if the air supply is interrupted, preventing a sudden drop. This is not a convenience feature—in a cell running large plates at height, a dropped sheet endangers the operator, damages the machine bed, and scrapes the material. The fail-safe vacuum retention holds the load long enough for the operator to execute a controlled set-down, which is the safe-state response to any pneumatic interruption.

Ergonomics and Workforce Retention

Manual plate handling is a leading cause of strain injuries in fabrication shops, and the operators who bear that strain are the same experienced workers shops most need to retain. By transferring the lifting force to the pneumatic system, the Herochu lifter converts a physically punishing task into a guided operation a single operator can sustain across a full shift. The reduction in muscular load directly lowers injury rates and absenteeism, and it extends the working life of experienced operators whose expertise is hardest to replace.

Material and Format Versatility

The lifter is not restricted to a single material or plate size. Carbon steel, stainless steel, and aluminum all fall within its handling range, and the modular cup layout can be reconfigured as a shop’s product mix evolves. A workshop that begins by feeding a fiber laser can later deploy the same lifter at a press brake, a plasma table, or a welding station, protecting the capital investment as production priorities shift.

Deployment Scenarios

The pneumatic cantilever lifter fits wherever heavy flat stock must be moved with precision. Common deployments include loading fiber laser cutting beds, transferring plates between storage racks and processing machines, positioning sheets on welding fixtures, and feeding press brakes. In each case, the lifter replaces the two- or three-person crew and the crane or forklift that conventional handling requires, compressing the cycle time and removing the variability that manual placement introduces.

The Herochu Approach to Heavy Handling

The Herochu pneumatic cantilever lifter is built around a straightforward principle: heavy does not have to mean hard. By balancing the load pneumatically, gripping it with vacuum, and maneuvering it on a cantilever arm, the lifter gives a single operator the controlled command of plate that once required a crew and a crane. For fabricators whose throughput is constrained by the loading step rather than the cutting step, that shift in capability is where the return on the investment is realized.
