Industrial Automatic Cantilever Racking System for Long Material Handling

The handling of long materials—structural steel pipe bundles, aluminum extrusions, industrial shafts, and heavy profiles—requires storage solutions that go beyond the capabilities of standard pallet racking. Conventional racking systems simply cannot accommodate extended lengths, while basic floor storage creates safety hazards and disorganized workspaces. The Herochu Industrial Automatic Cantilever Racking System represents a significant advancement in material handling technology, combining smart automation with an efficient vertical layout to deliver a high-density, highly organized storage solution.

Automated Storage and Retrieval for Long Loads

The Herochu Industrial Automatic Cantilever Racking System functions as an automated storage and retrieval system (ASRS) specifically engineered for the unique demands of long-load handling. Unlike static cantilever racks that require operators to reach deep into storage bays—maneuvering forklifts through tight channels and navigating around obstructions—the Herochu system brings the material to the aisle instead of sending the operator into the rack.

The telescopic function is the differentiator. Cantilever arms extend on mechanically assisted chain drives, motorized controls, or linear guide rails, pushing the stored bundle out of the rack and into the working aisle. The operator then lifts the material with an overhead crane, hoist, or vacuum suction lifter without reaching into the rack. This makes top-down loading practical: long steel pipes can be lowered straight into position from above, something static racking blocks.

Dual-Sided Access and Vertical Density

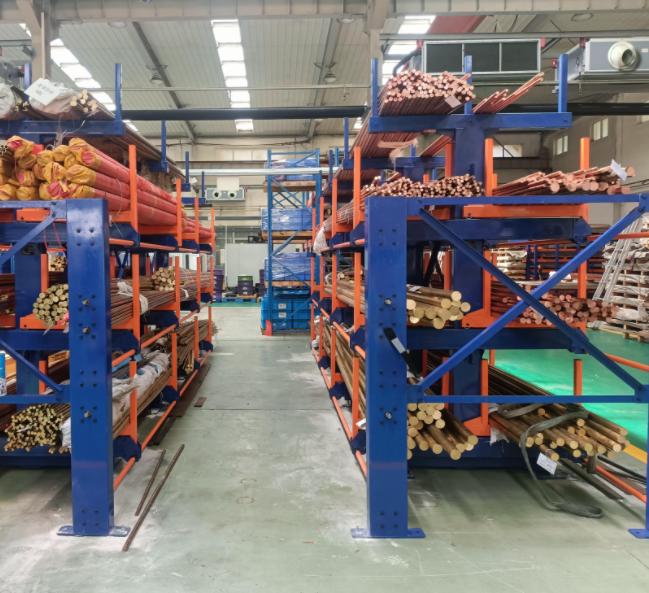

The Herochu Industrial Automatic Cantilever Racking System features dual-side discharge mechanisms that enable load access from both sides of the rack, keeping long bundles moving square without skewing during retrieval. Independent compartments on both sides store whole bundles alongside loose cut-offs categorized by diameter, wall thickness, or alloy grade. A default 600 mm clear vertical space facilitates sling passage and line-of-sight visual inventory checks.

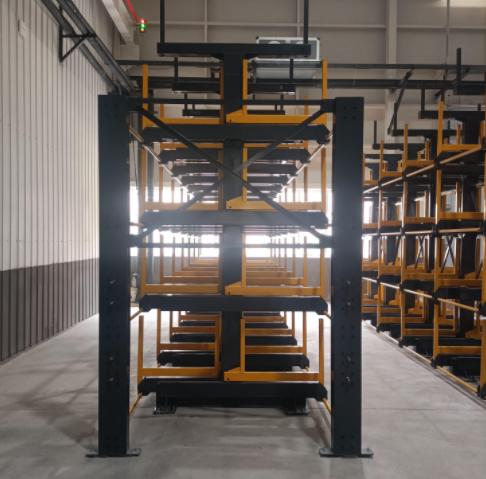

Vertical multi-tier storage reduces required warehouse footprint by over 70 percent compared to traditional ground stacking, while narrow aisle configurations shrink operating aisles by several meters. The system accepts material from 2 meters to 12 meters within a single unit, with cantilever length set between 400 mm and 1,500 mm to match specific stock lists.

Drive Configurations for Every Operational Need

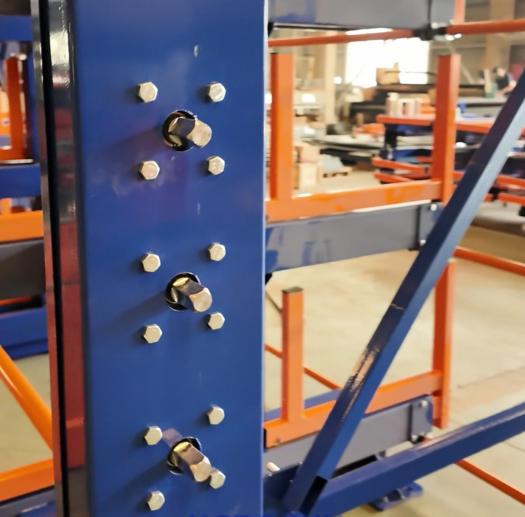

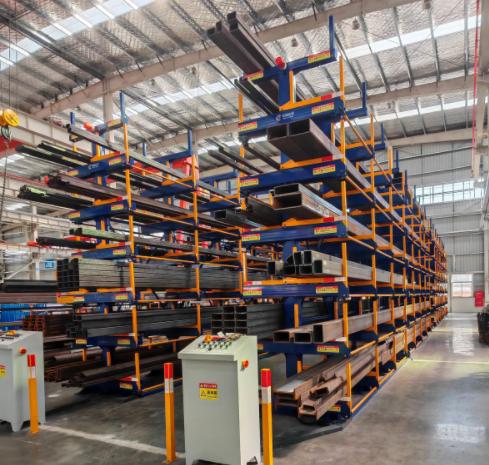

The Herochu Industrial Automatic Cantilever Racking System is available in both manual and electric drive configurations. The manual hand crank features a floor-level mechanical transmission that maintains positive holding power without electrical supply—ideal for unpowered halls or outage resilience. The motor-driven electric series offers automated, single-button operation with dedicated motors per level, allowing independent extension of specific tiers.

Each level is rated at 3,000 to 5,000 kg, and a single rack unit carries more than 10 tons of total material when fully loaded. Profiles up to 12,000 mm in length are fully supported across the arm structure.

Operational Benefits Across Industries

The Herochu Industrial Automatic Cantilever Racking System delivers measurable benefits across steel manufacturing, construction, and distribution sectors. Material damage is significantly reduced—the system eliminates dragging and surface friction during retrieval, preserving coated, galvanized, or polished pipe surfaces to minimize scrap and rework. Workplace safety improves through floor-level operator control, preventing falls, manual strain, and rolling bundle accidents.

Inventory turnover accelerates as search times are reduced to seconds per pick, and the system delivers full payback inside typical multi-year cost evaluation windows. Certified under CE, UE, and ISO 9001 standards, the Herochu Industrial Automatic Cantilever Racking System is a strategic investment for any facility handling long, heavy materials.
