Smart ASRS Sheet Metal Storage System 5000kg Vertical Tower

Floor space in a metal fabrication facility rarely comes cheap. Every square meter occupied by raw plate stock is a square meter unavailable for a laser cutter, a press brake, or an assembly station. Yet the material has to live somewhere. The tension between storage and production is one of the oldest problems in manufacturing, and it is precisely the problem that Herochu’s Customizable 5000kg Capacity Multi Tower Smart ASRS Vertical Metal Warehouse Storage System is engineered to solve.

This is not a glorified shelving unit. It is a computer-controlled material logistics platform that stores flat metal stock vertically across multiple towers, retrieves it on demand through a touchscreen interface, and maintains a live digital record of every plate’s dimensions, weight, and location. The system integrates directly with factory ERP and WMS software, turning what used to be a passive inventory into an active, queryable dataset.

Why Multi-Tower Architecture Matters

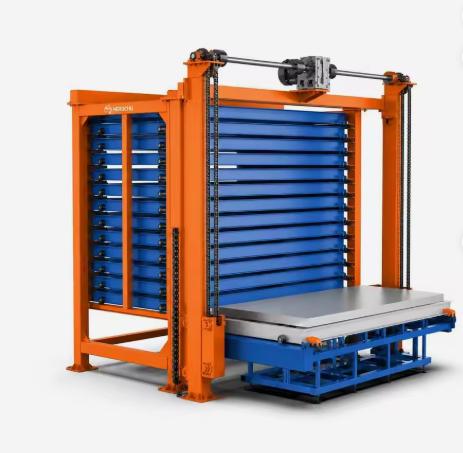

A single vertical tower solves the space problem for one category of material. A multi-tower configuration solves it for the entire workshop. Herochu’s modular design allows a facility to start with one tower and expand to two, three, or more as production volumes grow — without tearing up the existing floor plan or halting operations. Each tower operates as an independent vertical magazine, but a unified control system coordinates retrieval across all columns. An operator requesting a 4000×1500mm mild steel plate does not need to know which tower holds it. The system knows.

The practical consequence is that a fabrication shop can consolidate scattered stock from multiple floor locations into a single, compact vertical matrix. Each seven-level tower with customizable layer counts concentrates what would otherwise occupy hundreds of square meters of floor into a footprint smaller than a standard flatbed trailer.

Load Capacity and Structural Engineering

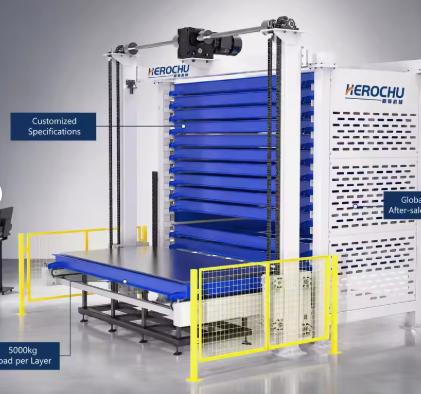

The numbers on the specification sheet are straightforward: up to 5000 kg per storage level, sheet dimensions from 3000×1500mm to 6000×2000mm, and layer counts from six to ten depending on the model. What those numbers do not convey is the engineering discipline behind them.

A tower that carries five metric tons per shelf across ten tiers is subject to vertical compression loads that would deform a conventional pallet rack within weeks. Herochu addresses this with primary columns fabricated from Q235B high-strength steel in box-section profiles, sized to resist both vertical compression under full payload and lateral deflection during simultaneous multi-level retrieval. The result is a structure that maintains dimensional stability even when every level is loaded to capacity and the lift mechanism is cycling at full speed.

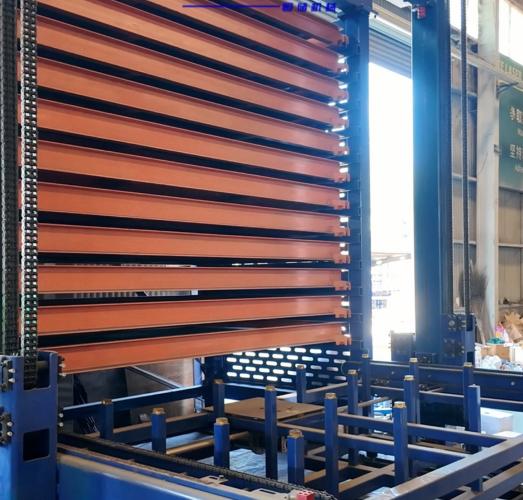

Each storage tray is an independent carrier. Plates rest flat on their designated trays, separated from one another. This detail matters more than it might appear. Stacked plates scratch, deform under point loads, and become impossible to inventory individually. Tray-based storage keeps every sheet isolated, protected, and individually addressable by the retrieval system.

PLC Touchscreen Control and Real-Time Inventory

The operator interface is a PLC touchscreen that serves as the single point of command for every storage and retrieval action. The workflow is deliberately simple: select the material by dimensions, thickness, or job number; the system locates the corresponding tray, brings it to the access opening, and presents the plate to the operator or to an automated loading mechanism. One-touch delivery, as Herochu describes it, is not marketing language — it is the actual sequence of events.

The deeper capability, however, is the inventory layer. Every tray entry is associated with a digital record that includes material dimensions, weight, quantity, and storage timestamp. The built-in weighing function updates this record automatically each time a plate enters or leaves the system. There is no separate stocktaking process, no manual reconciliation between physical inventory and the ERP database. The system displays real-time stock levels on demand and supports instant inventory counting at any point during the production day.

ERP and WMS Integration: The Software Architecture

Connecting a storage system to a factory ERP is often the step where ambitious automation projects stall. Proprietary protocols, incompatible data formats, and rigid middleware layers turn what should be a straightforward data exchange into a months-long integration effort.

Herochu’s approach reduces this friction by exposing a REST API and supporting direct database-level integration with major ERP platforms. The typical deployment path has the ERP pushing work orders to the ASRS and receiving inventory consumption updates through a middleware connector that Herochu configures during commissioning. The warehouse management system (WMS) runs locally on the tower’s control hardware and communicates with the plant’s ERP and MES layers in real time.

For production planners, this integration transforms material availability from a question that requires a phone call into a query that returns an answer in seconds. When a new job is scheduled, the system can confirm whether the required plate dimensions are in stock, reserve them against the work order, and queue them for retrieval — all before the operator reaches the machine.

Customization and Expansion

No two fabrication workshops have identical ceiling heights, floor layouts, or material mixes. Herochu’s manufacturing facility spans 18,000 square meters and produces each tower to order, with parameters including number of layers, number of towers, tray dimensions, load capacity per level, and clear space between trays all configurable to the customer’s specification.

A workshop that starts with a single six-layer tower can add a second tower when throughput demands it. A facility with an unusually high ceiling can specify ten or more layers to maximize vertical storage density. A shop that handles both standard 3000×1500mm stock and oversized 6000×2000mm plates can configure tray sizes within the same system. The modularity is not an afterthought; it is the architectural premise.

The Operational Calculus

The financial argument for automated vertical storage is not complicated. Floor space freed by vertical consolidation can be reallocated to production equipment that generates revenue. Material search time — the minutes per shift that operators spend locating and extracting plates — drops to near zero when retrieval is a touchscreen command. Inventory accuracy improves because the system, not a clipboard, tracks every movement. And the reduction in forklift traffic within the storage zone eliminates a category of workplace accidents that manual plate handling inevitably produces.

The Herochu multi-tower ASRS is, at its core, a system that converts storage from a cost center into a data-generating asset. The plates do not change. How they are stored, tracked, and delivered to production does.
