Automated Steel Plate Warehouse Vertical ASRS for Fabrication

Steel plate storage in a fabrication plant rarely gets the engineering attention it deserves. Plates arrive by truck, get unloaded by crane or forklift, and end up stacked horizontally on the shop floor or in horizontal racks. From that moment forward, every retrieval is a manual operation: locate the right plate, separate it from the stack, lift it safely, transport it to the cutting machine, and return the remaining plates to storage. This sequence repeats dozens of times per shift, consuming labor hours that could be spent on value-adding operations.

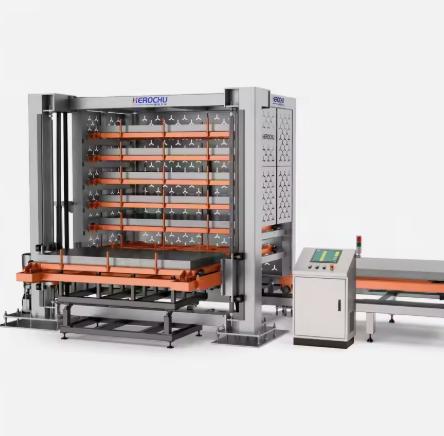

The Herochu Automated Steel Plate Warehouse Vertical ASRS for Fabrication was built to remove this labor overhead. Rather than treating storage as a passive holding function, the Herochu system makes storage an active, automated process that responds to production demand. A PLC touchscreen at the access station lets operators call up any plate in the system with a single input — the tower retrieves the correct tray, delivers it to the access opening, and holds it there while the plate is extracted for processing.

What distinguishes this from a simple vertical lift is the system’s integration with the fabrication workflow. The Herochu ASRS connects to the factory ERP and WMS systems, meaning it knows what material the production schedule requires, where that material is located within the tower, and how much remains available. When a cutting machine’s nesting program calls for a specific plate grade and thickness, that information flows through the ERP to the tower controller, and the plate arrives at the access point before the operator begins setup.

Robotic Handling for Unmanned Operation

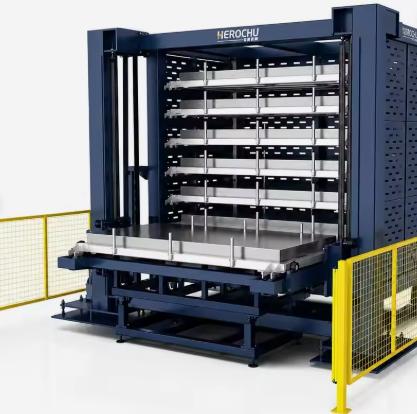

The Herochu system operates autonomously once configured. The lifting mechanism — built on a gear-and-rack drive with guided rails — positions trays at the access level without operator intervention. The extractor arm engages trays mechanically, transfers them to the loading and unloading conveyor, and returns empty trays to their designated positions. This autonomous operation enables the system to function in lights-out manufacturing environments where no operator is present during evening or weekend shifts.

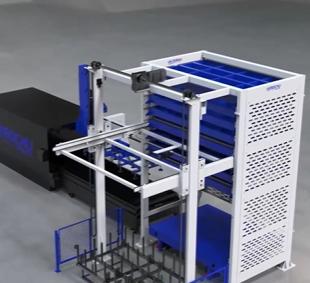

In unmanned factory operations, the Herochu vertical ASRS serves as the material supply node. A robotic cutting cell — laser, plasma, or waterjet — draws plates from the tower on demand. The system handles up to 1800 kg of material per handling cycle, with the structural framework designed for continuous-duty operation. The drive system rated for 5–15 m/min transfer speed sustains throughput across multi-shift production without thermal degradation or positional drift. Repeat positioning accuracy holds at ±2 mm across the full operating cycle, measured from the first tray of the shift to the last.

For shops moving toward Industry 4.0 or lights-out fabrication, this autonomy matters. The tower does not require a dedicated operator standing at a control panel. It responds to programmatic calls from the production management system, retrieves and stores material as scheduled, and logs every transaction to the WMS for full material traceability. The only manual involvement is the physical loading of incoming material onto trays at the access conveyor — a task that integrates with standard forklift or vacuum lifter workflows already present in the shop.

PLC Touchscreen Control and One-Touch Material Delivery

The operator interface on the Herochu system centers on a PLC touchscreen mounted at the access station. The display shows the full tower layout — every tray position, the material currently stored in each position, and real-time weight readings from the built-in load cells. Operators select a plate by grade, thickness, or tray number; the system executes the retrieval command and delivers the tray to the access opening.

One-touch delivery is not a marketing phrase. The classification storage logic programmed into the PLC lets operators define storage rules by material size, thickness, and type. When a new plate arrives for storage, the system assigns it to the correct tray based on these parameters. Retrieval follows the same logic — the operator selects the material specification needed, and the tower identifies the matching tray without requiring the operator to know its physical location. This separation between material specification and physical storage position reduces the cognitive load on operators and eliminates the retrieval errors that occur when plates of similar appearance are confused in horizontal stacks.

The PLC also manages the real-time inventory display. Material dimensions, weight, and quantity update on the screen as trays are stored or retrieved. The weighing function provides an independent verification of plate identity — if a tray registered as holding a 1200 kg plate reads 1180 kg, the system flags the discrepancy for operator review. This weight-based verification catches misidentified material before it reaches the cutting machine, preventing the kind of specification errors that result in scrapped parts and rework costs.

Factory-Compatible Loading and Unloading Integration

A storage system that cannot accept material from existing shop equipment creates a bottleneck rather than a solution. The Herochu vertical ASRS is engineered to integrate with standard factory material handling equipment — forklifts, overhead cranes, vacuum lifters, and chain slings. The loading and unloading conveyor at the access station features adjustable legs and leveling feet, allowing height alignment with existing conveyor lines, roller tables, or machine infeed stations.

Incoming plates arrive at the access conveyor by forklift or crane, are positioned on the tray, and the system automatically stores the tray in the assigned position. Outgoing plates follow the reverse path: the tower delivers the tray to the access conveyor, and the plate is picked off by the downstream handling equipment — whether a vacuum lifter feeding a laser cutting machine, a magnetic crane loading a plasma table, or a manual chain sling for a press brake blank.

The adjustable conveyor height range accommodates different equipment deck heights without requiring modifications to existing machines or conveyors. The leveling feet compensate for floor irregularities, ensuring the conveyor remains perfectly aligned with the tower access opening — a critical factor in maintaining the ±2 mm tray transfer repeatability that defines the system’s handling precision.

ERP and WMS: Building the Intelligent Warehouse

The Herochu system ships with an intelligent WMS warehouse management system embedded in the controller. This WMS handles the immediate storage operations: tray assignment, position tracking, weight monitoring, and access logging. It supports real-time inventory query — any operator with access credentials can check what material is in the tower, where it is located, and when it was stored.

Beyond the standalone WMS, the system connects to the factory ERP. This connection transforms the storage tower from a localized storage device into a node in the factory’s enterprise data architecture. ERP integration enables on-demand stocktaking without physical counting — the ERP system pulls current inventory data from the tower whenever a stock status report is needed. Purchasing receives consumption data to drive reorder decisions. Production planning sees material availability in real time, scheduling machine operations against confirmed stock rather than projected estimates. The integration of production, warehousing, and logistics data through the ERP connection provides the foundation for intelligent manufacturing decisions.

Batch traceability and expiration warnings extend the WMS functionality for shops working under quality management systems. Each plate’s storage record links to its heat number, supplier certificate, and remaining quantity. The system tracks material age and flags plates approaching treatment expiration — a feature that prevents the use of degraded material in critical applications and supports ISO 9001 and ASME material control audit requirements.

Capacity and Configuration Flexibility

The Herochu automated steel plate warehouse is available in four standard configurations, each matched to different plate size and capacity requirements. The HC-S3015-63 handles 3000×1500 mm sheets across six levels at 3000 kg per level. The HC-S4015-85 processes 4000×1500 mm plates across eight levels at 5000 kg per level. The HC-S4020-85 covers 4000×2000 mm plates with the same layer and load configuration. The HC-S6020-105 manages the largest format — 6000×2000 mm sheets across ten levels at 5000 kg per level.

Every parameter — number of layers, number of towers, tray dimensions, load capacity, and the 350 mm clear space between trays — can be customized to match the workshop’s plate portfolio and floor layout. The Herochu engineering team sizes each tower to the shop’s actual material list, ensuring the system handles the full range of plate sizes and thicknesses the fabricator processes rather than a subset that fits standard dimensions.

The Automated Steel Plate Warehouse Vertical ASRS for Fabrication from Herochu replaces manual plate handling with an autonomous, ERP-integrated system that delivers material on demand, tracks inventory in real time, and operates continuously across multi-shift production. By connecting storage directly to the fabrication workflow through PLC control, WMS intelligence, and ERP data exchange, it eliminates the time, labor, and accuracy penalties that conventional horizontal storage imposes on every plate retrieval cycle.
