Gantry-Type Pipe ASRS Warehouse Storage System: High-Density Automated Storage for Industrial Long Materials

Manufacturers handling long-format pipes and structural profiles face a storage problem that conventional racking was never designed to solve. Bundles of round steel tube, square structural sections, and alloy bars arrive in lengths that standard pallet racks cannot support, and floor-stacked horizontal storage consumes facility space at a rate that strangles production expansion. The Gantry-Type Pipe ASRS Warehouse Storage System from Herochu was developed specifically for this challenge, combining heavy-duty gantry retrieval mechanics with vertical high-density racking to deliver automated storage built for industrial-scale long materials.

This article examines the engineering behind the system, its operational advantages over conventional storage, and the technical specifications that make it suitable for demanding manufacturing environments.

The Core Limitation of Conventional Pipe Storage

Standard warehouse racking is optimized for palletized goods. Pipes, tubes, and long profiles do not fit that model. A six-meter bundle of steel pipe resting on a pallet rack either overhangs the bay, creating a load instability and safety risk, or requires custom cantilever extensions that still leave the material exposed to manual forklift handling.

The result is a storage workflow that depends on skilled forklift operators for every retrieval, offers no live inventory visibility, and consumes floor area proportional to inventory length rather than quantity. When a facility stores pipes up to 8000 mm or longer, the footprint required for flat horizontal storage can exceed the footprint of the production equipment it feeds.

The Gantry-Type Pipe ASRS from Herochu reframes the problem. Instead of spreading material across the floor, it stores bundles vertically in engineered rack towers and uses an automated gantry picker to handle retrieval with precision no manual operation can match consistently.

Gantry-Type Architecture: How the System Is Built

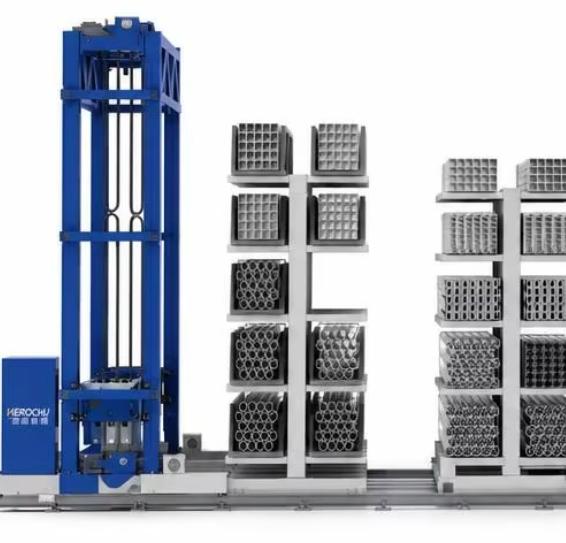

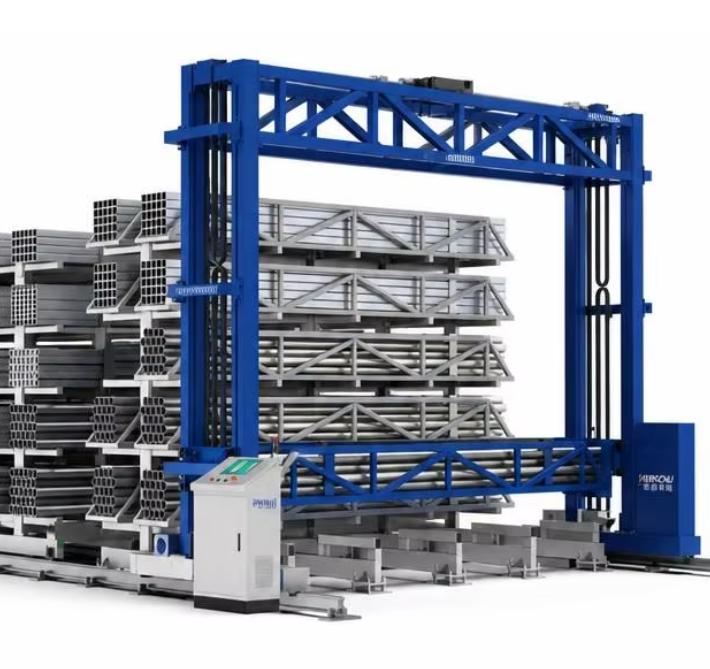

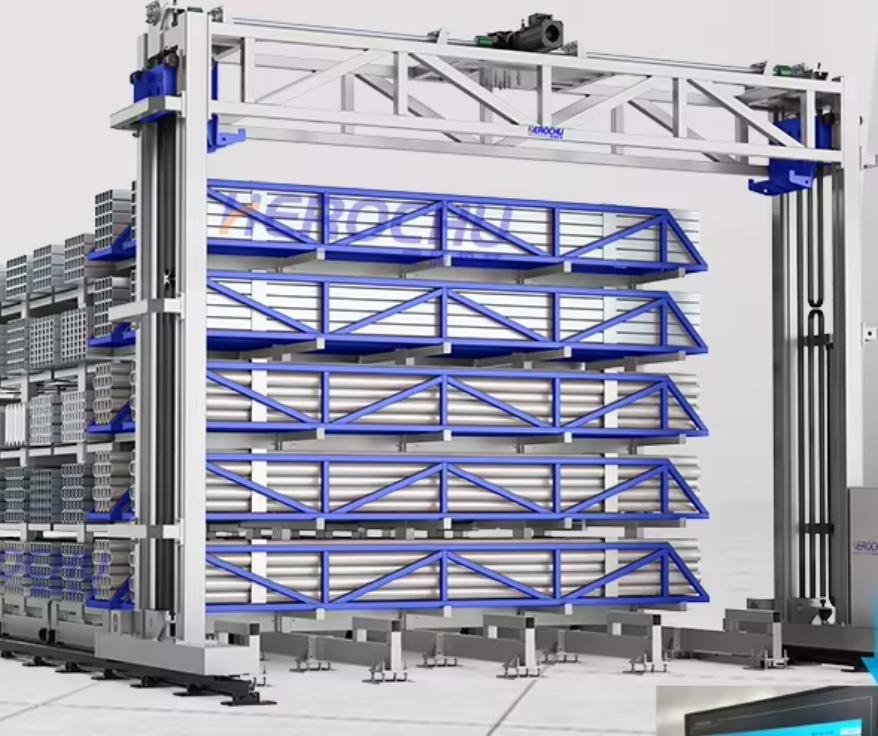

The system consists of four integrated components: a loading and unloading gantry system, profile material racks, material frames, and precision guide rails. The gantry structure is the operational core. A heavy-duty picker travels along ground-mounted rails, positioning itself at the correct rack tower before extracting or depositing a bundle.

The ground rail architecture is a deliberate engineering choice. By mounting the travel rails at floor level and designing mobile rack towers that share a single retrieval aisle, the system eliminates the redundant aisles that conventional static racking requires between every row. That shared-aisle logic is what delivers the dramatic footprint reduction. Where a static rack farm might dedicate 40 percent of its floor area to access aisles, the gantry-type system compresses that to a single operating lane.

Each rack tower is built with a high load-bearing structure. Layers are customizable in number and spacing, and each layer supports up to 5000 kg of concentrated bundle weight. That capacity rating is not a theoretical ceiling. It is the working load the structure is engineered to hold cycle after cycle without deflection that would compromise adjacent slots.

Technical Specifications That Define Performance

The Gantry-Type Pipe ASRS from Herochu is rated for parameters that match real industrial workloads. The system is purpose-built for long-format materials, supporting profiles and pipes up to 8000 mm in length with a per-layer load capacity of 5000 kg.

Performance specifications include:

• Maximum material length: Up to 8000 mm
• Layer load capacity: Up to 5000 kg per layer
• Exchange and lifting speed: 5–15 m/min
• Positioning accuracy: ±2 mm repeat accuracy
• Control system: PLC with touch screen interface
• Rack layers: Customizable to facility requirements
• Storage units: Customizable based on inventory profile
• Structural material: High-strength steel with heavy-duty gantry frame

The gantry picker operates at an exchange and lifting speed of 5–15 m/min, ensuring rapid material retrieval for downstream production lines. For facilities feeding high-speed laser cutting cells or automated saw lines, that retrieval pace eliminates the bottleneck that manual forklift handling creates at peak production demand.

The ±2 mm positioning accuracy is maintained through every cycle. That consistency is what allows the system to interface directly with automated downstream equipment. When a laser cutting cell expects a specific bundle at a specific position, the gantry delivers it to that position every time, without the variability inherent in manual placement.

Ground Rail Technology and Space Recovery

The ground rail design does more than reduce aisle count. It distributes the structural load of the loaded gantry directly to the warehouse floor, eliminating the need for elevated support structures that complicate facility layout. That ground-level load path also simplifies installation in existing facilities, where the floor slab is typically the most structurally reliable element available.

The density gain is measurable. By stacking layers vertically and sharing a single retrieval aisle, the system reclaims over 50 percent of the floor space previously consumed by static horizontal pipe storage. For facilities operating in high-rent industrial zones, that recovered footprint often pays for the system investment faster than any other single factor.

The recovered space is immediately productive. It can absorb additional processing equipment, widen material handling lanes for safety compliance, or simply provide the buffer needed to increase inventory volume without expanding the building.

Structural Integrity Under Heavy Concentrated Loads

Long-format steel pipe and structural alloy sections generate concentrated loads that stress rack structures in ways distributed pallet loads do not. A bundle of round steel pipe weighing 5000 kg resting on a single layer places all of that force on two or three contact points along the rack beam. Over time, inadequately engineered racks deflect under that load, and the deflection compounds as layers above add their own weight.

The rack structure in the Gantry-Type Pipe ASRS from Herochu is engineered against that failure mode. The high-strength steel frame and beam design distribute concentrated bundle weight across the structural member, preventing the point-loading deflection that degrades conventional racking. The system holds its rated 5000 kg per layer over years of continuous loading cycles without the dimensional drift that makes poorly built racks unsafe.

This structural integrity also prevents material damage. When rack layers remain dimensionally stable, stored pipes do not sag into the slot below, surface contact damage drops, and the material arrives at the production line in the same condition it entered storage.

PLC Control and Real-Time Inventory Management

The gantry picker is driven by a PLC control system with a touch screen interface that handles both operational commands and inventory management. Warehouse staff select a storage slot, and the system executes the retrieval cycle automatically, positioning the gantry, extracting the bundle, and delivering it to the load-out station.

The same control system maintains a real-time digital inventory record. Every storage and retrieval transaction updates the inventory database, giving production planning teams a live view of what material is in stock, where it is located, and how much remains. That data feed eliminates the manual cycle counting that consumes labor hours and still produces inaccurate results in conventional pipe storage operations.

For facilities integrating the Gantry-Type Pipe ASRS into a broader manufacturing execution system, the PLC inventory data can feed upstream planning tools, supporting just-in-time material delivery to production lines and reducing the safety stock buffer that ties up working capital.

Application Environments

The Gantry-Type Pipe ASRS Warehouse Storage System from Herochu is engineered for facilities where long-format material handling is a defining operational challenge:

• Steel service centers storing and retrieving bundled round, square, and rectangular pipe
• Structural fabrication shops handling long steel sections for welding and assembly
• Laser cutting operations requiring timed delivery of pipe and profile bundles to cutting cells
• Aluminum profile distributors managing mixed SKU inventory across multiple lengths
• Manufacturing plants integrating automated production lines with just-in-time material feed

For each of these environments, the system addresses the same three deficits: excessive floor consumption, slow manual retrieval, and unreliable inventory data. The gantry-type architecture resolves all three through vertical density, automated precision retrieval, and digital stock accountability.

Configuration Flexibility

No two pipe storage operations have identical inventory profiles. The Gantry-Type Pipe ASRS from Herochu is engineered to adapt rather than impose a fixed geometry. The number of rack layers, the quantity of storage units, and the slot dimensions are configured to the facility’s material mix. A facility storing predominantly 6-meter steel round pipe runs a different configuration than one handling mixed aluminum extrusions and alloy bars.

That configurability extends to the control logic. Slot assignments can be redefined in the PLC system as the production mix shifts, so the rack adapts to new material types without structural modification.

Summary

The Gantry-Type Pipe ASRS Warehouse Storage System from Herochu is a purpose-built answer to the long-format material storage problem. By combining heavy-duty gantry retrieval, ground rail architecture, vertical high-density racking, and PLC-driven inventory management, it delivers what conventional pipe storage cannot: density, speed, precision, and live stock visibility in a single integrated system.

For manufacturers evaluating how to scale pipe and profile storage without scaling floor consumption, the gantry-type architecture offers a structurally sound, operationally efficient, and digitally accountable path forward. The recovered space, the reduced labor dependency, and the inventory accuracy gain together form a return profile that static racking cannot approach.
