Automatic Pipe Racking ASRS for Smart Warehousing

When long-format pipes and structural profiles pile up across a facility, the cost goes far beyond clutter. Aisles narrow, forklift traffic congests, and stock counts turn into guesswork. For manufacturers handling round tubes, square pipes, and alloy sections in serious volumes, a fragmented storage strategy quietly drains margin every single shift. The Automatic Pipe Racking ASRS for Smart Warehousing from Herochu was engineered to close that gap, converting disorganized long-stock yards into a dense, digitally managed storage center that runs with minimal manual intervention.

This article breaks down how the system works, what it delivers on the floor, and why facilities handling heavy long-format inventory are shifting away from static racking toward automated vertical storage.

Why Conventional Pipe Storage Fails at Scale

Traditional pipe storage leans on horizontal stacking, floor-mounted A-frames, and cantilever racks loaded by forklift or overhead crane. That approach functions at low volume, but it scales poorly. As stock variety grows, so does the time spent locating the right bundle, digging it out, and returning the rest. Materials suffer too. Stacking round pipes on top of each other concentrates weight at contact points, and over weeks of storage that pressure causes visible sagging and surface deformation, particularly in thinner-walled tubes and aluminum profiles.

The operational drag is just as costly. Manual retrieval is slow, labor-dependent, and risky. Workers maneuvering 8-meter bundles through tight aisles are a safety exposure every facility manages. And because there is no live inventory feed, production planning teams work from spreadsheets that drift out of sync with what is actually on the rack.

The Automatic Pipe Racking ASRS from Herochu replaces that model with a structurally engineered, software-driven alternative designed for manufacturers who need density, speed, and accountable stock records in one package.

How the Automatic Pipe Racking ASRS Works

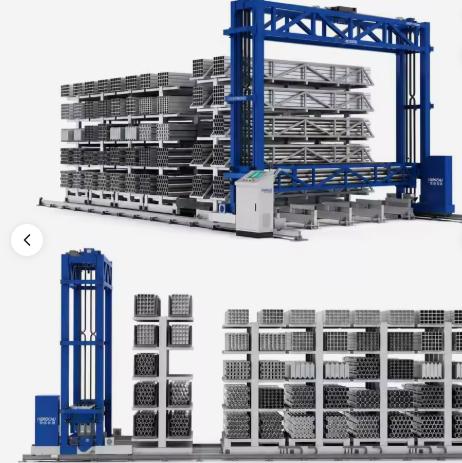

At its core, the system pairs a vertical multi-level rack structure with an automated retrieval mechanism that travels the full rack length. Pipes and profiles are placed into dedicated horizontal storage slots organized by diameter, shape, and bundle weight. Each layer is engineered for a loading capacity of up to 5000 kg, making the rack suitable for heavy bundles of steel round pipe, square tubes, and rectangular structural profiles.

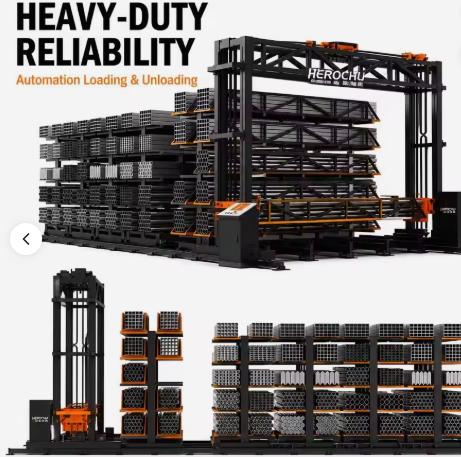

Retrieval is handled by a top-mounted lifting platform with an overhead traveling car that runs along guide rails spanning the rack. Instead of a forklift operator hunting for the right bundle, the PLC touch screen interface lets warehouse staff call up a specific slot with one-key operation. The system positions the overhead car, lifts or lowers the platform to the target layer, and extracts the material with repeat positioning accuracy of ±2 mm.

That precision matters more than it sounds. When the production line downstream is a laser cutting cell or an automated saw, feeding the exact bundle at the exact time keeps the line running without buffer stock piling up between operations.

Space Optimization: The Vertical Density Advantage

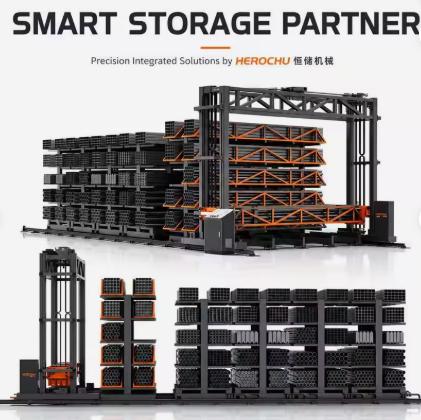

The structural logic of the system is vertical. Instead of spreading racks across the floor, the Automatic Pipe Racking ASRS builds upward, stacking layers of dedicated storage slots into a compact tower footprint. Because mobile rack towers share a single retrieval aisle, the floor area consumed per stored meter of pipe drops dramatically compared with conventional static racking.

Facilities that have migrated from flat horizontal storage to this vertical configuration routinely reclaim over 50 percent of their previous storage footprint. That recovered space is not theoretical. It becomes room for additional processing equipment, wider forklift lanes, safer pedestrian walkways, or simply the ability to take on more inventory without leasing additional warehouse space.

For urban or high-rent industrial zones where every square meter carries overhead, the density gain is the primary financial argument for the system. It is cheaper to build upward than to build outward.

Technical Performance Built for Industrial Workloads

The Automatic Pipe Racking ASRS from Herochu is built around parameters that match real factory demands, not lab conditions. The hoist lifting speed runs at 40 m/min, and the overhead traveling car translates at 100 m/min along the rack length. In continuous daily operation, that translates to storage and retrieval cycles that keep pace with high-throughput production lines without bottlenecking.

Key technical specifications include:

• Maximum material length: Up to 12000 mm, accommodating the longest standard structural profiles and pipe bundles

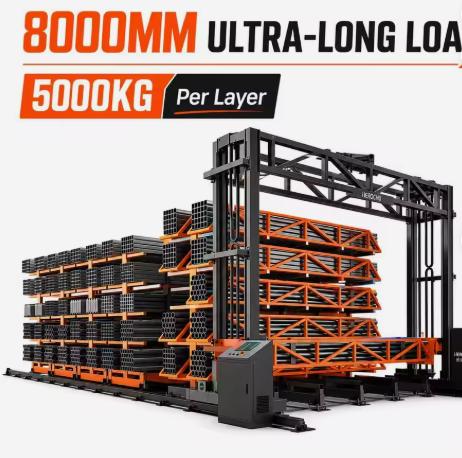

• Layer load capacity: Up to 5000 kg per layer, engineered for heavy bundles of steel and alloy sections
• Positioning accuracy: ±2 mm repeat accuracy, ensuring consistent retrieval and placement
• Hoist speed: 40 m/min
• Overhead car translation speed: 100 m/min
• Control system: PLC with touch screen interface, one-key operation
• Slot configuration: Flexible planning by diameter, shape, and bundle type

The rack structure itself is engineered from heavy-duty steel with high load-bearing capacity. The number of layers and the quantity of storage units are customized to the facility, meaning the system scales with the inventory profile rather than forcing the facility to adapt to a fixed rack geometry.

Digital Inventory Management: From Guesswork to Live Data

The PLC-based control system does more than drive the lifting platform. It maintains a real-time digital inventory of every slot in the rack, recording what is stored, when it was placed, and when it was retrieved. For warehouse teams managing hundreds of material SKUs, that live record eliminates the manual stock counting that eats hours of labor each week.

For production planning, the implications are immediate. When the inventory system knows exactly how many bundles of a specific pipe diameter are in storage, procurement can order against real stock rather than inflated safety margins. That reduces tied-up capital in excess inventory while ensuring the line never stalls for a missing material.

The data layer also supports traceability. In sectors where material lot tracking is required, the system records which bundle went to which production order, creating an audit trail without additional paperwork.

Slot Flexibility for Mixed Material Inventory

Manufacturing facilities rarely store a single pipe type. The same warehouse may hold round steel pipe, square structural tubing, rectangular aluminum profiles, and alloy bars in overlapping quantities. The Automatic Pipe Racking ASRS handles this through flexible slot planning. Slots adapt to different pipe diameters and profile shapes, and the layout can be reconfigured as the production mix changes.

That flexibility protects the investment. A facility that shifts from predominantly steel pipe to a higher aluminum profile mix does not need to replace the rack. It redefines the slot map in the control system and adjusts the dividers accordingly.

Engineered for Long-Term Structural Integrity

Concentrated loads of steel and structural alloy sections place serious demands on rack structure. Each layer of the Herochu system is engineered to support up to 5000 kg without deflection that would compromise the slot above or below. The structural design prevents the warping and sagging that degrades conventional racking over years of heavy use.

This is not a minor detail. When a rack sags, the slots lose their dimensional accuracy, the retrieval mechanism struggles to position correctly, and eventually the entire storage section becomes unsafe for loaded operation. The heavy-duty construction of the Automatic Pipe Racking ASRS is designed to hold rated load over years of continuous cycles without structural degradation.

Who Benefits Most from This System

The system is purpose-built for facilities where long-format material handling is a daily, high-volume operation. That includes:

• Structural steel fabrication shops handling long pipe and tube stock
• Laser cutting service centers feeding high-speed cutting cells
• Aluminum profile extrusion distributors managing mixed SKU inventory
• Metal service centers storing and retrieving bundled round, square, and rectangular sections
• Manufacturing plants integrating automated production lines that require timed material delivery

For any operation where pipe retrieval currently involves a forklift, a manual search, and a hope that the inventory record is accurate, the Automatic Pipe Racking ASRS from Herochu delivers a measurable step-change in density, speed, and inventory accountability.

Closing Thoughts

Smart warehousing is not a buzzword. For manufacturers handling long-format pipes and profiles, it is the difference between a facility that scales efficiently and one that drowns in its own inventory. The Automatic Pipe Racking ASRS from Herochu addresses the three problems that define poor pipe storage: wasted floor space, slow manual retrieval, and inaccurate stock data. By building vertically, automating retrieval with ±2 mm precision, and maintaining a live digital inventory, the system turns long-stock storage from an operational liability into a managed, accountable asset.

Facilities evaluating the shift from static racking to automated vertical storage should weigh the reclaimed floor space, the labor reduction, and the inventory accuracy gain together. In nearly every case where heavy long-format material is involved, the Automatic Pipe Racking ASRS from Herochu delivers a return that static racking cannot match.
