Intelligent Gantry Pipe Storage ASRS for Manufacturing

Manufacturing facilities that handle long-format pipes and structural profiles share a persistent operational problem. The storage and retrieval of these materials depends on manual labor, consumes floor space out of proportion to inventory value, and produces inventory records that drift from reality within hours of a count. The Intelligent Gantry Pipe Storage ASRS for Manufacturing from Herochu was engineered to replace that model with a fully automated, digitally managed storage ecosystem built for smart manufacturing environments.

This article examines how the intelligent gantry architecture functions, what it delivers on the production floor, and why manufacturers handling heavy long-format inventory are adopting it as the backbone of modern material flow.

What Defines an Intelligent Storage System

The word intelligent in this context is specific. The Intelligent Gantry Pipe Storage ASRS from Herochu is not simply a motorized rack. It is a closed-loop ecosystem where mechanical retrieval, PLC-based control, real-time inventory data, and production line integration function as a single coordinated system.

Conventional automated storage handles the mechanics of retrieval. An intelligent system handles the data as well. It knows what is stored, where it is stored, when it was placed, when it was retrieved, and which production order consumed it. That data layer is what makes the system intelligent rather than merely automated. It transforms storage from a passive holding function into an active input to production planning and inventory management.

For manufacturers pursuing smart factory initiatives, this distinction matters. A storage system that only moves material is a tool. A storage system that generates and feeds real-time inventory data is a node in the manufacturing execution system.

Gantry-Type Architecture and Ground Rail Technology

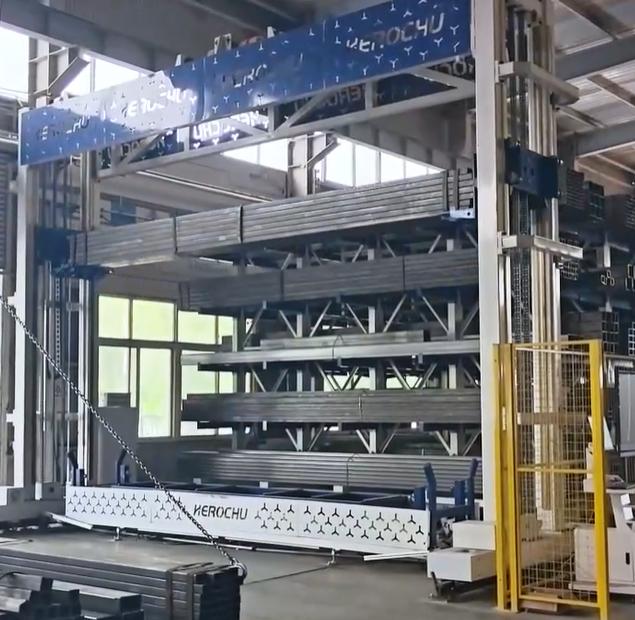

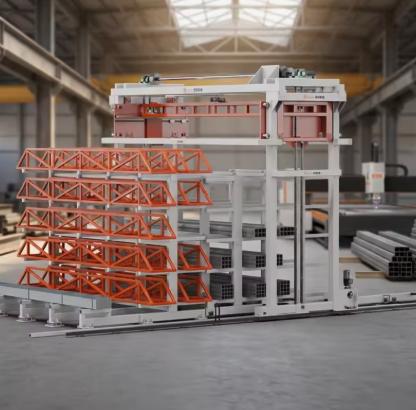

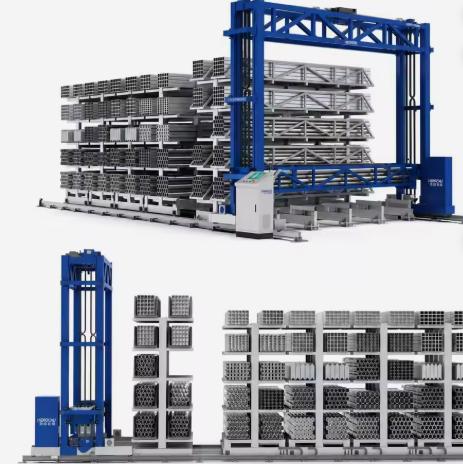

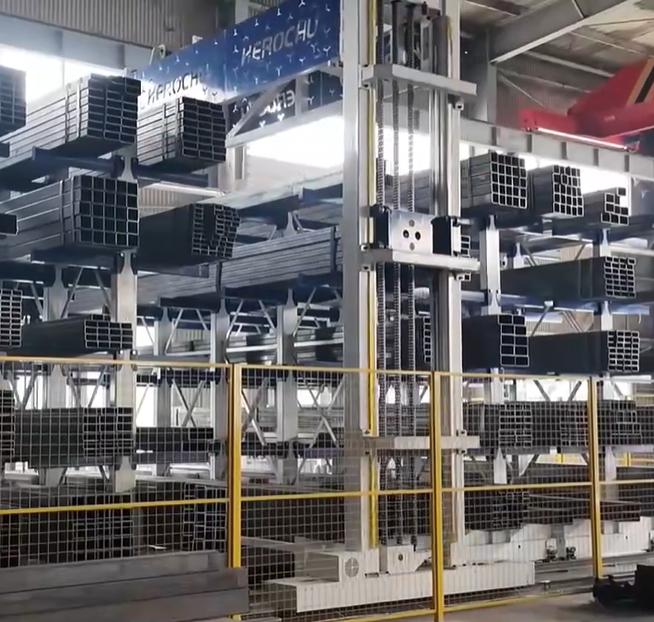

The mechanical core of the system is a heavy-duty gantry picker that travels along ground-mounted guide rails. This gantry-type architecture was selected for a specific structural reason. By mounting the travel rails at floor level and designing mobile rack towers that share a single retrieval aisle, the system eliminates the redundant access aisles that conventional static racking requires between every row.

The ground rail design also distributes the structural load of the loaded gantry directly to the warehouse floor. That load path simplifies installation in existing facilities, where the floor slab is typically the strongest structural element available, and it eliminates the need for elevated support frameworks that complicate facility layout.

The density gain from this architecture is the central operational argument. Mobile rack towers sharing a single retrieval aisle reduce the floor area consumed per stored meter of pipe dramatically compared with conventional static racking. Facilities that have migrated from static horizontal storage to this gantry-type configuration reclaim over 50 percent of their previous storage footprint. That recovered space becomes room for additional processing equipment, wider safety-compliant lanes, or simply the capacity to absorb more inventory without building expansion.

High-Capacity Storage for 8-Meter Industrial Profiles

The system is engineered for heavy industrial scale. Each layer of the storage towers supports a loading weight of up to 5000 kg, and the rack is purpose-built to accommodate long-format materials, supporting profiles and pipes up to 8000 mm in length.

That capacity rating is not a theoretical ceiling. It is the working load the structure is engineered to hold cycle after cycle. The robust structural integrity ensures safe, organized storage for concentrated loads of steel, aluminum, and structural alloy sections. The beam and frame design distribute concentrated bundle weight across the structural member, preventing the point-loading deflection that degrades conventional racking and causes stored pipes to sag and warp over long-term storage.

For facilities handling heavy steel pipe bundles, this structural integrity is the difference between a rack that holds its dimensional accuracy over years of operation and one that becomes unsafe after months of loaded cycling.

PLC Touch Screen Controls and Automated Operation

The gantry picker is driven by a PLC control system with a touch screen interface that manages both the retrieval mechanics and the inventory database. Operation is designed for simplicity. Warehouse staff select a storage slot on the touch screen, and the system executes the full retrieval cycle automatically.

The PLC positions the gantry at the correct rack tower, extracts the bundle from the target layer, and delivers it to the load-out station for production pickup. The interface is built for daily warehouse use, not for specialized technical staff. That operational simplicity is what allows the system to replace manual racking labor without creating a new dependency on highly skilled operators.

By replacing manual racking with this automated, high-precision ecosystem, manufacturers achieve seamless material flow and professional, data-driven warehouse operations. The system does not simply reduce labor. It changes what the labor is spent on. Staff time shifts from physical retrieval to inventory management, production coordination, and system oversight.

Rapid Throughput and ±2 mm Precision Positioning

Speed and accuracy define the operational performance of the system. The gantry picker operates with an exchange and lifting speed of 5–15 m/min, ensuring rapid material retrieval for high-speed laser cutting or production lines.

That retrieval pace matches the throughput demands of modern manufacturing cells. When a laser cutting machine cycles through material at high speed, the storage system feeding it cannot afford to be the constraint. The gantry retrieval speed ensures that material delivery keeps pace with production demand without forcing the line to wait for the next bundle.

The positioning accuracy of ±2 mm is maintained across every cycle. That consistency is not a luxury. It is a functional requirement for integration with automated downstream equipment. When a production cell expects a specific bundle at a specific position, the gantry delivers it to that position every time. The variability inherent in manual forklift placement is eliminated, and the production line can trust the material feed as a reliable input rather than an uncertain variable.

Real-Time Digital Inventory Management

The PLC control system maintains a real-time digital inventory record of every storage slot. Every placement and retrieval transaction updates the database, giving production planning teams a live view of what material is in stock, where it is located in the rack, and how much remains.

That data feed eliminates the manual stock counting that consumes labor hours in conventional pipe storage operations. It also eliminates the inaccuracy that manual counts produce. When the inventory record is generated by the system that physically handles the material, the data and the reality match by definition.

For production planning, the implications are direct. Procurement can order against real stock rather than inflated safety margins. Production scheduling can commit to delivery dates based on confirmed material availability rather than estimated counts. And the working capital tied up in excess safety stock can be reduced without increasing the risk of material shortages.

Configuration and Customization

The Intelligent Gantry Pipe Storage ASRS from Herochu is engineered to adapt to the facility rather than impose a fixed geometry. The number of rack layers, the quantity of storage units, and the slot dimensions are configured to the facility’s material mix and space constraints.

A facility storing predominantly 8-meter steel round pipe runs a different configuration than one handling mixed aluminum extrusions and alloy bars. The system scales with the inventory profile. And as the production mix changes over time, the slot assignments can be redefined in the PLC system without structural modification to the rack.

That adaptability protects the capital investment. The system is not a fixed asset that becomes obsolete when the material profile shifts. It is a configurable platform that adjusts to changing inventory demands across the facility’s operational life.

Who the System Serves

The Intelligent Gantry Pipe Storage ASRS from Herochu is built for manufacturing facilities where long-format material handling is a defining operational challenge:

• Structural steel fabrication handling long pipe and section stock for cutting and welding
• Laser cutting service centers requiring timed delivery of pipe bundles to cutting cells
• Aluminum profile distributors managing mixed extrusion inventory
• Metal service centers storing bundled round, square, and rectangular sections
• Smart manufacturing plants integrating automated storage with production execution systems

For any operation where pipe retrieval currently means a forklift, a manual search, and an uncertain stock record, the intelligent gantry architecture delivers a measurable transformation in density, speed, and inventory accountability.

Conclusion

The Intelligent Gantry Pipe Storage ASRS for Manufacturing from Herochu was built to resolve the structural problems that define conventional long material storage. The gantry-type architecture with ground rail technology delivers high-density vertical storage that reclaims over half the floor space consumed by static racking. The 5000 kg per-layer capacity and 8000 mm material length rating handle the heaviest industrial profiles. The ±2 mm positioning accuracy and 5–15 m/min retrieval speed keep pace with high-speed production lines. And the PLC-driven digital inventory management transforms stock records from a source of uncertainty into a reliable production planning input.

For manufacturers pursuing smart factory operations, the system is not just storage. It is the material flow infrastructure that makes data-driven, automated manufacturing possible. Facilities evaluating the shift from manual racking to intelligent automated storage should weigh the reclaimed floor space, the reduced labor dependency, and the inventory accuracy gain together. For heavy long-format material operations, the Intelligent Gantry Pipe Storage ASRS from Herochu delivers a return profile that conventional storage cannot approach.
