Smart Sheet Material Store Featuring Single-Row Multiple Towers

A centralized storage hub is more than a holding area—it is the logistical heart of a sheet metal fabrication plant. The Herochu Smart Sheet Material Store Featuring Single-Row Multiple Towers is designed precisely for this role: a high-capacity, intelligent dispatch center that receives, organizes, and delivers sheet materials to multiple production cells with minimal human intervention. Unlike decentralized storage (small racks scattered near each machine) or manual central warehouses (forklifts, paper lists, and walking), the Herochu system consolidates all sheet inventory into one automated single-row multi-tower enclosure, turning storage into an active participant in production scheduling.

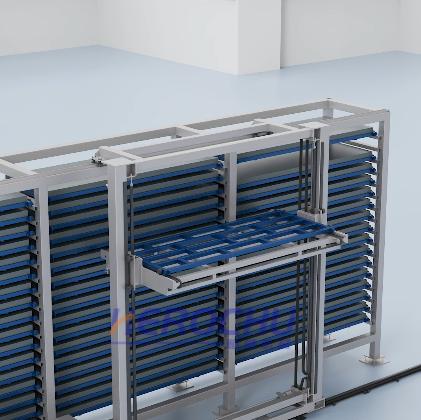

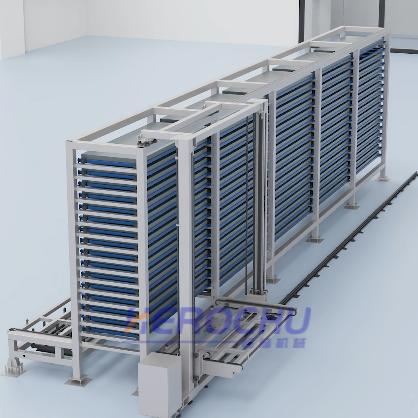

The physical layout is deceptively simple. Multiple storage towers sit in a single row, each tower containing multiple layers. The number of towers and layers is fully customizable based on the customer’s sheet dimensions and throughput requirements. For example, a configuration with six towers and ten layers per tower—a variant of the HC-S4015-3-85 platform—provides 60 storage compartments. If each compartment holds one standard pallet of 20 sheets, total capacity reaches 1,200 sheets. For thicker materials where each compartment holds fewer sheets, the system can be adjusted by increasing the number of towers or layers. This modularity means the Herochu smart store grows with the business; adding two more towers later is a matter of extending the rail and installing additional frames, not redesigning the automation.

What makes the Herochu system a “smart store” rather than a dumb storage rack is the combination of real-time inventory tracking, ERP integration, and predictive material staging. The PLC touchscreen serves as the store’s front desk, showing operators a live map of every tower and layer. Colors indicate status: green (occupied with known material), yellow (reserved for incoming), red (full load reached), gray (empty or maintenance). Tapping any compartment brings up detailed material metadata: dimensions, weight, quantity, material grade, supplier, date received, and number of times retrieved. This level of transparency is impossible with conventional racking, where inventory accuracy often falls below 85% between monthly audits.

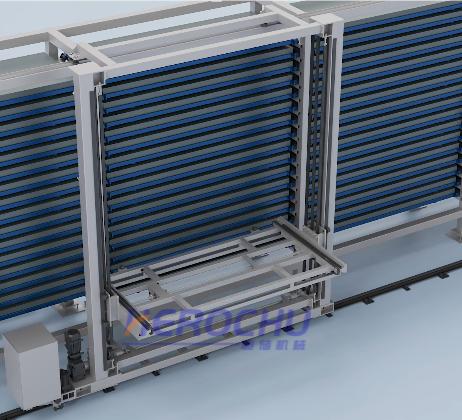

The smart store’s centralized hub function becomes evident when connected to multiple production machines. Herochu equips the system with dual or triple unloading stations, allowing the same storage row to feed a laser cutter, a punch press, and a press brake simultaneously. The material cart serves all stations on demand. When the laser cutter completes its current sheet, it sends a request via the factory network to the Herochu PLC. The PLC checks the queue, selects the next required sheet (based on the production schedule stored in the ERP), and directs the cart to retrieve it. The cart delivers the sheet to the unloading conveyor assigned to the laser cutter, then proceeds to the next request. The entire process is asynchronous, meaning no machine waits longer than 90 seconds for material.

Centralized storage also enables batch optimization that decentralized racks cannot match. Because all sheet materials are in one smart store, the system can implement a “first-in, first-out” (FIFO) or “first-expired, first-out” (FEFO) policy automatically. For materials with corrosion risk or limited shelf life (e.g., pre-coated sheets), the system tracks inbound dates and always retrieves the oldest batch first. Conversely, for high-turnover standard stock, the system can prioritize compartments closest to the unloading station to minimize travel time. The operator sets these policies through the touchscreen once, and the Herochu smart store executes them without further input.

Real-time data from the smart store feeds directly into production planning. The ERP can query the system at any moment: “How many sheets of 2.5 mm aluminum 4000×1500 mm are currently available?” The Herochu system responds within milliseconds with an exact count and the location of each sheet. More advanced queries are also possible: “Which towers have spare capacity for incoming 5000 kg loads?” The system replies with a list of compartments that can accommodate the weight and dimensions. This bidirectional data flow eliminates the guessing and safety stock padding that plagues manual warehouses, often reducing raw material inventory levels by 20–30% without increasing stockout risk.

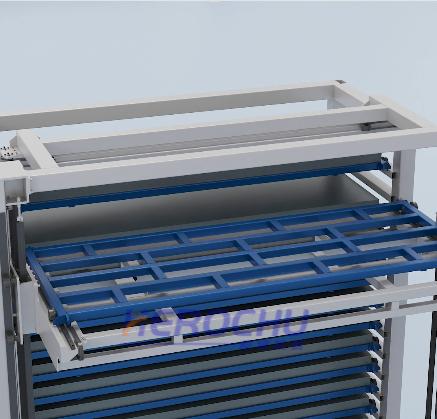

The smart store’s handling mechanism is engineered for heavy-duty cycles. The telescopic fork and vertical lift are rated for continuous operation—10,000 cycles between scheduled maintenance. The fork tips are hard chrome-plated to resist wear from sharp sheet edges. For shops that process stainless steel or abrasion-resistant materials, optional polyurethane covers on the fork fingers prevent surface marking. The transfer motor is AC servo with absolute encoder feedback, eliminating the need for homing after power loss. If power is interrupted mid-retrieval, the system remembers the cart’s exact position and resumes the operation when power returns, provided manual safety reset is performed.

Safety systems in the Herochu smart store extend beyond basic emergency stops. Each tower has individual weight sensors that compare the measured load against the compartment’s rating. If an operator attempts to store a sheet weighing 6000 kg into a compartment rated for 5000 kg, the system rejects the entry and displays an overload warning. On the cart itself, a laser rangefinder continuously measures distance to the nearest obstacle in the travel direction. If an object is detected within 500 mm, the cart decelerates; within 200 mm, it stops and sounds an alarm. These features make the Herochu smart store safe to operate alongside pedestrian traffic, as long as designated walkways are maintained.

For plant managers evaluating return on investment, the Herochu Smart Sheet Material Store Featuring Single-Row Multiple Towers delivers measurable payback through three channels: labor reduction (eliminate dedicated forklift driver and material handler), space savings (up to 70% less floor area than standard racks for the same capacity), and material damage reduction (no bent corners from rough handling). With an expected service life of 15–20 years and modular upgrade paths, the system typically pays for itself within 18 to 30 months in medium-to-high volume fabrication environments. That financial performance, combined with the operational predictability of a centralized smart store, explains why Herochu has become a reference in automated sheet material logistics.
