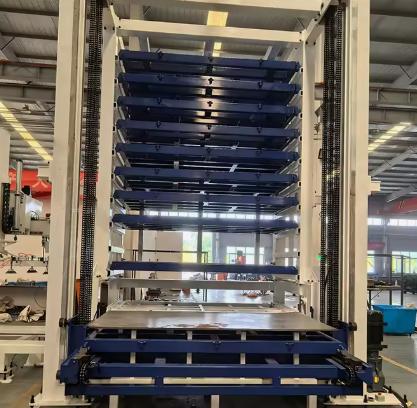

The evolution of industrial storage has reached a pivotal inflection point. Traditional two-dimensional storage methods—spreading materials across the factory floor in expansive horizontal layouts—can no longer meet the demands of modern, high-volume manufacturing. The Intelligent Automated Steel Plate 3D Storage Rack from Herochu represents the next generation of material management, leveraging three-dimensional space utilization, robotic automation, and intelligent control systems to create a storage solution that is as intelligent as it is robust.
Three-Dimensional Storage Architecture
At the core of the Intelligent Automated Steel Plate 3D Storage Rack is a sophisticated three-dimensional storage warehouse that serves as the foundation for end-to-end material automation. The system comprises high-rise storage levels—typically 8 to 13 layers—supported by a bilateral gantry truss and a composite truss manipulator that together enable automated storage, retrieval, and material handling.
The three-dimensional approach fundamentally reimagines the relationship between storage capacity and floor space. By utilizing the full vertical height of the facility—often up to 15 meters—the Intelligent Automated Steel Plate 3D Storage Rack compresses what once required hundreds of square meters of floor space into a compact vertical footprint. Each storage location is engineered for immense strength, with load capacities standardized at 3 or 5 tons per layer, with custom configurations available for specialized requirements.
Heavy-Duty Engineering for Industrial Demands
The structural engineering of the Intelligent Automated Steel Plate 3D Storage Rack reflects the demanding nature of steel plate storage. Constructed from high-grade steel with a modular, multi-level racking structure, the system supports individual layer loads of 3 to 5 tons and scales vertically to accommodate plate sizes from standard 3000×1500 mm blanks up to 6000×2500 mm heavy-duty plates.
The drawer-style design of each storage compartment ensures that plates are fully supported across their entire surface area, preventing deformation or damage during storage. This is particularly critical for thin-gauge materials that can warp or sag when inadequately supported. The precision-engineered storage locations ensure that each plate is maintained in optimal condition until it is needed for processing.
Automated Retrieval and Handling
The Intelligent Automated Steel Plate 3D Storage Rack eliminates the inefficiencies of manual material handling through its integrated gantry robot system. The bilateral gantry truss system enables simultaneous material access from multiple sides, while the composite truss manipulator serves as the primary interface between the storage warehouse and processing equipment.
The handling system achieves rapid material transfer with loading arm speeds of 10 to 30 m/min and lifting speeds of 5 to 10 m/min. The integrated robot arm eliminates manual handling injuries and accelerates change-over times to under 90 seconds. This speed and precision ensure that material flow never becomes a bottleneck in the production process.
Multi-Machine Synchronization
One of the most powerful features of the Intelligent Automated Steel Plate 3D Storage Rack is its ability to synchronize with multiple laser cutting machines simultaneously. The system coordinates material retrieval, loading, cutting, and unloading across multiple machines, creating a fully automated production center that operates with minimal human intervention.
A single Herochu gantry robot can feed and evacuate two laser cutters, a shear center, and an adjacent deburring station in parallel. The task scheduler built into the system assigns priority queues by due date, material grade, or nesting efficiency, with operators able to drag and drop jobs on the intuitive touchscreen interface. This multi-machine capability dramatically increases the return on investment for the storage system, as a single automated storage rack can support multiple production lines simultaneously.
Intelligent Control and Integration
The operational intelligence of the Intelligent Automated Steel Plate 3D Storage Rack is governed by a sophisticated PLC control system that communicates natively with existing ERP and MES layers. This integration enables automated material reservations, production scheduling based on available inventory, and real-time consumption tracking.
The system’s high-precision load cells implement intelligent weighing with exceptional accuracy, providing real-time data on material consumption and stock availability. This data feeds into the inventory management system, ensuring that operators always know exactly what materials are available and where they are located. The result is a closed-loop material management ecosystem that eliminates the guesswork, inaccuracies, and inefficiencies of manual inventory tracking.
Unmanned Operation Capabilities
The Intelligent Automated Steel Plate 3D Storage Rack enables true 24/7 lights-out production. By automating the entire material flow—from storage and retrieval to loading, cutting, and off-loading—the system allows facilities to operate unmanned night shifts, dramatically increasing machine utilization rates without additional labor costs. The system’s robustness and reliability ensure consistent operation even in demanding industrial environments, making it an ideal solution for facilities seeking to maximize throughput and minimize labor dependency.
Measurable Operational Impact
Implementing an Intelligent Automated Steel Plate 3D Storage Rack delivers measurable improvements across multiple operational metrics. The consolidation of scattered floor storage into a compact vertical footprint frees valuable floor space for additional production equipment. The elimination of manual material handling reduces labor costs while improving workplace safety. The system’s integration capabilities ensure that material flow never becomes a bottleneck, maximizing the utilization of expensive processing equipment.
For metal fabricators and steel service centers seeking to remain competitive in an increasingly demanding market, the Intelligent Automated Steel Plate 3D Storage Rack from Herochu offers a proven path to operational excellence. It represents not merely an evolution in storage technology but a fundamental rethinking of how materials are managed in the modern manufacturing environment.
