High-Density ASRS for Bars, Pipes & Structural Steel: Herochu Vertical Storage That Works

Warehouses processing long steel profiles face a recurring problem: floor space disappears fast when every bundle of pipe, bar, or beam demands its own footprint. Rows of cantilever racks spread horizontally, forklift aisles widen, and picking routes stretch across the yard. For many service centers and fabrication shops, the storage area eventually becomes the bottleneck that limits throughput on the shop floor.

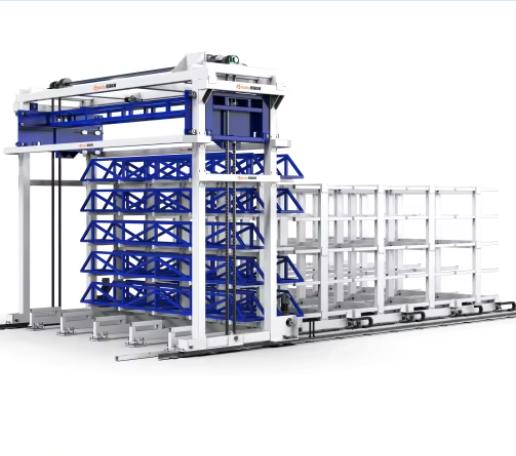

Herochu addresses this by turning storage vertical. The company’s high-density Automated Storage and Retrieval System (ASRS) for bars, pipes, and structural steel stacks inventory upward in multi-level tower configurations rather than spreading it outward. A Cartesian gantry robot runs the full length of the storage zone, retrieving and depositing material bundles with positioning accuracy measured in millimeters. The result is a warehouse where the same number of SKUs occupies a fraction of the ground space once needed.

Why Vertical Beats Horizontal for Long Material Storage

Conventional racking for steel profiles follows a simple logic: place the load on arms, drive a forklift into the aisle, lift, and move. This method works for light inventory, but it falls apart at scale. Every row of racking needs its own aisle. Taller loads need wider aisles for forklift swing clearance. As the yard fills up, operators spend more time traveling than handling, and safety risks climb with every vehicle movement through a crowded space.

Herochu turns the model on its head. Instead of bringing the forklift to the material, the company’s gantry system brings the material to a central picking station. Tower structures rise vertically, each holding multiple layers of dedicated cradles. The overhead gantry spans across all tower positions, moving horizontally along floor-mounted rails and lifting vertically with independent axis drives. Floor space that once held three rows of cantilever racks can support eight or ten towers of material, depending on pipe length and weight class.

The storage density gain is not just about fitting more steel into the building. It changes how the whole operation sequences work. Because every position in the tower is addressable by the PLC controller, the gantry can retrieve any bundle in any order. There is no need to block-stack by heat number or to shuffle material to reach a buried SKU. Inventory turns faster, and the picking aisle—shared across all tower positions—stays clear of traffic.

The Gantry That Powers High-Density Retrieval

At the center of every Herochu high-density ASRS is a Cartesian gantry robot designed specifically for long, heavy loads. The gantry rides on linear guide rails with chain-drive transmission, a deliberate choice over belt-driven alternatives. Under the inertial forces that develop when moving a five-ton bundle of structural steel tube at operating speed, belts slip and stretch over time. Chain drive paired with hardened guide rails holds its positioning through thousands of cycles, so the system maintains its ±2 mm repeatability year after year.

Horizontal travel and vertical hoisting operate through independent servo-driven axes. This separation matters for two reasons. First, it keeps the control logic straightforward—each axis follows its own motion profile without cross-coupling, which reduces the compute overhead and makes fault diagnosis simpler. Second, it trims the mechanical footprint. The gantry mast only needs to be as tall as the highest retrieval point, not taller to accommodate simultaneous movement. Warehouse ceiling clearance requirements stay manageable even with towers holding eight or more layers.

Travel speeds range from 5 to 30 meters per minute horizontally and 5 to 15 meters per minute vertically, with a 15 kW drive system providing the torque needed to accelerate heavy steel bundles smoothly. Operators tune these speeds from the touchscreen HMI to match the material type and the urgency of the downstream process. A bundle of thin-wall tubing heading to a just-in-time cutting line might move at full speed; a precision-ground bar for machining might get a gentler profile.

Load Capacity and Material Range

Herochu configures each high-density ASRS to the pipe lengths and weight classes running through the customer’s operation. The standard model line spans 6,000 mm, 7,000 mm, and 8,000 mm pipe length capacities, with custom extensions available for non-standard profiles.

Per-layer load ratings reach 5,000 kg (5 metric tons) on the larger models, and 3,000 kg on the compact 6-meter configuration. A single tower with five to eight layers therefore holds anywhere from 15,000 kg to over 40,000 kg of inventory in one vertical column. Across an installation with eight or ten towers, total warehouse capacity runs into the hundreds of tons—all accessible to the gantry without moving a single forklift.

The cradles and material frames that hold the steel deserve their own mention. Round pipe, square tube, rectangular hollow sections, channel, angle, I-beam, and flat bar each roll or shift differently under dynamic loads. Herochu’s engineering team specs the cradle geometry to the profile cross-section, adding side restraints, V-supports, or contoured nests as needed to prevent bundles from rolling during gantry acceleration and deceleration. The rack grid itself uses a starting module of 600 mm by 500 mm, built from high-tensile steel that resists deflection under full load.

Inventory Control Without the Clipboards

Manual warehouses track steel inventory with tags, chalk marks, and spreadsheets—methods that drift out of sync the moment a third-shift operator moves a bundle without logging it. Herochu’s ASRS replaces guesswork with a digital inventory module tied directly to the PLC.

When the gantry deposits a bundle into a tower position, the system records the location, the material grade, the heat or lot number, and the remaining quantity. The touchscreen interface displays a real-time map of every occupied and vacant slot, color-coded by material type or age. Supervisors can pull stock reports, set minimum-level alerts, and plan mill order replenishment from the same screen that runs the gantry.

For facilities that already run a Warehouse Management System (WMS) or an Enterprise Resource Planning (ERP) platform, the Herochu controller exposes a communication interface that pushes inventory data upstream. The ERP knows what steel is on hand without anyone walking the yard. Production scheduling software can reserve material for upcoming jobs, and the ASRS will stage those bundles at the picking station before the shift starts.

Safety Built Into the Architecture

Handling multi-ton steel bundles with manual forklifts introduces risks that insurance carriers and safety managers know all too well: tip-overs, dropped loads, pedestrian strikes, and crush injuries. Herochu’s automated approach removes the operator from the danger zone entirely.

The gantry operates inside a fenced perimeter with interlocked access gates. Light curtains and area scanners stop all motion the instant a person or vehicle enters the work envelope. The picking station—where bundles are presented for forklift or crane pickup—sits outside the fence, so the operator never enters the automated zone during normal production. Emergency stop circuits run in a redundant safety relay chain independent of the motion controller, meeting Category 3 safety architecture per ISO 13849-1.

Load monitoring adds another layer. The gantry’s drives continuously compare commanded torque against actual torque. If a bundle snags on a rack or exceeds the programmed weight limit, the drive faults and the load holds in place rather than forcing through the obstruction. This protects both the steel and the structure.

Where High-Density ASRS Fits

The strongest use cases for Herochu’s high-density profile ASRS cluster around operations that carry high SKU counts in long material form:

• Steel service centers stocking pipe, tube, and structural sections across dozens of grades and diameters
• Fabrication shops feeding multiple CNC saws, lasers, or beam lines from a central material pool
• Tubular product manufacturers managing work-in-process between forming, welding, and finishing
• Oil country tubular goods (OCTG) distributors handling casing and tubing in API grades

In each case, the economic case rests on three numbers: how much floor space gets freed up, how much faster material reaches the production line, and how many forklift movements disappear from the daily log. Facilities that run the math typically find the system pays for itself through some combination of rent savings, labor reduction, and damage avoidance.

Scaling for Growth

Herochu designs its ASRS towers as modular building blocks. A facility that starts with four towers and a single gantry can add more tower positions along the same rail bed as throughput demands grow. The gantry software accepts new position coordinates through a configuration update—no rewiring, no structural rebuild.

Voltage and frequency are configurable at build time (220 V / 380 V, 50 Hz / 60 Hz), so the system ships ready for the local grid whether the installation sits in Houston, Dubai, or Jakarta. Herochu’s field service team handles commissioning, operator training, and the first preventive maintenance cycle.

For warehouses that have been running the same rack-and-forklift layout for a decade or more, the switch to high-density vertical automated storage represents a step change in inventory density, retrieval speed, and workplace safety. The steel stays organized, the gantry does the heavy lifting, and the floor plan opens up for machines that add value rather than store it.
