Manual Pull Out Sheet Metal Rack for Sheet Metal Fabrication Workflow

In the competitive landscape of modern metal fabrication, workflow efficiency separates profitable operations from those struggling to stay afloat. The Manual pull out sheet metal rack for sheet metal fabrication workflow has emerged as a transformative solution for fabricators seeking to eliminate bottlenecks, reduce material damage, and maximize productivity. Herochu, a leader in industrial storage solutions, has engineered a comprehensive range of manual pull-out systems designed specifically for the demanding environment of sheet metal fabrication shops.

The Hidden Bottleneck in Fabrication Workflows

Walk into any traditional fabrication shop, and you will witness the same scene: valuable floor space consumed by sprawling, disorganized stacks of raw materials. Mild steel, stainless steel, and aluminum sheets are piled haphazardly on top of one another, often without any systematic organization. When a laser cutter or press brake requires a specific gauge of stainless steel, the real time-wasting begins. That particular sheet is inevitably buried under five other bundles, triggering the dreaded re-stacking shuffle.

An operator must call for an overhead crane, carefully lift and move several tons of material to a temporary location, creating significant safety hazards while blocking walkways. Only then can they access the required sheet. This entire process transforms a simple material request into a 30-minute ordeal, during which the most expensive equipment on the shop floor sits idle.

How Manual Pull-Out Systems Revolutionize Material Access

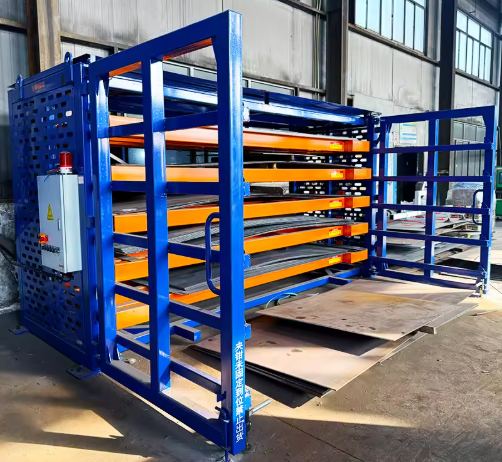

The Herochu Manual pull out sheet metal rack fundamentally changes the relationship between operators and inventory. Instead of stacking material, you manage it systematically. The core of this transformation lies in 100% selectivity—every single drawer can be fully extended, providing immediate, unobstructed access to any sheet on any level.

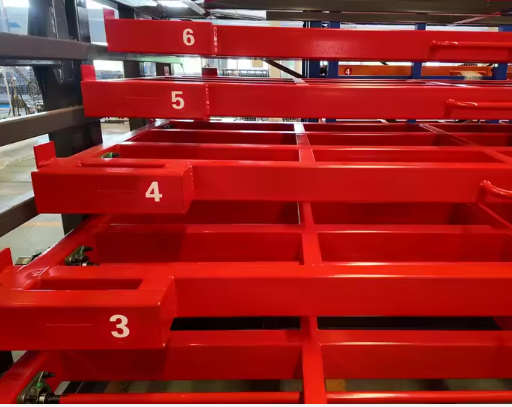

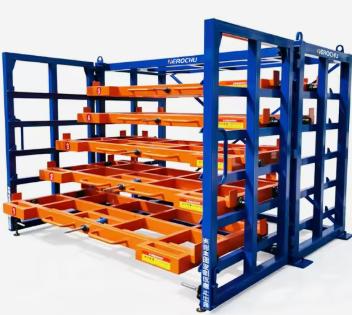

The HC-B series from Herochu exemplifies this approach. Available in configurations accommodating sheet dimensions from 2500×1300mm up to 6000×2000mm, these racks support up to six customizable layers with load capacities ranging from 3,000 kg to 5,000 kg per tier. The robust Q235B high-strength steel main frame with dual-beam design ensures structural integrity even under the most demanding conditions.

Integration with Existing Lifting Equipment

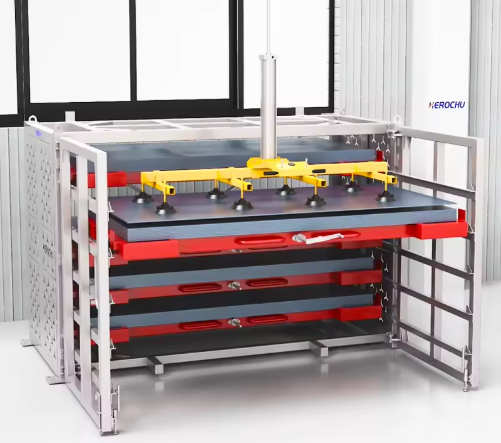

One of the most compelling advantages of the Herochu manual pull-out system is its seamless integration with existing material handling equipment. The manual pull-out and hand-cranked racks are designed to work flawlessly with overhead cranes, jib cranes, and vacuum lifters using plate clamps. When a drawer is fully extended, it creates an unobstructed vertical path for crane operations. The crane hook or vacuum lifter can descend directly onto the desired plate without any risk of collision with the rack structure.

Protecting Valuable Inventory

Sheet metal represents a significant capital investment for any fabrication shop. Traditional stacking methods inevitably lead to surface scratches, edge damage, and bending deformation caused by stacking, squeezing, and friction between sheets. The Herochu manual pull-out system addresses this challenge through its innovative design. Each sheet is independently placed flat on its own drawer, effectively eliminating the surface damage that plagues conventional storage methods. The inclined plastic supports in continuous trays prevent sheets from slipping while protecting sensitive surfaces from scratches.

Real-World Impact on Production Throughput

Fabrication shops that have implemented Herochu manual pull-out sheet metal racks report dramatic improvements in operational efficiency. The time required to retrieve a specific sheet drops from 30 minutes to under 60 seconds. This reduction in material handling time translates directly to increased machine utilization and higher overall equipment effectiveness (OEE). When a laser cutter or press brake no longer waits for material, production capacity expands without the need for additional capital equipment.

Single-Person Operation for Maximum Efficiency

The Herochu system is engineered for single-person operation. Hand-pull drawers accommodate lighter gauge sheets and daily-use materials up to approximately 1.5 tons, allowing operators to quickly and smoothly slide drawers out without mechanical assistance. For heavier plates, the integrated hand-crank mechanism provides mechanical advantage through a precision gear system, enabling a single operator to effortlessly extend a fully loaded, multi-ton drawer. This eliminates the need for team lifts and the associated risk of strains or injuries.

Customization for Specific Workflow Requirements

Herochu understands that no two fabrication shops are identical. The company offers full customization of drawer count (3 to 8 layers), shelf height, overall dimensions, and load capacity to match specific inventory requirements and handling equipment. Whether working with standard 4’x8′, 5’x10′, or non-standard sheet sizes, Herochu engineers the system to perfectly fit the operational workflow.

For fabricators seeking to eliminate bottlenecks, protect valuable inventory, and maximize production capacity, the Herochu Manual pull out sheet metal rack represents a strategic investment that delivers immediate and lasting returns.
