Floor space in metal fabrication facilities is a finite and expensive asset. When steel and aluminum sheets are stacked horizontally on the ground or on conventional pallet racking, valuable square footage disappears under piles of material that require forklifts, manual handling, and constant supervision to manage. Scratches accumulate on surface-critical stock, edges dent, and operators spend disproportionate time searching for the correct gauge or alloy.
Herochu’s heavy duty electric sheet metal rack addresses these inefficiencies directly. This motorized drawer storage system converts horizontal floor footprints into vertical, high-density storage that keeps every sheet individually accessible while protecting material integrity.
Motorized Drawer Storage: The Core Innovation
The defining feature of the Herochu electric rack is the motorized drawer mechanism. Each drawer extends fully from the rack structure with a push-button or remote control, eliminating the physical exertion required to pull multi-ton trays by hand. This is not a marginal convenience—it fundamentally changes the labor profile of sheet metal retrieval.
In facilities using manual crank-out systems, retrieving a sheet from a lower drawer often requires two operators and several minutes of positioning. Herochu’s motorized drawer storage reduces this to a single-person operation that completes in seconds. The drawer glides out on maintenance-free ball-bearing rollers, stops precisely at full extension, and remains stable while the crane or vacuum lifter removes the required sheet.
Automated Drawer Sheet Metal Storage Rack for 3000x1500mm Sheets
The HC-B3015-63 model is configured specifically for the 3000×1500mm sheet format that dominates laser cutting and general fabrication workflows. With six standard layers and a maximum load of 3,000 kg per tier, this automated drawer rack accommodates the most common steel and aluminum dimensions without requiring custom engineering.
Each layer provides 120 mm of clear space as standard, with customization available for thicker plate bundles. The drawer width and depth are matched to the 3000×1500mm footprint, ensuring that sheets rest flat and fully supported throughout the storage cycle. For shops running mixed inventories, the six-layer configuration can be adjusted at order to accommodate different material families—mild steel on one tier, stainless on another, aluminum on a third—with clear labeling and FIFO rotation capability.
Electric Drawer Rack for Steel & Aluminum Sheet Storage
The electric drive system on Herochu racks is engineered for both steel and aluminum applications. Steel sheets present the load challenge; aluminum introduces surface sensitivity concerns. The drawer supports are fitted with inclined plastic components that hold each sheet or bundle flat during drawer travel, preventing the sliding and metal-on-metal contact that produces scratches and abrasions.
This design consideration matters in aerospace and automotive fabrication, where surface finish specifications are stringent and rework costs escalate quickly. By keeping sheets isolated on their own drawer plane, the Herochu electric drawer rack eliminates the friction damage inherent to stacked storage.
Crank-Out Steel Plate Drawer Rack for 3m x 1.5m Sheet

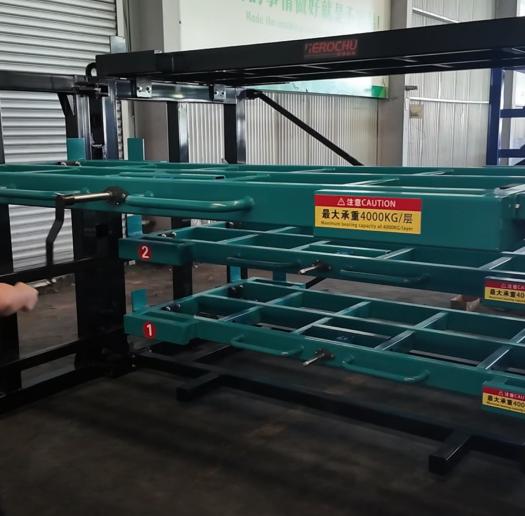

Not every facility requires motorized operation. For warehouses with lower retrieval frequency or where manual handling is preferred, Herochu offers the crank-out steel plate drawer rack configuration. The ergonomic crank mechanism reduces the effort required to move heavy drawers to approximately 20 percent of a manual glide-out alternative, making it viable for single-operator use even with 3-ton loads.
The crank-out version shares the same structural frame, drawer dimensions, and safety features as the motorized model. The 3m x 1.5m sheet capacity aligns with the HC-B3015-63 specification, and both operation modes integrate with overhead cranes, forklifts, and vacuum lifters.
Structural Integrity and Load Capacity
The frame is built from Q235B high-strength steel with a dual-beam crossbeam design. This configuration distributes drawer loads across the full width of the structure rather than concentrating stress at mounting points. The result is a rack that maintains its geometry under continuous industrial use, without the deflection or binding that appears in lighter-duty alternatives.

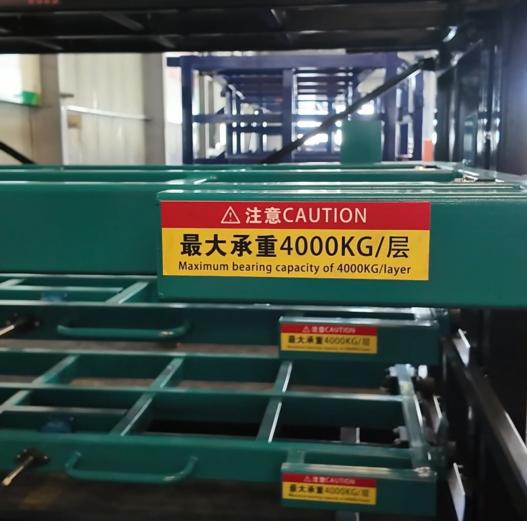

The HC-B3015-63 carries 3,000 kg per tier; larger models in the series support up to 5,000 kg. Total rack capacity reaches 30,000 kg, ensuring stability even when every drawer is fully loaded. The powder-coated finish resists corrosion in cutting shop environments, and the structural steel is protected against the humidity and particulate exposure typical of fabrication facilities.
Space Optimization and Operational Benefits
Converting from floor stacking to Herochu vertical storage typically recovers 30 to 70 percent of the floor area previously occupied by sheet inventory. The aisle requirements shrink because drawers extend to the operator rather than requiring forklifts to navigate between material piles. Cranes work from a fixed position, and the material flow follows a predictable path that shortens travel distances and reduces traffic conflicts.
Measurable outcomes reported by Herochu customers include 40 percent faster material retrieval, 25 percent lower operational costs, and a significant reduction in handling-related injuries. The FIFO capability supports inventory rotation discipline, reducing the risk of obsolete stock accumulating at the bottom of a stack.
Integration with Handling Equipment
Herochu racks are designed to work with the lifting equipment already present in the facility. Overhead cranes equipped with magnetic beams or vacuum lifters access the fully extended drawers from above. Forklifts can load and unload trays where the configuration permits, and the drawer locking system prevents movement during loading operations.
For facilities moving toward higher automation, the rack can integrate with gantry loaders, pneumatic vacuum manipulators, and automated loading systems serving laser cutting machines. The electric drawer control system provides the interface point for these upgrades.
Conclusion
The Herochu heavy duty electric sheet metal rack delivers what floor stacking cannot: organized, damage-free, space-efficient storage of steel and aluminum sheets in the 3000×1500mm format. Whether configured with motorized drawer storage or the crank-out steel plate option, the system protects material, reduces labor, and scales with the operational requirements of modern metal fabrication.
