Electric Drawer Rack for Storing Sheet Metal: Iron, Aluminum, Stainless Steel and More

Iron, aluminum, stainless steel, copper, brass, galvanized plate — modern fabrication shops handle a widening mix of metal sheet materials, each with different dimensions, gauges, and handling requirements. Storing them together in a single pile guarantees confusion, surface damage, and wasted retrieval time. The electric drawer rack from Herochu solves this by giving every material category its own dedicated, individually accessible drawer, creating a classified storage system that keeps mixed inventory organized and protected.

The Multi-Material Storage Problem

A typical laser cutting workshop receives daily deliveries of mild steel plate for structural parts, aluminum sheet for lightweight enclosures, and stainless steel for food-grade or corrosion-resistant components. When those materials land in the same horizontal stack, three things happen.

First, harder iron sheets scratch softer aluminum surfaces as they shift during retrieval. Second, operators misidentify sheets under poor lighting or when labels are obscured by neighboring plates. Third, FIFO control collapses — newer stainless deliveries bury older stock, and material expires or becomes obsolete before anyone reaches it.

Herochu addressed each failure mode with a drawer-based architecture that isolates materials physically while keeping them in the same compact vertical footprint.

Classified Storage by Material Type

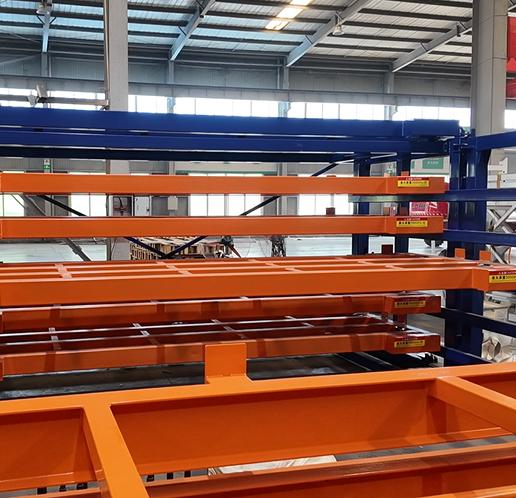

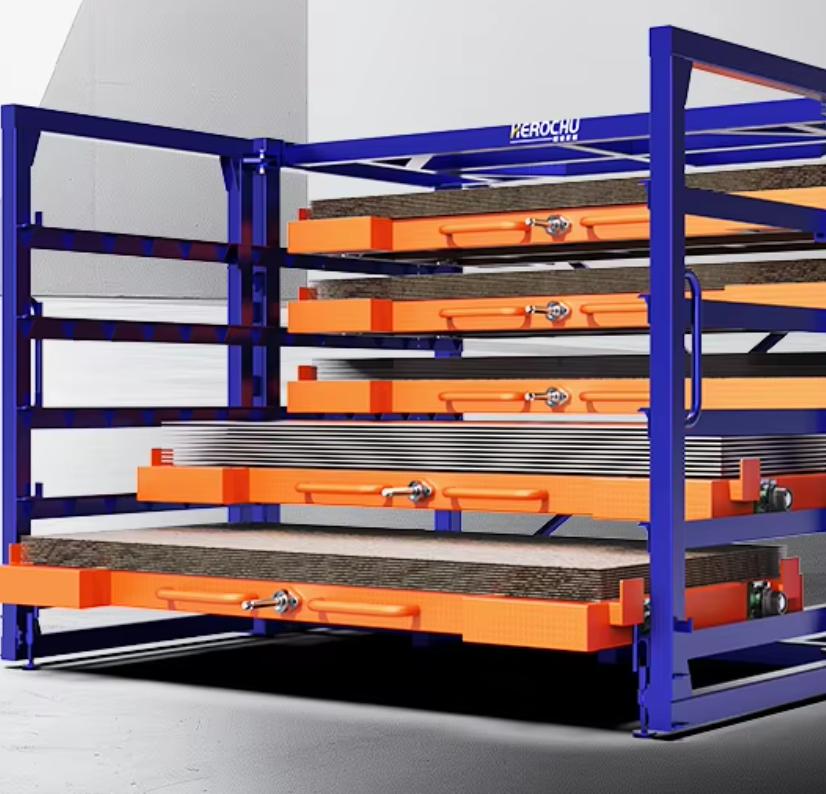

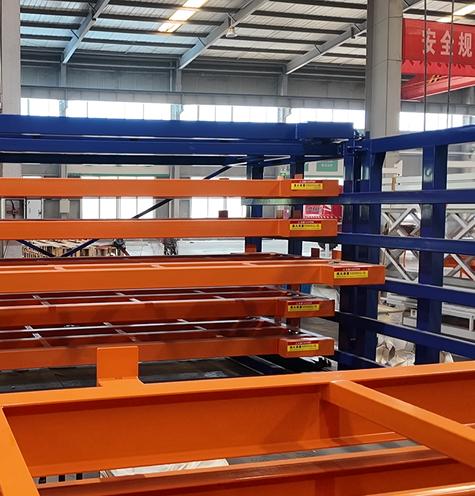

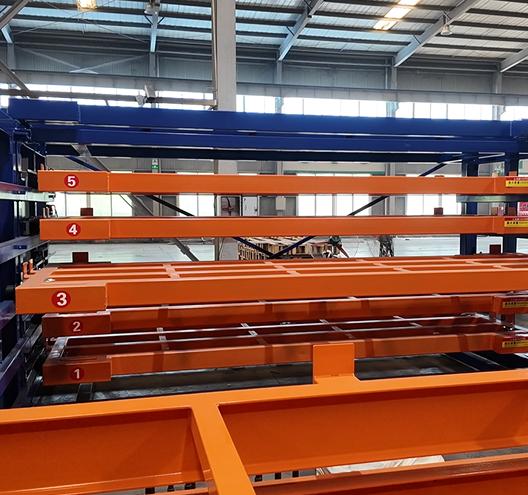

Each drawer in a Herochu electric drawer rack functions as an independent storage compartment. A shop can dedicate one drawer to 2 mm aluminum, the next to 3 mm stainless, and the one above to 6 mm carbon steel — all within the same rack frame. Drawers are labeled, tracked, and retrieved individually, so an operator pulling aluminum for a laser job never touches the stainless drawer unless that is the intended target.

This classified approach also simplifies inventory accounting. When each drawer holds a single material type and gauge, cycle counts become visual checks rather than multi-sheet excavation projects. The WMS or ERP system maps drawer positions to material codes, and stock levels update as drawers are loaded or emptied.

Handling Characteristics by Material

Different metals demand different handling considerations, and the Herochu drawer system accommodates each one:

• Iron and carbon steel plate: Dense and heavy. A 3000 × 1500 mm sheet of 6 mm mild steel weighs roughly 220 kg. The rack’s Q235B high-strength steel frame and dual-beam cross-support handle this load without flex, and the 3,000–5,000 kg per-tier capacity provides substantial safety margin.
• Aluminum sheet: Softer and more susceptible to surface scratching. Independent drawer storage eliminates sheet-to-sheet contact, preserving the mill finish that matters for anodized or painted downstream products.
• Stainless steel: Premium material where surface defects translate directly into scrap cost. Drawer isolation prevents the galvanic and mechanical damage that stacked storage causes.
• Copper, brass, and specialty alloys: High-value materials that benefit from the controlled, lockable drawer environment and ESD protection that prevents static-related surface marks.

Structural Specifications

The Herochu electric drawer rack is engineered around a Q235B high-strength steel main frame with a dual-beam design that resists the torsional forces generated when a fully loaded drawer extends outward. The frame is powder-coated for corrosion resistance, making it suitable for environments where coolant mist, grinding dust, and humidity are present.

Standard configurations span five sheet-size platforms:

All models ship with six layers by default, customizable to shop-specific ceiling heights and material volume. Clear space between drawers is 120 mm standard, adjustable for thicker plate bundles. Material discharge uses mechanical assistance for smooth, controlled extraction.

Electric Operation and Safety Systems

The powered electric drive extends drawers at 9 meters per minute — a speed calibrated to match laser cutting cycle times without introducing jerky motion that could shift a sheet during travel. Safety systems are integrated rather than bolted on as afterthoughts:

• Emergency stop buttons at operator reach halt all motion instantly.
• Overload prevention sensors detect resistance beyond the programmed threshold and stop the drive before damage occurs.
• ESD protection on drawer surfaces prevents electrostatic discharge from marking sensitive pre-coated or polished sheets.
• Maintenance-free ball-bearing rollers eliminate the lubrication schedule that manual guide systems require, reducing downtime and contamination risk.

Workflow Integration with Vacuum Lifters and Cranes

When a drawer extends fully, it presents the entire sheet surface to the overhead handling zone. A vacuum lifter suspended from a bridge crane can pick the sheet directly from the drawer and deliver it to the cutting table in one continuous motion. This is the configuration where a single operator manages the full storage-to-cutting flow — no second worker needed to help slide, flip, or position plates.

For shops running automated cutting cells, the Herochu drawer rack integrates with gantry loaders, servo swing-arm manipulators, and pneumatic vacuum systems that feed sheets into laser and plasma machines without human intervention. The rack becomes the structured supply point in an automated material flow.

Floor Space and Throughput Gains

Replacing horizontal stacking with vertical drawer storage converts a 2D floor footprint into 3D high-density capacity. A shop that previously allocated 25–30 square meters to scattered sheet storage can consolidate the same inventory into a single Herochu rack occupying roughly 4–5 square meters of floor area. The reclaimed space supports additional cutting equipment, improved material handling aisles, or compliance with safety walkway regulations.

Throughput improves in parallel. Retrieval time drops as operators no longer dig through stacks — each drawer opens to expose the target sheet directly. Shops report up to 40 percent faster material retrieval and up to 60 percent reduction in manual labor when vacuum lifting integration is added.

Industries and Certifications

Herochu electric drawer racks serve sheet metal fabrication facilities, laser cutting workshops, automotive component plants, aerospace manufacturers, and job shops handling mixed-material production. Every unit is CE certified and produced under ISO9001 quality management. Load testing is performed on each rack before shipment, confirming that the rated per-tier capacity holds under the dynamic forces of real workshop use.

Why Material-Specific Drawer Storage Wins

The core advantage of the Herochu system is simple: when every material has its own drawer, every sheet is protected, identifiable, and retrievable on demand. Iron stays separate from aluminum. Stainless surfaces remain pristine. Copper and brass are secured against loss and damage. FIFO becomes a natural workflow rather than a spreadsheet exercise. For any shop that stores more than one type of sheet metal — and most do — the electric drawer rack is the storage architecture that matches the complexity of modern mixed-material fabrication.
