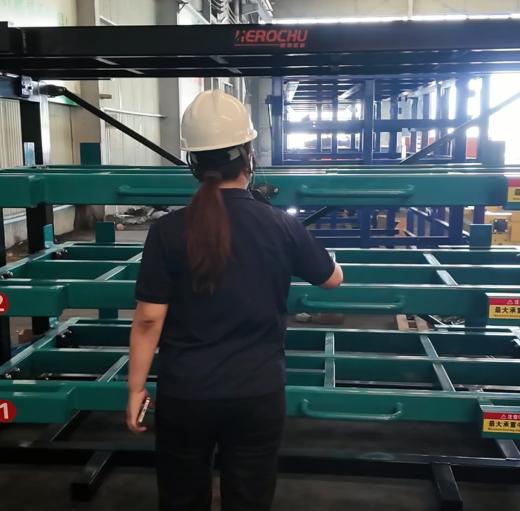

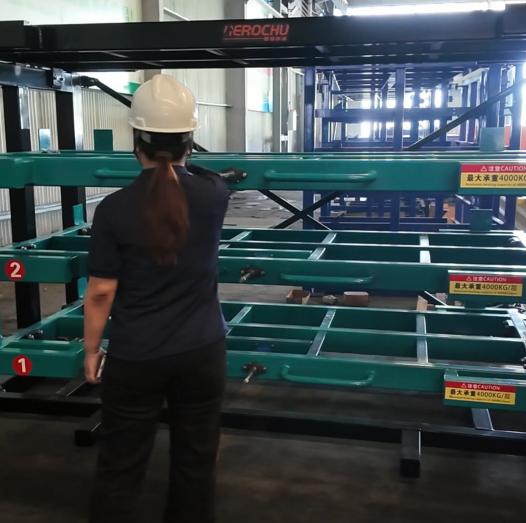

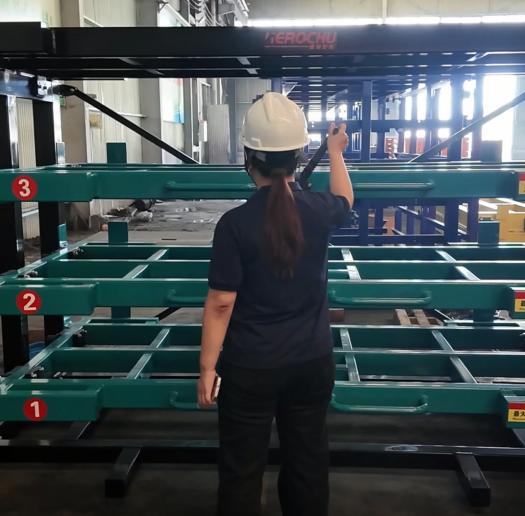

Crank-Out Steel Plate Drawer Type Racks for Organized Plate Storage

Not every fabrication shop needs or wants a fully powered electric storage system. For operations that value mechanical simplicity, lower maintenance overhead, and direct operator control, crank-out steel plate drawer type racks deliver the same organized, high-density storage benefits without a single motor or control panel. Herochu engineered this manual-drive drawer rack for shops where reliability, cost efficiency, and hands-on operation take priority.

The Manual-Drive Advantage

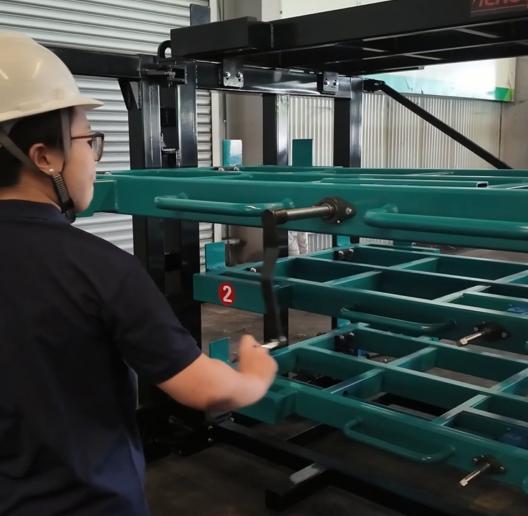

A crank-out drawer rack uses a hand-crank mechanism connected to a gear-and-rack drive system. Turning the crank rotates a pinion that engages a rack gear mounted on the drawer rail, extending the drawer smoothly along its track. No electricity, no hydraulic fluid, no pneumatic lines — just mechanical force translated through a precision gear train.

This simplicity translates into several practical advantages:

• Zero electrical dependency: The rack operates during power outages, in outdoor yards without power infrastructure, and in classified areas where electrical equipment is restricted.
• Minimal maintenance: A gear-and-rack system with sealed bearings requires periodic inspection and lubrication, but there are no motors to burn out, no control boards to fail, and no sensors to recalibrate.
• Cost efficiency: Without the electric drive system, sensors, and control hardware, the crank-out model comes in at a lower acquisition cost while delivering the same structural capacity and drawer functionality.
• Operator control: The operator feels the drawer’s resistance directly through the crank handle, giving immediate tactile feedback about load condition and track alignment.

Structural Engineering: Q235B Steel and Dual-Beam Frame

The mechanical drive is only one part of the system. The structural foundation of every Herochu crank-out rack is a main frame built from Q235B high-strength steel using a dual-beam cross-support design. This is the same frame architecture used in the powered electric models — the drawer loads and structural demands are identical regardless of how the drawer is extended.

The dual-beam configuration places two parallel support members under each drawer, distributing the load and preventing the single-rail torsion that can cause drawer tilt under full extension. When a 3,000 kg drawer rolls outward, the frame holds steady — no flex, no deflection, no drift.

Technical Specifications

The crank-out series shares the same model platform as the electric line, covering sheet sizes from 2500 × 1300 mm up to 6000 × 2000 mm:

Clear space between drawers is 120 mm standard, adjustable for thicker plate or bundle storage. Material discharge uses mechanical assistance through the crank drive — the gear ratio is selected to make a full 3,000 kg drawer manageable with comfortable crank force, typically under 40 newton-meters at the handle.

Gear-and-Rack Drive Mechanics

The drive system uses a pinion gear engaging a linear rack mounted along the drawer rail. The gear ratio is engineered to balance extension speed and crank effort — a ratio that makes the drawer extend quickly enough for practical use but with torque multiplication that keeps the handle force within comfortable operator range for the full 3,000–5,000 kg load range.

Sealed ball bearings support the drawer rollers, and the gear train runs in an enclosed housing that protects the teeth from metal dust, chips, and coolant contamination. The entire mechanism is maintenance-accessible without special tools — a technician can inspect, clean, and relubricate the drive during scheduled downtime with standard shop equipment.

Drawer Function and Material Protection

Like the powered models, each crank-out drawer extends fully to expose the complete sheet surface. This enables direct pick-up by overhead crane, vacuum lifter, or forklift-mounted handling attachment. No partial access, no sliding sheets past one another — the drawer presents the plate for clean extraction.

Material protection benefits are identical to the electric line:

• No sheet-to-sheet contact: Each drawer isolates its plates from neighboring drawers, eliminating friction damage and surface marring.
• FIFO support: Older stock in lower drawers rotates out first, preventing material obsolescence.
• Material identification: Each drawer holds a single material type or gauge, making identification immediate rather than a guessing game.
• Surface finish preservation: Stainless steel, aluminum, and pre-coated sheets retain their factory finish through the full storage cycle.

Compatible Handling Equipment

Crank-out racks from Herochu are designed for the same handling ecosystem as the powered models. When a drawer extends fully, the sheet is positioned for pick-up by:

• Overhead cranes and bridge cranes equipped with vacuum lifters or magnetic attachments.
• Forklifts with sheet-handling attachments, using the rack’s open-front access zone.
• Vacuum lifting devices suspended from crane rails for single-operator sheet extraction.
• Pneumatic manipulators for positioning sheets onto laser or plasma cutting tables.

A single operator can crank open a drawer, pick the sheet with a vacuum lifter, and deliver it to the cutting machine — a workflow that reduces the labor typically required for sheet retrieval by up to 60 percent compared to flat stacking.

Where Crank-Out Racks Fit Best

The crank-out steel plate drawer type rack is the right choice for several operational profiles:

• Small to mid-size shops that need organized storage but do not process enough sheet volume to justify electric automation.
• Outdoor or remote storage areas where electrical infrastructure is absent or unreliable.
• Cost-sensitive operations where lower capital investment with equivalent structural performance is the priority.
• Maintenance-light environments where minimizing electromechanical complexity reduces long-term operating cost.
• Shops with variable sheet volumes that need flexible, reconfigurable storage without committing to fixed automation.

Standards, Testing, and Certification

Every Herochu crank-out rack is CE certified and produced under ISO9001 quality protocols. Load testing is performed before shipment — each drawer is loaded to its rated capacity and cycled through full extension to verify that the gear-and-rack drive, the roller system, and the frame structure perform to specification under real-world conditions.

Powder-coated anti-rust treatment protects the frame in workshop and outdoor environments. ESD protection on drawer surfaces prevents static damage to sensitive materials. These are the same protective features applied across the Herochu drawer rack product line, regardless of drive type.

Choosing Between Crank-Out and Electric

The decision between a crank-out and an electric drawer rack comes down to operational volume, automation strategy, and infrastructure. Shops running high-volume laser cutting cells with rapid sheet exchange cycles benefit from the electric drive’s 9 m/min extension speed and PLC integration. Shops with moderate throughput, budget constraints, or a preference for mechanical simplicity find the crank-out model delivers the same storage density and material protection at lower cost and complexity.

Both systems share the same Q235B steel frame, the same dual-beam structure, the same drawer capacity, and the same material protection logic. The difference is the drive — and that choice belongs to the shop, not the rack.

The Value of Organized Plate Storage

Regardless of drive type, the crank-out steel plate drawer type rack from Herochu transforms how a shop manages its metal plate inventory. Floor stacking becomes organized vertical storage. Scratched sheets become protected plates. Lost stock becomes FIFO-controlled inventory. And the operator who once dug through a three-ton pile to find a specific plate now turns a crank and retrieves it in seconds. For shops that value reliability, mechanical simplicity, and cost-efficient performance, that is the storage upgrade that makes the daily difference.
