Heavy Duty Full Extension Drawer Rack for Sheet Metal Storage: 10-Ton Capacity Per Drawer

Sheet metal storage has long faced a fundamental trade-off between accessibility and density. Ground stacking optimizes density but sacrifices accessibility. Standard shelving improves access but wastes vertical space. The Herochu Heavy Duty Full Extension Drawer Rack for Sheet Metal Storage eliminates this compromise entirely through a drawer-type design that combines high-density vertical storage with single-sheet accessibility.

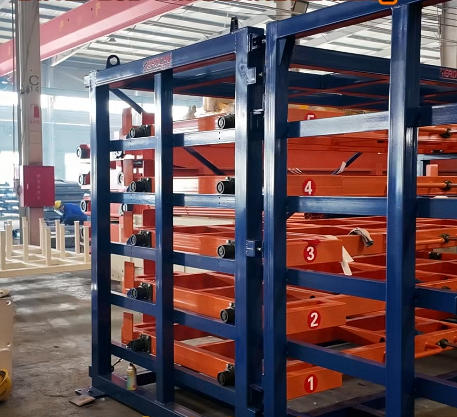

The most distinctive feature of this Herochu system is its 100% fully extendable design. When a drawer is pulled open, the entire storage surface is exposed, providing unobstructed access to every portion of the metal plate. This full extension allows cranes, vacuum suction cups, and forklifts to engage the sheet directly without awkward angling or repositioning. For workshops handling plates up to 6 meters by 2 meters, this feature alone reduces material handling time by approximately 70% compared to A-frame racks or floor stacks.

Achieving smooth operation under extreme loads requires precision heavy-duty slide rail engineering. The Herochu Heavy Duty Full Extension Drawer Rack for Sheet Metal Storage incorporates reinforced heavy-duty guide rails that maintain smooth sliding without jamming, even under an 8-ton load. Remarkably, the mechanical advantage built into these rails allows a single person to pull out the drawer by hand—no forklift or power-assisted equipment is necessary. This design consideration means that even female workers or personnel without heavy equipment certification can operate the system safely and efficiently.

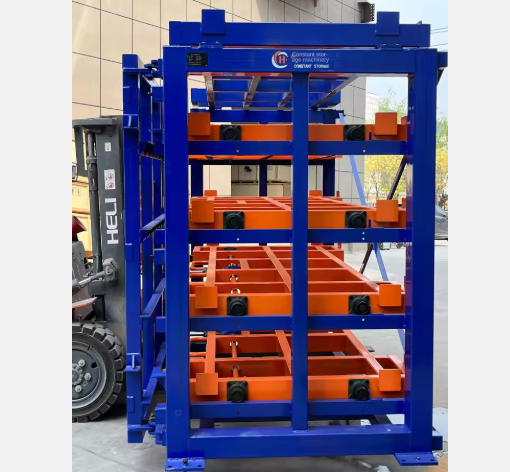

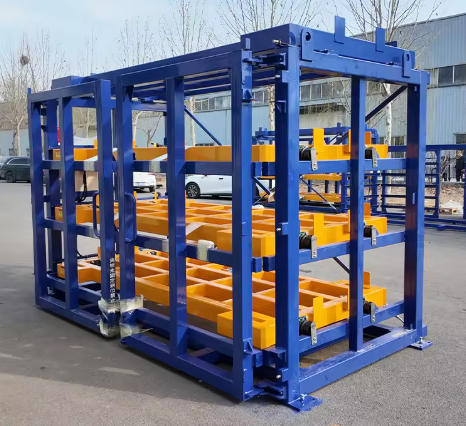

The all-steel structure of the Herochu rack delivers high strength, rugged durability, and impact resistance. Each weld undergoes firm welding with stable connections to ensure long service life under cyclic loading. The heavy-duty construction resists the torsional forces generated when unevenly loaded drawers are extended. Anti-tipping safety mechanisms include spring-loaded locking pins that automatically engage when the drawer is fully open or fully closed, preventing accidental sliding during hoisting operations. A stable base with an anti-tipping structure ensures safe full-load operation, even when multiple drawers are extended simultaneously.

Safety is further enhanced by limit devices that prevent drawers from falling or over-extending. These mechanical stops are rated for shock loads and have been tested through hundreds of thousands of cycles without failure. For facilities operating multiple shifts, this reliability translates to lower maintenance costs and uninterrupted workflows. The Herochu system also features an anti-slip design on each drawer surface, using textured pads or raised edges to prevent plates from sliding during extension or retraction, thereby protecting both the material and the operator.

From an ergonomic perspective, the labor-saving operation of the Herochu drawer rack reduces worker fatigue substantially. Traditional ground stacking requires workers to bend, lift, and maneuver heavy sheets from ground level—movements that lead to back injuries over time. The drawer design brings the sheet to the operator at waist height, allowing proper lifting posture and reducing strain. For facilities tracking OSHA recordables or similar safety metrics, this ergonomic improvement directly impacts injury rates and associated costs.

The technical specifications of the Herochu Heavy Duty Full Extension Drawer Rack for Sheet Metal Storage are engineered for demanding industrial applications. Single-layer load-bearing capacities reach 10 tons, with uniform force distribution engineered into the drawer carriage system. Maximum storage dimensions extend to 12,000mm in length and 2,500mm in width, accommodating standard sheet sizes up to 6 meters. The number of drawers per tower is configurable, with six-layer configurations common for medium-gauge materials and two- or three-layer designs used for thicker plates. Clearance space between drawers adjusts based on material handling equipment requirements, including clearance for suction cup lifting devices.

Manufacturing quality assurance at Herochu includes full process professional testing. During production, key indicators such as structural strength, dimensional accuracy, and welding process integrity are inspected and verified item by item by professional quality inspectors. Each rack undergoes pre-installation inspection of the entire machine before leaving the factory, with assembly deviations checked and corrected in real time. Only after confirming that all performance parameters meet the standards are the racks disassembled, packaged, and shipped.

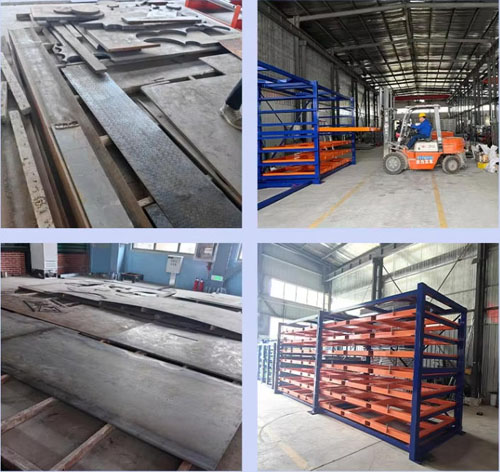

The return on investment for the Herochu drawer system becomes apparent in material search efficiency. Compared to traditional ground stacking, which averages 30 to 60 minutes per material retrieval, drawer-type shelving shortens the single material searching time to within 3 minutes. This 90% improvement in material searching efficiency significantly reduces production waiting time, allowing laser cutters and punch presses to maintain higher utilization rates. For a job shop running ten machines, recovering 50 minutes of operator search time per shift across five operators represents substantial labor cost recovery.

Applications for the Herochu system span steel plates, stainless steel sheets, aluminum sheets, copper plates, and other flat metal stocks. Industries served include sheet metal workshops, laser cutting centers, machinery manufacturing facilities, automotive stamping plants, hardware production lines, steel processing centers, and warehouse logistics operations serving construction and infrastructure projects. The flexible design adapts to different sheet thicknesses and storage demands, with customized solutions available for non-standard dimensions or specialized material handling requirements.

Factory direct supply from Herochu includes fast delivery, reliable after-sales support, and customization options for size, height, load capacity, color, and logo. For facilities operating under ISO 9001 standards, the Herochu system supports certification requirements through organized, traceable material storage. CE certification confirms compliance with European safety standards, while the company’s 16,000-square-meter self-owned factory ensures production capacity for large-scale orders and rapid turnaround times.
