Gantry Type Material Warehouse for Steel Warehouse Automation

Steel warehouses operate under a fundamental tension: the materials they store — structural beams, heavy pipe bundles, thick plate stock — are too heavy and too long for conventional pallet racking, yet too varied in dimension for fixed automated storage. The result is a material handling compromise that most facilities accept as unavoidable: wide aisles for forklift travel, floor-space-consuming flat storage for long items, and a retrieval workflow that depends on licensed crane operators working at the speed of manual rigging. The Herochu gantry type material warehouse resolves this tension by replacing the forklift-and-crane paradigm with an integrated automated gantry that addresses every storage position in a high-density rack grid.

The Gantry as the Central Material Handling Node

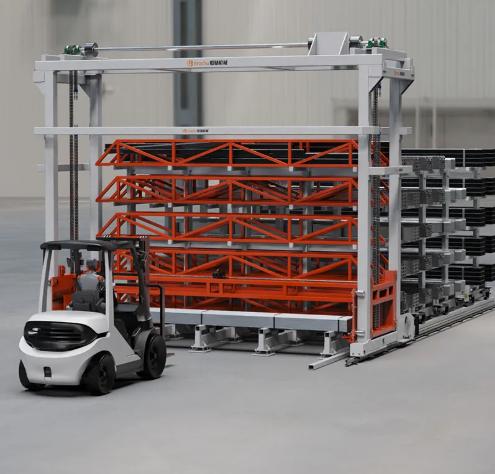

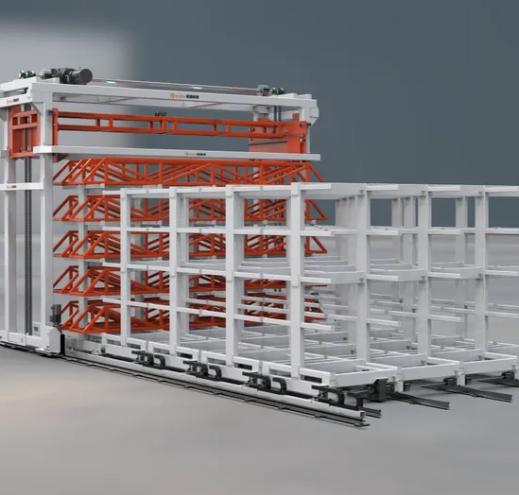

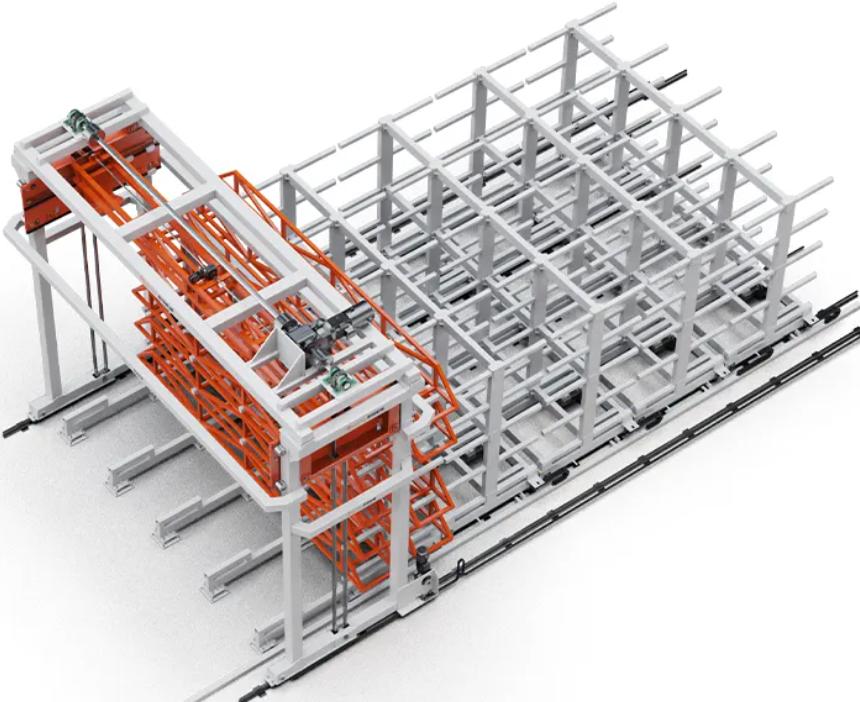

The architecture of the Herochu gantry warehouse is built around a single principle: one automated gantry, traveling a defined path, serves every storage position in the system. This eliminates the need for multiple handling vehicles, each requiring an operator and an operating aisle. The gantry moves along ground rails installed parallel to the rack row, bridging the storage grid with a bridge-type structure that carries the lifting and retrieval mechanism. Every position in the grid — every tier, every column, every storage slot — falls within the gantry’s working envelope.

This design contrasts with traditional steel warehouse layouts where a bridge crane running on ceiling-mounted rails provides the overhead lifting capacity. Ceiling-mounted cranes require structural reinforcement of the building roof frame to carry the dynamic loads of lifted steel, and their travel path is fixed at installation. The Herochu gantry runs on floor-mounted rails, transferring all vertical and lateral loads through the rail base into the floor slab. This decouples the warehouse structure from the material handling loads and permits the gantry path to be reconfigured if the facility layout changes.

High-Density Vertical Storage Architecture

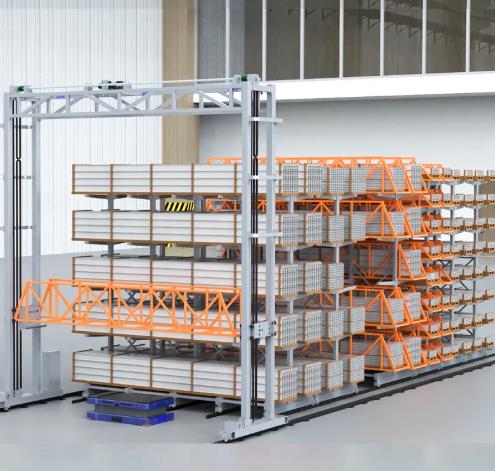

The steel warehouse’s storage capacity is defined not by its floor area but by how efficiently it uses vertical headroom. The Herochu system employs a multi-tier rack grid that stores long materials in horizontal slots stacked vertically, with the gantry addressing each tier independently. Each storage layer supports up to 5000 kg of material, and the grid typically spans five to eight customized layers per rack column, with the number of rack towers scaled to the facility’s storage volume requirements.

The critical space efficiency comes from the shared-aisle principle. Traditional racking assigns a dedicated operating aisle to each row, meaning that a warehouse with ten rack rows maintains ten aisles of dead space. The gantry system serves all rows from a single travel aisle, because the gantry bridge spans across the rack grid and the retrieval mechanism reaches into each storage position from above. This configuration can reclaim over 50 percent of the floor space consumed by a conventional layout, freeing that area for processing machines, staging zones, or additional production capacity.

Accommodating 8-Meter and Longer Industrial Profiles

Steel warehouse inventory is not uniform. A single facility may stock 6-meter square tubing, 8-meter I-beams, 12-meter structural channels, and shorter offcuts of alloy round bar. The Herochu rack grid is engineered to handle this material diversity within a single storage system. Storage positions accommodate profiles up to 8000 mm in standard configurations, with extended designs supporting materials up to 12000 mm for long-goods applications.

The modular bin architecture within each storage position allows slot dimensions to be adjusted for different material profiles. A tier configured for 150 mm square tubing can be reconfigured for 300 mm I-beams by adjusting the bin dividers and the support spacing, without modifying the rack structure. This flexibility means the warehouse is not locked into storing a single material type — it adapts as the inventory mix shifts with production requirements and procurement cycles.

Precision Positioning and Throughput Engineering

Steel warehouse operations are throughput-driven. A facility feeding a structural fabrication line must deliver the right beam to the right cutting station at a rate that matches the line’s consumption. If material supply lags production, the cutting line idles, and the cost of that idle time compounds across every downstream operation. The Herochu gantry addresses this with engineered motion profiles that balance speed and precision.

The gantry traveling speed of 5-30 m/min and lifting speed of 5-15 m/min are not arbitrary figures. They are calibrated to the acceleration and deceleration limits that safely control multi-ton material loads without inducing pendulum sway or structural shock. The ±2 mm repeat positioning accuracy ensures that the gantry addresses the correct storage position on every cycle, eliminating the positioning retries that slow down less precise systems. For a production line consuming a pipe bundle every twelve minutes, the gantry’s retrieval cycle completes well within that interval, maintaining a continuous material supply buffer at the machine infeed.

Ground Rail Technology and Structural Load Management

The floor-mounted rail system is the structural foundation of the gantry warehouse. Rails are installed on prepared concrete foundations with defined flatness and parallelism tolerances, anchored against the lateral forces generated by gantry acceleration and deceleration. The rail surface is hardened and ground to provide a low-friction travel path for the gantry wheel assemblies, and rail joints are machined to eliminate the discontinuities that cause vibration and wheel wear.

Load management extends beyond the rail itself. The rack columns transfer their stored material loads into base plates distributed across the floor area, preventing point loading that could crack or settle the floor slab. For facilities with lower floor-bearing capacity, Herochu engineers base plate dimensions and column spacing to stay within the slab’s rated capacity, ensuring that the storage structure remains stable throughout its service life.

PLC Control and Data-Driven Warehouse Operations

The gantry warehouse operates under a programmable logic controller that coordinates all motion axes and interfaces with the facility’s warehouse management system. The PLC touchscreen provides operators with real-time visibility into the storage grid, showing occupied positions, material specifications, and pending retrieval orders. Retrieval commands can be initiated manually from the touchscreen or automatically through ERP and MES integration, with the system executing production-order-driven retrieval sequences without operator intervention.

Digital inventory tracking eliminates the stock count discrepancies that plague manual steel warehouses. Every material transaction — storage, retrieval, relocation — updates the system database, providing an always-current record of stored material type, quantity, and location. Production planners query this database directly, making scheduling decisions based on actual material availability rather than periodic physical counts that may be hours or days out of date.

Scaling the Warehouse to Future Production Demand

A gantry type material warehouse is a capital investment that must serve the facility for decades. The modular rack architecture allows the storage grid to expand incrementally as production volume grows. Additional rack towers extend the grid along the gantry rail path without modifying the gantry itself. New storage tiers can be added to existing columns if ceiling clearance permits. This scalability protects the initial investment, allowing the warehouse to grow with the operation rather than being replaced when capacity requirements exceed the original design.

The Herochu gantry type material warehouse for steel warehouse applications delivers a material handling infrastructure built for the scale and weight of industrial steel operations. It replaces the labor-intensive, space-inefficient handling methods that most steel warehouses tolerate as the cost of doing business, substituting an engineered system that controls retrieval time, space utilization, and inventory accuracy as measurable operational parameters.
