Vertical MS Plate Storage Racks Manufacturer – Herochu Industrial Solutions

Manufacturing facilities dealing with mild steel plates face a persistent challenge: how to store cut pieces, partial sheets, and production remnants without sacrificing floor space or retrieval speed. As a dedicated plant vertical MS plate storage racks manufacturer, Herochu engineers storage systems that bring order to chaotic workshop floors. Our vertical pull-out rack series transforms how fabrication shops, laser cutting cells, and CNC machining centers handle residual material inventory.

Why Vertical Storage Redefines Workshop Efficiency

Traditional horizontal storage of MS plates occupies substantial floor area. Sheets stacked flat demand forklift access, wide aisles, and constant repositioning. Workers spend minutes searching for the right remnant among visually identical piles. The result is wasted time, damaged material edges, and underutilized scrap that gets sent to recycling rather than reused.

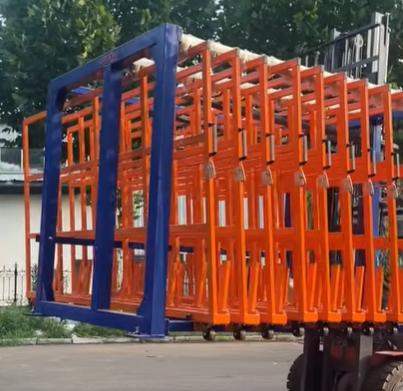

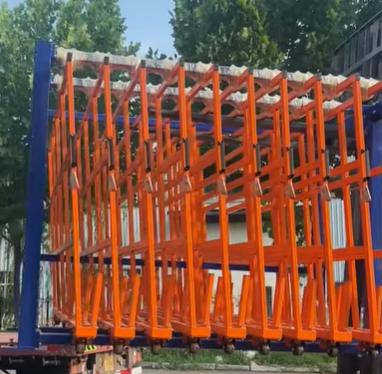

Herochu vertical MS plate storage racks solve these problems through a fundamentally different geometry. By standing sheets on edge within individual pull-out drawers, the system compresses storage into a narrow vertical footprint. A rack measuring just 2500 mm in width can accommodate up to 20 drawers, each independently accessible. This density allows facilities to position storage directly adjacent to cutting machines, eliminating transport delays between storage and production.

The pull-out drawer mechanism is the core innovation. Each drawer rolls out completely beyond the rack frame on guided tracks, exposing the full sheet surface for immediate visual identification and retrieval. Workers no longer need to lift upper sheets to reach one underneath. Every piece becomes directly accessible, which means remnants get reused rather than forgotten at the bottom of a stack.

Manufacturing Standards at the Herochu Plant

As a manufacturer rather than a reseller, Herochu controls every stage of production. Our facility produces vertical plate storage racks using high-strength carbon steel sourced from verified domestic mills. Frame components are cut by CNC plasma and laser systems, ensuring dimensional accuracy within tight tolerances. Welding is performed by certified operators following documented WPS procedures, with each structural weld inspected visually before surface treatment.

The surface treatment process involves abrasive blasting to remove mill scale and oxidation, followed by electrostatic powder coating. This produces a durable finish that resists scratching, chemical exposure, and workshop humidity. For environments with elevated corrosion risk, Herochu applies additional anti-rust primers beneath the topcoat.

Load capacity is validated through physical testing at our plant before shipment. Each drawer undergoes a load test to confirm it meets the rated capacity without deflection or track misalignment. This pre-shipment validation gives customers confidence that the rack will perform as specified under real working conditions.

Technical Specifications and Model Configuration

Herochu offers two standard models in the vertical pull-out series, both fully customizable:

Beyond these base configurations, Herochu builds racks with 10 to 15 layers depending on material thickness and ceiling height. Load capacity ranges from 100 kg per drawer for lighter applications up to 1000 kg per level for heavy-gauge MS plate storage. The clear space between layers is adjustable to accommodate different sheet thicknesses, from thin gauge panels to thick structural plates.

Material Compatibility and Workshop Integration

The vertical pull-out design accommodates a broad spectrum of workshop materials. Mild steel sheets are the primary application, but the same rack handles stainless steel, aluminum sheet, composite panels, and production remnants from laser cutting, plasma cutting, shearing, and punching operations. This versatility makes the Herochu rack a central storage node rather than a single-purpose fixture.

Integration with machining equipment is straightforward. A rack placed beside a laser cutting cell allows operators to retrieve specific remnants for nesting additional parts, reducing new material consumption. The same rack positioned near a press brake provides immediate access to blank sheets for forming operations. By decentralizing storage to point-of-use locations, Herochu racks shorten material handling loops and increase productive machine time.

The Cost Case for Vertical MS Plate Storage

Fabrication shops that implement vertical pull-out racks consistently report measurable cost reductions. The primary savings come from improved material utilization. When remnants are organized, visible, and accessible, operators reuse them instead of cutting fresh sheets. Over months of production, this reduces raw material purchases by a meaningful percentage.

Labor savings contribute equally. A single operator can locate, extract, and transport a specific sheet in under a minute using a Herochu vertical rack. The same task on a horizontal stack might require two workers and several minutes, plus a forklift. Across hundreds of daily material movements, the time differential compounds into substantial labor cost avoidance.

Floor space recovery represents a third savings vector. Vertical storage typically occupies 60 to 80 percent less footprint than equivalent horizontal storage. In facilities where floor space is constrained or expensive, this recovered area can be redirected to additional production equipment, expanding output without facility expansion.

Customization and Industry Adaptation

Herochu recognizes that no two fabrication facilities operate identically. Sheet sizes vary by industry, material mix differs by product line, and ceiling heights constrain rack dimensions. Our engineering team works directly with customers to configure racks that fit specific operational parameters.

For sheet metal fabrication shops handling standard sizes, the HC-V2513-8 model provides an optimal balance of capacity and compactness. Facilities working with larger plates benefit from the HC-V3015-8, which accommodates sheets up to 3000 x 1500 mm. When requirements fall outside standard parameters, Herochu designs custom configurations with modified drawer dimensions, specialized layer spacing, or enhanced load ratings.

The clear space between drawers is one of the most frequently customized parameters. Workshops storing thin gauge sheets may need 30 mm spacing to maximize layer count, while facilities handling thick plates require 100 mm or more. Herochu adjusts this dimension per drawer, allowing mixed-gauge storage within a single rack.

Drawer Features and Operator Safety

Each pull-out drawer in the Herochu vertical MS plate storage rack is equipped with non-skid strips along the bearing surface. These strips prevent sheets from shifting during drawer extension, protecting both the material and the operator. The guided track system ensures smooth, controlled movement even under full load, without sudden catches or jumps.

The full-extension design means the drawer travels completely outside the rack frame, providing unobstructed access to the sheet. Workers can grasp the material from any angle, position it on a handling cart, or slide it directly onto a machine table. This direct access eliminates the awkward reaching and partial extraction that cause strain injuries and material edge damage.

For safety, the track mechanism includes a positive stop at full extension that prevents accidental drawer removal. Loaded drawers remain stable throughout their travel range, and the rack frame’s broad base provides structural stability even when multiple drawers are extended simultaneously.

Conclusion

Selecting the right plant vertical MS plate storage racks manufacturer directly impacts workshop productivity, material costs, and operator safety. Herochu delivers factory-built storage systems engineered for the realities of metal fabrication environments. From high-strength carbon steel construction to pre-shipment load testing, every aspect of our manufacturing process is designed to produce racks that perform reliably under daily industrial use.

The vertical pull-out drawer concept represents a proven approach to remnant management and sheet material organization. By making every piece immediately accessible within a compact footprint, Herochu racks help fabrication shops reduce waste, save labor time, and recover valuable floor space. For facilities ready to move beyond disorganized horizontal stacking, our engineering team is prepared to configure a storage system matched to specific operational requirements.
