Gantry Loading for Industrial Laser Machines: Herochu Heavy-Duty Intelligent Handling Technology

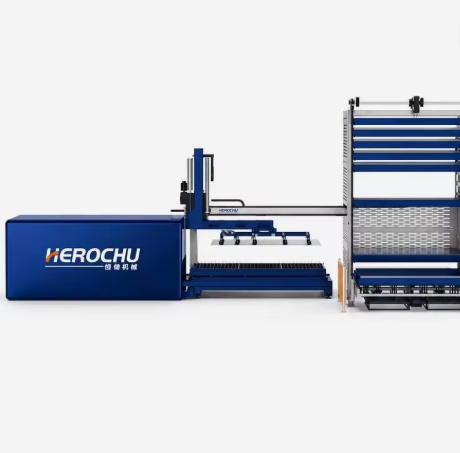

In modern industrial production, the processing capability of laser cutting equipment continues to rise, yet lagging material handling often prevents equipment potential from being fully realized. The Herochu Gantry Loading for Industrial Laser Machines series focuses on delivering high-strength, high-precision automated loading and unloading for industrial-grade laser cutting equipment. Built around a heavy-duty truss manipulator and integrating vacuum suction with mechanical gripping, the line handles carbon steel, stainless steel, aluminum alloy, copper, and other metal sheets.

In structural design, the Herochu gantry system adopts a dual-girder composite truss architecture that evenly distributes heavy bending loads across paired guidance rails. This design maintains structural rigidity and motion stability even under long-stroke operation, with longitudinal travel customizable up to 50 meters to suit large workshop layouts.

Core Technology Innovation

Adaptive Vacuum Cup Technology

The end effector of the Herochu gantry loading system uses a zone-controlled vacuum suction matrix. For raw full sheets, all vacuum zones engage to provide maximum holding force. When handling a nested sheet with finished parts, the system uses Siemens PLC control to activate only the vacuum zones in contact with solid sheet structure, keeping non-contact zones sealed to avoid pressure leakage. This adaptive capability allows the system to safely transport cut components with large cutouts, a scenario where conventional vacuum cups often fail to maintain sufficient holding force.

The cups are made of heavy-duty oil-resistant polyurethane with excellent wear resistance and aging resistance. Tool-less quick-change design means maintenance operations require no specialized technicians, significantly reducing equipment downtime.

Dual Sheet Separation System

When raw sheets are stacked, residual oil film or vacuum effects between plates often cause sticking. The Herochu separation mechanism uses a mechanical and pneumatic collaborative approach: the Z-axis first applies a micro-bending force to the sheet edge to break surface tension; compressed air then injects high-speed airflow through precision nozzles into the sheet gap to further separate stuck plates. Before the sheet enters the transfer stage, load sensors and thickness detection re-verify the actual weight to ensure single-sheet delivery.

High-Speed Servo Drive Architecture

Motion performance is guaranteed by high-torque servo motors and precision reduction mechanisms. Rack-and-pinion drive paired with planetary gearboxes achieves zero-backlash transmission, and oversized linear guides ensure smooth acceleration even under maximum load. Gantry traverse speed reaches 10 to 30 m/min, lifting speed 5 to 10 m/min, and fork adjustment speed 5 to 20 m/min. This speed configuration allows the manipulator’s loading/unloading cycle to fit entirely within the laser cutting cycle window.

Technical Specifications

The Herochu gantry loading system for industrial laser machines offers five standard models covering sheet sizes from 2500×1300mm to 6000×1500mm. The HC-RT2513-300 model has a maximum load of 300 kg, suitable for thin and medium-thickness sheet processing; the four 500-series models carry 500 kg and can handle carbon steel sheets up to 20mm thick.

The air supply requirement is 0.6-0.7 MPa with air consumption of approximately 1.5 m³/min. Repeatability of ±2mm meets the sheet placement precision required by laser cutting. All models support 3-axis single-arm or double-arm configurations, adjustable to workshop layout.

Safety Protection System

The Herochu gantry system integrates multi-level safety protection. Power and air failure protection is achieved through spring-applied mechanical brakes that instantly lock the arm position when air pressure falls below 0.4 MPa or power is interrupted. Workplace protection includes soft-cushion bumpers, 360° LED safety beacons, and emergency stop controls. A balanced counterweight system ensures arm stability during manual inspection or maintenance.

Automation modes support both semi-automatic teaching and fully automatic Ethernet integration. In automatic mode, the system communicates directly with CAD/CAM nesting software, synchronizing commands with the CNC and laser table.

Integration and Expansion Capability

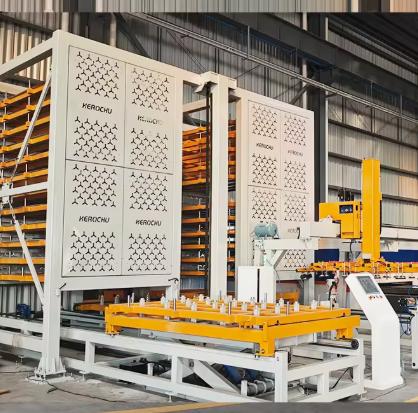

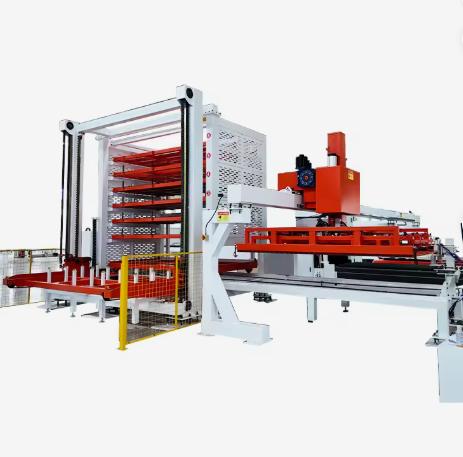

The Herochu gantry loading system is designed as a modular architecture that can interface with multi-tier sheet storage towers and automated warehouse systems. A shared single-aisle overhead structure can reclaim up to 50% of workshop floor space. The system supports dual independent Z-axis configurations for concurrent pick-and-place, suitable for production scenarios requiring high-tempo material flow.

For fabricators that already operate laser cutting equipment but have not yet automated material handling, the Herochu gantry loading system offers a low-intrusion upgrade path. Compatibility with mainstream laser cutting brands protects existing equipment investment while raising utilization to a new level.
