Vertical Pull-out Sheet Metal Scrap Rack for Storing Laser-Cutting Waste

In sheet metal processing, laser cutting, and stamping operations, scrap pieces—often called remnants or offcuts—accumulate rapidly. These irregularly sized metal sheets, if stored poorly, become a liability rather than an asset. They occupy valuable floor space, create safety hazards, and make it nearly impossible to locate specific pieces when they are needed for smaller jobs. The Vertical Pull-out Sheet Metal Scrap Rack from Herochu is specifically engineered to address this challenge, transforming scrap management from a logistical headache into a streamlined, profitable process.

The Scrap Storage Challenge

The primary issue with storing metal scraps is the chaotic nature of the material. Unlike standard raw sheets, remnants come in various sizes and shapes. Traditional horizontal stacking makes it nearly impossible to retrieve a specific piece from the bottom of a pile without moving everything on top. This leads to “inventory burial,” where usable material is left to rust or is eventually scrapped because it is too labor-intensive to retrieve.

Laser cutting operations generate particularly challenging scrap profiles. The irregular shapes, varying thicknesses, and mix of materials create storage problems that generic shelving cannot solve. The Vertical Pull-out Sheet Metal Scrap Rack addresses these challenges directly, providing a dedicated storage system designed specifically for irregular and partial sheets.

The Pull-Out Drawer Architecture

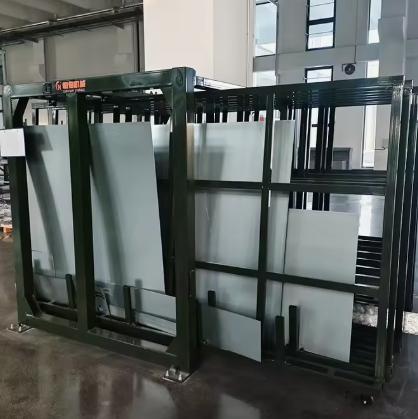

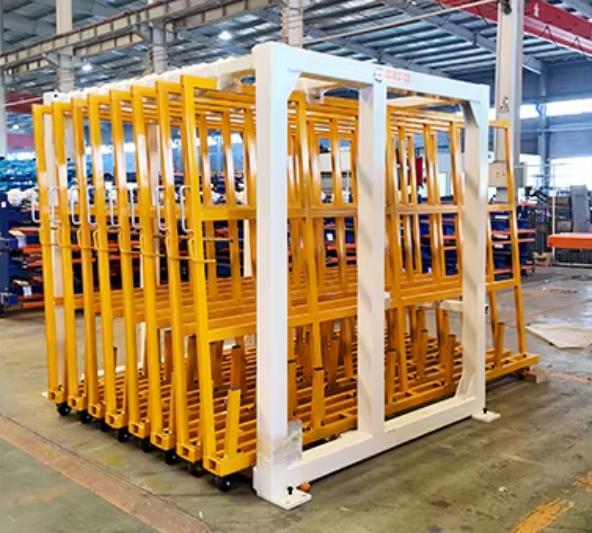

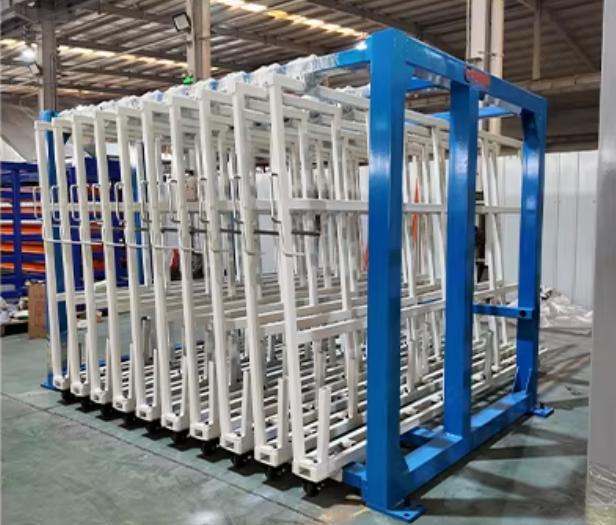

The core innovation of the Vertical Pull-out Sheet Metal Scrap Rack lies in its drawer-based architecture. Each of the 15 layers operates as an independent pull-out drawer that can be fully extended, pulling out 100% beyond the rack frame.

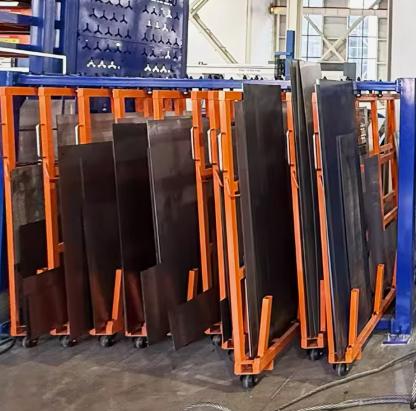

Unlike generic shelving, this rack integrates specialized lateral support bars within each pull-out drawer, allowing even oddly shaped remnants to be stored upright and separated by size or material type. This prevents bending, scratching, or mixing of different alloys—critical for maintaining material quality and traceability.

When a specific piece of scrap is needed for a job, the operator simply pulls out the relevant drawer and retrieves the material directly. The contents are immediately visible and accessible. This eliminates the time wasted searching through piles and the safety risks associated with digging through unstable stacks of heavy metal.

15 Layers for Comprehensive Scrap Organization

The Vertical Pull-out Sheet Metal Scrap Rack from Herochu features 15 independently operating pull-out drawers, providing ample capacity for even the most scrap-intensive operations. Standard models—HC-V2010-15, HC-V2513-15, and HC-V3015-15—accommodate sheet sizes ranging from 2000×1000mm to 3000×1500mm.

The 15-layer design allows facility managers to implement sophisticated sorting strategies. Remnants can be organized by size, material type, thickness, or any other criterion that supports efficient retrieval. Some facilities dedicate specific drawers to particular alloys, ensuring that material traceability is maintained. Others organize by thickness, making it easy to select the appropriate gauge for a given job. The flexibility of the 15-layer system means that the rack adapts to the facility’s workflow rather than the other way around.

Heavy-Duty Load Capacity for Dense Scrap

Scrap materials are often dense and heavy, particularly when dealing with steel plate remnants. The Vertical Pull-out Sheet Metal Scrap Rack addresses this with a single-layer load capacity of up to 1 ton, ensuring that even the heaviest remnants are handled safely.

Each drawer is constructed from premium-grade structural steel, with drawer slides featuring hardened steel ball bearings engineered for durability under full-load conditions. The robust construction ensures that the rack maintains its structural integrity even when loaded with dense steel remnants day after day. This durability is essential for facilities that handle heavy scrap materials on a continuous basis.

Adjustable Shelving for Scrap of Varying Thicknesses

Scrap materials come in a wide range of thicknesses, from thin gauge sheets to thick plate remnants. The Vertical Pull-out Sheet Metal Scrap Rack accommodates this variability with adjustable shelves that allow operators to customize compartment heights according to their specific storage needs.

The available height of each partition layer is 50mm, providing adequate clearance for stacked materials while maintaining efficient vertical density. The adjustability ensures that the rack accommodates materials of varying thicknesses without wasted space, maximizing the storage capacity of each drawer.

Powder Coated Finish for Corrosion Protection

Industrial environments are harsh on storage equipment, and scrap materials often carry residual oils, coolants, or other corrosive substances. The Herochu Vertical Pull-out Sheet Metal Scrap Rack addresses this challenge with a durable powder-coated finish that provides long-lasting protection against corrosion and wear.

This surface treatment resists the scratches, chips, and chemical degradation that can compromise lesser finishes. The powder coating ensures that the rack maintains its structural integrity and professional appearance through years of heavy use in demanding industrial environments.

Integrated Mobility for Placement Flexibility

The Vertical Pull-out Sheet Metal Scrap Rack from Herochu incorporates wheels that enable easy relocation within the workshop or warehouse. This mobility feature is particularly valuable for scrap storage, as it allows the rack to be positioned exactly where it is needed most—alongside laser cutters, near shearing stations, or adjacent to press brakes.

When production layouts change or new equipment is installed, the rack can be moved to maintain optimal material flow. The compact footprint of the Vertical Pull-out Sheet Metal Scrap Rack makes it ideal for placement in tight spaces near CNC machines, laser cutters, or shearing stations.

Waste Reduction and Material Reuse

Beyond the immediate benefits of organization and accessibility, the Vertical Pull-out Sheet Metal Scrap Rack delivers substantial waste reduction and cost savings. By enabling systematic sorting and visible categorization of leftover pieces, the system prevents remnants from being damaged or lost. This makes it seamless for operators to retrieve and reuse scrap for future small-scale jobs, reducing material waste and production costs.

When operators can see exactly what remnants are available, they are more likely to repurpose those materials for smaller jobs, prototypes, or repairs. This reduces the need to order new material for every job, lowering material costs and reducing waste. The organized access also eliminates the time wasted searching for specific pieces—time that can be redirected to productive work.
