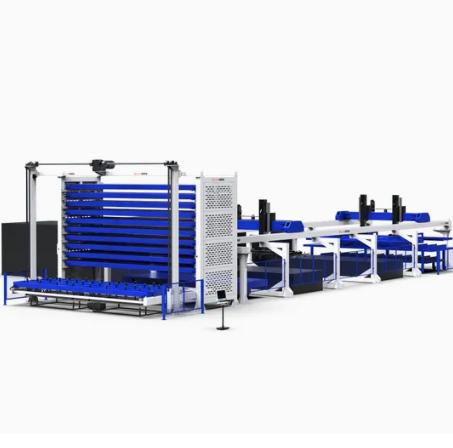

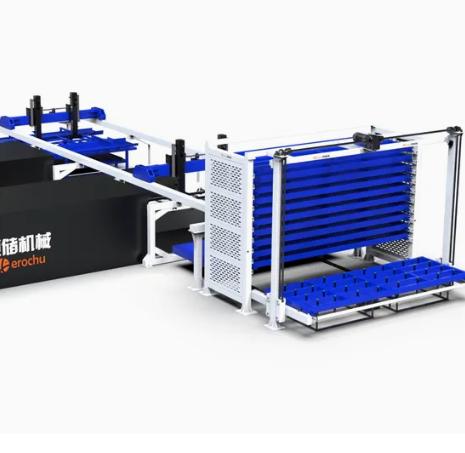

Gantry Loading and Unloading System for Laser Cutting: Herochu Automated Plate Handling

In modern metal fabrication, fiber laser cutting machines have reached remarkable cutting speeds. A 12kW or 20kW laser source can profile complex geometries in a matter of minutes. Yet the real bottleneck in many workshops is not the laser itself—it is the material handling that surrounds each cutting cycle: raw sheet loading, finished part removal, and skeleton extraction. The Herochu Gantry Loading and Unloading System for Laser Cutting is engineered specifically to close this efficiency gap.

Herochu specializes in heavy-duty, customized gantry truss systems and intelligent loading/unloading manipulators designed to optimize material handling across CNC machining, metal fabrication, laser cutting, and smart warehouse logistics. The brand is known for structural rigidity, control precision, and consistent operating stability.

Core Technology and Working Principle

Integrated Vacuum Suction and Gripper System

The Herochu gantry system combines computer-controlled vacuum suction with mechanical gripping in a composite architecture. The vacuum cup array extracts raw sheets from the stack, using multi-point pressure monitoring to verify suction integrity. The mechanical gripper handles finished parts and skeleton removal, eliminating the inefficiency of manual carrying.

The system features intelligent zone-controlled vacuum technology. For an uncut full sheet, all vacuum zones engage to provide maximum holding force. For a nested sheet with finished parts or a fragile skeleton, only the vacuum zones in contact with solid material activate, while the remaining zones stay sealed to maintain pressure. This adaptive strategy allows the system to handle the full range of sheet types, from full plates to complex cut components.

Sheet Separation and Double-Pick Detection

Residual oil film on stacked sheets often causes adjacent plates to stick together. The Herochu system integrates a multi-stage separation cycle: the Z-axis applies a localized micro-bending force to lift the sheet edge, while compressed air nozzles inject high-speed airflow into the sheet gap. Before the transfer motion begins, integrated load sensors and thickness detection compare the measured sheet weight against the current job parameters, blocking double-sheet mis-feeds at the source and protecting the laser cutting head from accidental collision.

High-Speed Gantry Motion Architecture

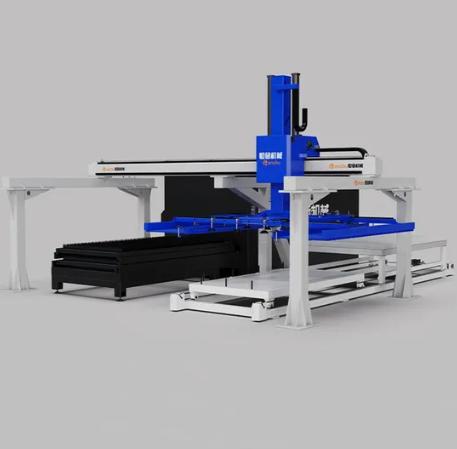

The Herochu gantry uses a dual-girder composite truss design that evenly distributes heavy bending loads across paired guidance rails. The system is available in 3-axis single or double-arm configurations, with long-stroke designs up to 50 meters and load capacities from 50 kg to over 1000 kg. The gantry traverse speed reaches 10 to 30 m/min, lifting speed is 5 to 10 m/min, and repeatability is held within ±2 mm. High-resolution encoders and closed-loop servo systems ensure that sheet placement matches the programmed nesting layout precisely.

Technical Parameters

Application Benefits and Return on Investment

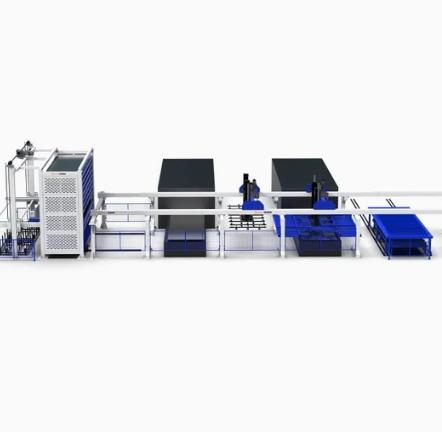

The Herochu gantry loading and unloading system raises laser cutter utilization from 50–60% under manual operation to over 85%. The core value lies in removing material handling from the critical path and turning it into a background service that runs in parallel with the cutting cycle. A single gantry manipulator can serve two fiber laser cutters simultaneously, clearing skeletons and reloading sheets on one machine while the other continues cutting.

On labor optimization, the system replaces multi-operator manual lifting with single-operator supervision, reallocating labor to higher-value tasks. Scheduled uptime remains above 98%, and low maintenance requirements typically deliver capital payback within 4 to 6 months. For metal fabricators pursuing efficiency gains and cost control, the Herochu gantry system offers a practical automation upgrade path.
