Industrial Laser Cutting Gantry Loading and Unloading System

The Herochu gantry loading and unloading system is a fully automatic metal sheet handling solution for industrial laser cutting equipment, integrating vacuum suction loading, mechanical gripper unloading, sheet separation detection, and intelligent control. The system is designed to eliminate manual material handling from the laser cutting process, achieving continuous automated operation from raw sheet loading to finished part unloading.

Herochu focuses on the research, development, and manufacture of industrial automation and gantry manipulator systems. Its product line covers heavy-duty truss systems, intelligent loading/unloading manipulators, and supporting storage and logistics equipment. The brand holds CE, UE, and ISO 9001 certifications and exports to industrial markets worldwide.

System Composition and Workflow

Core Components

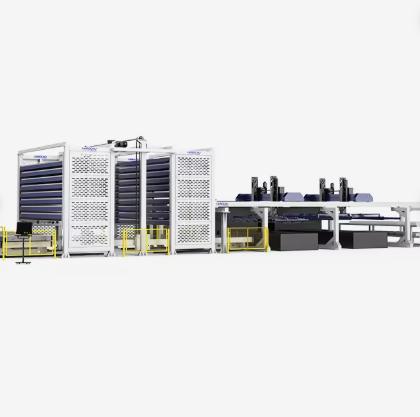

The Herochu gantry handling system comprises the following key modules: a composite truss manipulator matched to the laser cutter, a double-layer electric exchange cart, a CNC control system, a vacuum control system, and an optional three-dimensional storage warehouse. Together with the laser cutter, the system forms an automated sheet production cell that executes the complete flow from raw material storage, automatic separation, automatic loading, cutting, to automatic unloading.

Automated Work Sequence

The working cycle begins with extracting a raw sheet from the storage rack or loading station. The vacuum cup matrix picks a single sheet from the top of the stack under computer control, while the integrated separation device operates synchronously to eliminate sheet sticking. The sheet is precisely placed on the laser cutter’s exchange table or loaded directly onto the cutting bed. After the cutting program completes, mechanical forks and gripping devices work together to move finished parts and the skeleton out of the cutting area, transferring them to the lower exchange cart or finished collection area. The system then automatically enters the next cycle for continuous, uninterrupted operation.

Double-Layer Exchange Cart Mechanism

The double-layer electric exchange cart is a key component ensuring continuous production. The upper layer pre-loads sheets to be cut, while the lower layer receives completed parts and skeletons. While the laser processes the current sheet, the manipulator can pre-position the next sheet on the exchange cart, fully parallelizing loading/unloading with the cutting process. This parallel architecture minimizes laser cutter waiting time.

Technical Parameters

The Herochu gantry handling system offers five standard models with the following specifications:

Intelligent Control and Safety System

Control System Architecture

The Herochu system uses Siemens PLC as the core controller, paired with an Omron sensor network for comprehensive status monitoring. The touchscreen HMI provides an intuitive operating interface supporting parameter configuration, job recall, and real-time status display. The system supports mainstream industrial communication protocols including PROFINET, EtherNet/IP, and Modbus, enabling data exchange with various CNC systems and factory-level MES.

Safety Protection Mechanisms

The safety design covers power failure, air pressure anomalies, and collision protection. Spring-applied mechanical brakes automatically lock when power is lost or air pressure is insufficient, preventing accidental load drops. The work area is equipped with safety light curtains and physical guards that trigger automatic shutdown when personnel enter the danger zone. LED safety beacons and emergency stop buttons provide additional operational safety.

Operational Benefits and Investment Value

Fabricators deploying the Herochu gantry handling system gain improvements across multiple operational dimensions. Laser cutter utilization rises from about 60% in manual mode to over 85%, with significant single-shift capacity gains. Material handling cycle times shrink by 40% to 50%, freeing operators from repetitive physical labor for higher-value tasks such as equipment monitoring and quality inspection.

The system’s high-reliability design keeps scheduled uptime above 98% with low maintenance requirements. Combined with labor cost savings and capacity gains, capital payback is typically within 4 to 6 months. For metal fabricators facing rising labor costs and intensifying market competition, the Herochu gantry handling system provides a quantifiable, predictable automation upgrade path.
