Heavy-Duty Cantilever Racking for Steel Tubes, Bars & Structural Profiles

Industrial fabrication shops move tons of structural steel through their bays every day, yet many still store long materials on floor-level dunnage or in fixed-arm racks that demand forklift-width aisles between every row. The mismatch between material value and storage infrastructure costs money in three forms: damaged stock from compression and weather exposure, wasted labor hours spent searching and repositioning, and lost floor area that could house additional production equipment instead of idle inventory.

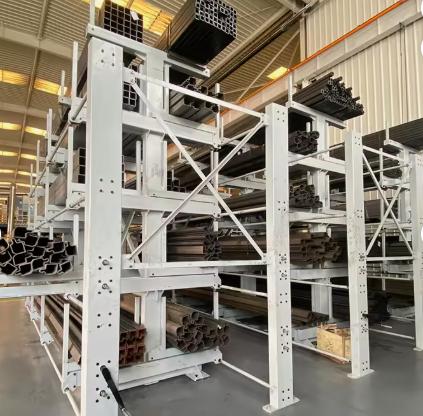

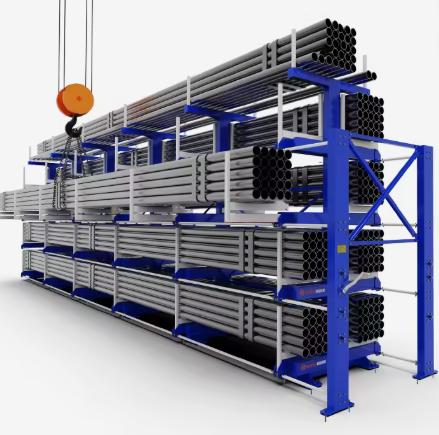

Herochu heavy-duty cantilever racking systems are purpose-built to close this gap. Designed around Q235B structural steel frames with independently extendable arms, these racks store steel tubes, solid bars, and structural profiles in classified compartments that an operator can access one tier at a time — without maneuvering a forklift into a narrow aisle.

Storage Density That Changes Facility Layout Math

The economic argument for high-density cantilever storage begins with real estate cost. In most industrial parks, floor space costs between four and eight dollars per square foot per year when lease, utilities, and maintenance are bundled. A single fixed-aisle cantilever row covering 200 square meters of floor might store 800 linear meters of 6-meter pipe. A Herochu telescopic cantilever row occupying the same footprint stores 1,600 to 2,400 linear meters because the space that was reserved for forklift turning radius becomes additional rack bays.

This density gain often eliminates the need for off-site overflow storage — a recurring expense for service centers that rent yard space for slow-moving inventory. Bringing that material back under the main roof reduces double-handling, protects it from rain and UV exposure, and makes it available for same-day picking when a rush order lands.

Structural Engineering for Asymmetric Loads

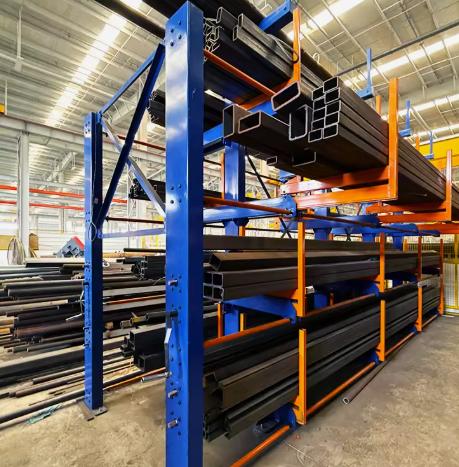

A cantilever arm holding 5,000 kg of nested steel tube exerts enormous bending moment at the column connection point. Herochu addresses this with a dual-beam crossbar design rather than a single cantilever beam. Two parallel longitudinal members — one on each side of the column — create a box-section moment connection that resists torsion far better than a single-beam mount.

This matters in practice because steel bundles rarely distribute weight evenly. A bundle of mixed-diameter seamless tubes may concentrate 70 percent of its mass in the front third of the arm. On a single-beam cantilever, this forward weight bias twists the arm and eventually deforms the connection bracket. The dual-beam configuration on Herochu racks creates a wider stance at the pivot point, transferring torque into the column through two separated load paths. Independent engineering analysis typically shows deflection under maximum load staying within 2 mm at the arm tip — values that preserve arm alignment over thousands of extension and retraction cycles.

Material Protection Through Compartmentalized Storage

Steel distributors lose measurable revenue to material degradation that happens during storage rather than during processing. Mill scale chips off when tubes roll against each other. Galvanized coating scratches when profiles shift under stack weight. Threaded pipe ends deform when heavier bundles rest on top of them. These damages are cumulative, silent, and almost entirely avoidable through proper compartmentalization.

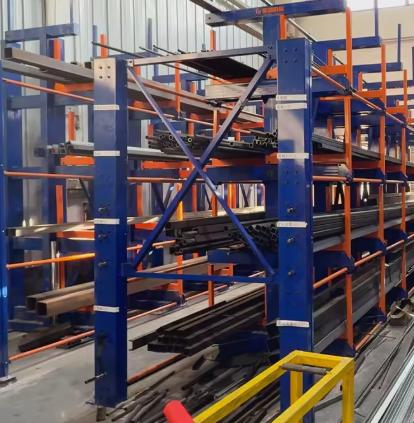

Each Herochu rack tier functions as an isolated storage cell. Pipes in compartment A never bear the weight of pipes in compartment B. Profiles in tier three do not press down on tubes in tier two. Because every compartment extends independently, the operator never needs to lift bundles off other bundles — the target material is always the only material exposed at the point of access. Surface quality stays consistent from receiving to issue, cutting downstream reject rates at fabrication and finishing stations.

Classified Storage for Inventory Control

The organizational advantage of independent compartments extends beyond physical protection. When every tier holds a single material grade, diameter, and length combination, inventory counting shifts from estimation to exact count. A warehouse supervisor walking the rack row can verify stock levels in under a minute per bay because the contents of each cell are visible from either face and never mixed.

This granularity also enables practical first-in-first-out rotation — a requirement for carbon steel pipe susceptible to atmospheric corrosion, and for alloy grades where heat number traceability matters for end-user certification. New receipts load from the rear face while production pulls from the front face, cycling inventory without manual restacking.

Manual and Electric Operation Across Fleet Sizes

Manual crank racks serve operations where a single bay handles a dozen picks per shift. The worm-gear hand crank provides mechanical advantage sufficient for one operator to extend a fully loaded compartment without assistance. The motion is smooth and controlled — no sudden acceleration that could shift a loosely banded bundle — and the crank handle returns to a neutral locked position when released.

Electric drive versions scale to high-throughput environments where dozens of picks per hour cross multiple bays. Each bay carries its own push-button control station with individual extend and retract buttons per tier. The interlock system prevents a second tier from extending while one is already deployed, eliminating the combined cantilever moment that could destabilize the column. For facilities with a warehouse management system in place, Herochu provides integration protocols that let the WMS send pick commands directly to the correct bay and tier — the rack is already extended and waiting when the operator arrives with the crane or forklift.

Specification Range

The standard Herochu cantilever rack product line covers four frame models. HC-G6053 and HC-G6053S handle 6,000 mm material lengths with 5 configurable tiers rated at 3,000 kg per compartment. HC-G9065 accommodates 9,000 mm stock across 6 tiers at 5,000 kg per level. HC-G12065 supports 12,000 mm lengths with 6 tiers at 5,000 kg per compartment. All models feature dual-side mechanical-assisted discharge for flexible loading and retrieval workflows.

Clear vertical spacing between arms is specified at order to match the customer’s maximum bundle diameter, typically 500 mm to 800 mm. Arm length and compartment width follow the same custom-specification approach — the rack is built around the material, not the other way around.

Long-Term Value for Steel Handlers

A properly specified cantilever rack from Herochu operates for 15 to 20 years in a typical fabrication environment with basic periodic inspection of the drive mechanism and arm alignment checks. The Q235B frame carries corrosion-resistant factory coating rated for indoor industrial exposure. Electrical components in motorized models use IP54-rated enclosures that stand up to the ambient dust and occasional coolant mist common in metalworking facilities.

For businesses evaluating whether the capital cost of a heavy-duty telescopic system pencils out against continued use of floor stacking or fixed racking, the variables that dominate the equation are labor hours per pick (typically cut by 60 to 70 percent), floor area reclaimed (typically 50 to 65 percent), and material damage reduction (variable by operation but consistently positive). When all three factors combine across a full year of operation, payback periods under 18 months are common for facilities handling more than 500 metric tons of long stock annually.
