Pneumatic Cantilever Manipulator for Laser Feeding Machines

Laser cutting machines represent a significant capital investment, and their return depends on sustained beam-on time. Every second the laser head waits for the next plate to be loaded is a second of lost cutting capacity. Manual plate loading into laser cutting machines consumes three to five minutes per sheet — time that accumulates across a shift into hours of idle laser time. The Herochu pneumatic cantilever manipulator is engineered to close this gap, providing automated sheet metal feeding that loads raw plates onto the laser cutting machine table in a fraction of the manual cycle time.

Cantilever Swing Design for Laser Machine Access

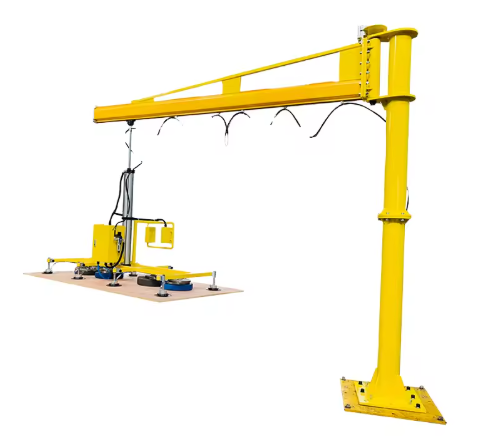

The Herochu manipulator employs a cantilever arm that swings horizontally between the raw material platform and the laser cutting machine tabletop. This swing design provides two structural advantages for laser feeding applications.

First, the cantilever geometry keeps the loading mechanism at table height, eliminating the vertical clearance that overhead cranes and gantry loaders require. Laser cutting machines with enclosed safety cabins, exchange tables, or overhead exhaust systems often lack the vertical space for gantry-based loading. The Herochu cantilever arm operates within the horizontal plane, fitting into the gap between the material staging area and the machine cabin without structural modification.

Second, the swing rotation path provides direct access to the laser machine table without intermediate stations. The arm picks up the plate from the raw material platform, rotates to the machine table, releases the plate, and returns — a single-axis motion that is simpler, faster, and more maintenance-accessible than multi-axis robotic arm systems.

Vacuum Suction Feeding for Laser-Quality Surface Protection

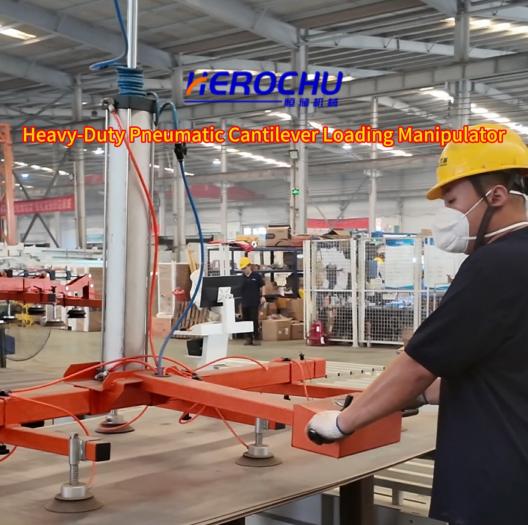

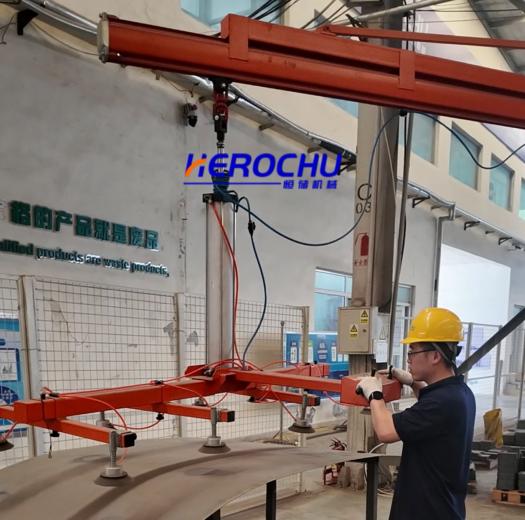

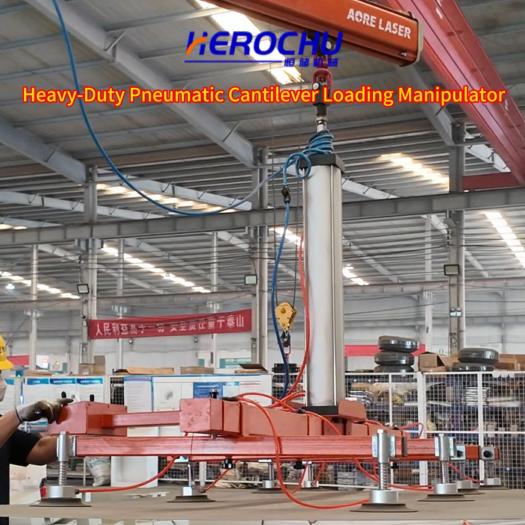

Laser cutting demands clean, flat plate surfaces. Scratches, dents, and oil contamination on the plate surface can affect cut quality, cause optical sensor calibration errors, and reduce the effectiveness of the machine’s automatic focusing system. The Herochu manipulator uses vacuum suction cups to grip and transport plates, avoiding the surface damage that mechanical clamps, chains, or magnetic chucks can inflict.

The suction cup configuration scales with plate weight capacity. The HC-R3015-500 model uses 15 cups of 200 mm diameter for plates up to 500 kg. The HC-R3015-1000 model deploys 118 cups of 250 mm diameter for plates up to 1000 kg. The vacuum system distributes the lifting force across the cup array, preventing point-loading that could bend thin gauge plates during the lift and rotation cycle.

Sheet Separation for Thin Gauge Laser Blanks

Laser cutting machines frequently process thin gauge sheet metal — material from 8 mm down to the minimum feeding width of 1250 × 1000 mm. Thin sheets stacked on a raw material platform tend to adhere through surface tension, cutting fluid film, or static charge. When a vacuum system lifts the top sheet, the sheet below often follows, creating a double-plate pickup.

Double-plate loading into a laser cutting machine causes immediate problems. The cutting program is written for a single plate thickness — two plates stacked together double the material thickness, causing the laser to cut incompletely or deflect the beam, potentially damaging the cutting head. The Herochu system addresses this with an integrated sheet separation function. When thin gauge material is selected on the PLC touch screen, the system activates separation before each lift cycle, breaking the adhesion between stacked sheets and ensuring single-plate extraction.

Laser Feeding Cycle Sequence

The standard Herochu cantilever manipulator cycle for laser machine feeding follows this sequence:

Stage 1 — Material preparation. Raw sheet metal plates are staged on the material platform adjacent to the laser cutting machine. The manipulator arm is positioned at the home position above the platform.

Stage 2 — Plate pickup. The suction cup tooling descends and engages the top plate from the raw material stack. The sheet separation function activates for thin gauge material. The vacuum system secures the plate across the suction cup array.

Stage 3 — Rotation to laser table. The cantilever arm rotates to position the plate above the laser cutting machine tabletop. The 2800 mm horizontal stroke provides the reach to span the distance between the staging platform and the machine table.

Stage 4 — Plate release. The arm descends and the vacuum releases, depositing the plate on the machine table in the reference loading position. The arm lifts clear and returns to the raw material platform for the next pickup cycle.

Stage 5 — Cutting and finishing. The laser cutting machine processes the loaded plate. Finished cut parts and skeletons are removed manually or through a secondary handling system, and the cycle repeats.

Safety Systems for Laser Machine Environments

Laser cutting environments combine high-power optical systems, compressed gas supplies, heavy plate loads, and operator access requirements. The Herochu manipulator is engineered with safety systems matched to this environment.

Vacuum retention on utility loss. If electrical power or compressed air is interrupted during the loading cycle, the vacuum system holds the plate on the suction cups for a minimum of five minutes. This retention period prevents a plate from dropping onto the laser machine table, cutting head, or exchange table mechanism during a utility interruption — a critical protection given the replacement cost and alignment sensitivity of laser cutting optics.

Emergency stop braking. The drive system includes automatic braking on emergency stop. When the emergency stop is activated, the arm halts at its current position and resists external force. The braking prevents the arm from swinging into the laser machine cabin, operator walkway, or material platform during an emergency event.

Pneumatic circuit standardization. All gas pipes use a strict color code: blue for air intake, red or orange for air output. Gas pipe connectors carry identification labels. This standardization ensures that maintenance personnel can trace and service the pneumatic circuit without risk of reversing the air supply, which could compromise vacuum system performance.

Bilingual safety documentation. Safety warning labels, maintenance labels, and operation instructions are affixed at key points on the equipment. Button function identifiers are printed in both Chinese and English, supporting deployment in international fabrication facilities.

Plate Capacity and Model Selection

The Herochu cantilever manipulator model lineup covers the plate dimensions and weights common in laser cutting operations:

Facilities cutting standard 3000 × 1500 mm sheets select from the HC-R3015 series. Facilities processing larger structural plates up to 4000 × 2000 mm select the HC-R4020 series. Minimum feeding width across all models is 1250 × 1000 mm, and the power mode is electric throughout the range.

Control System and Operation

The Herochu manipulator operates through a PLC touch screen interface that communicates with the control system via network cable. The touch screen provides access to cycle parameters, suction cup activation sequencing, arm speed control, and mode selection between manual and automatic operation. Operators manage the full loading cycle from this interface — no manual plate feeding is required once the raw material stack is staged.

In automatic mode, the system runs continuous feeding cycles synchronized to the laser cutting machine cycle time. The operator monitors the process from the control panel and manages finished part removal. This single-operator model reduces the labor allocation required for laser machine loading from two or three workers to one, lowering operating costs while sustaining throughput.

Installation, Certification, and Warranty

The manipulator frame is constructed from steel for durability and wear resistance. The modular assembly structure supports efficient installation and disassembly. Herochu provides experienced technical engineers to guide the full installation and commissioning process, including mechanical assembly, pneumatic and electrical connection, PLC configuration, and operator training.

The equipment is produced under factory direct sales at wholesale pricing. OEM and ODM services are available for customized configurations. The system carries CE, ISO, and EU certifications and is backed by a five-year warranty covering structural and drive components under normal operating conditions.

For laser cutting operations seeking to maximize beam-on time through automated plate feeding, the Herochu pneumatic cantilever manipulator provides a safety-engineered, vacuum-suction loading solution that integrates directly with existing laser machine installations and sustains material flow across continuous production cycles.
