Heavy-Duty Servo Swing Arm Manipulator for Welding Lines

Welding production lines demand precision, repeatability, and unwavering safety under continuous load cycles. The Herochu heavy-duty servo swing arm manipulator is engineered specifically for these requirements, delivering automated sheet metal loading and unloading that integrates directly into welding cell workflows. Where manual handling introduces variability — plate misalignment, surface scratches, operator fatigue — the Herochu servo-driven system maintains consistent positioning cycle after cycle, ensuring that every workpiece arrives at the welding station oriented, secured, and ready for joining.

Servo-Driven Swing Arm Architecture

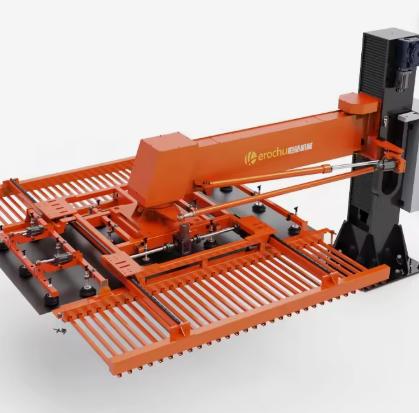

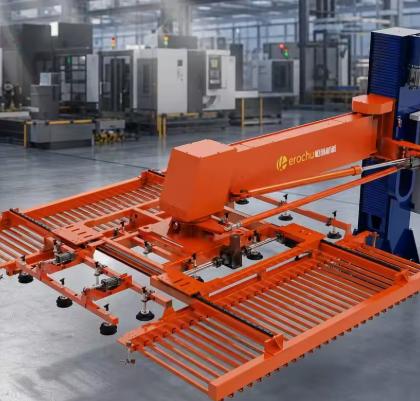

At the core of the Herochu manipulator is a servo-driven swing arm mechanism that rotates between the raw material platform and the welding fixture table. The arm employs a horizontal stroke of 2800 mm, providing sufficient reach to span multiple workstation positions without repositioning the base unit. This extended stroke proves particularly valuable in welding lines where raw material staging areas sit at a distance from the robotic welding cell or press station.

The servo motor drive eliminates the need for manual plate feeding. Operators press a single button on the control panel, and the arm executes the full pick-and-place sequence: extraction from the raw material stack, rotation to the target station, controlled release, and return to home position. This button-driven operation reduces labor costs while removing the physical strain associated with lifting metal plates weighing up to 1000 kg.

Vacuum Suction Cup Tooling System

The Herochu swing arm manipulator uses a vacuum suction cup array to grip raw sheet metal plates. Depending on the model configuration, the system carries between 15 and 118 suction cups, with cup diameters ranging from 150 mm to 250 mm. The tooling layout is matched to the maximum plate dimensions and weight capacity of each model:

For thinner gauge metal sheets, the Herochu system engages a sheet separation function that prevents double-plate pickup — a critical feature when handling lightweight blanks that tend to stick together in a raw material stack. The separation mechanism ensures that only a single plate is extracted per cycle, preventing double-loading into the welding fixture.

Safety Systems for Continuous Welding Operations

Welding environments carry inherent hazards — high temperatures, sparks, heavy moving loads, and proximity between operators and automated equipment. The Herochu manipulator addresses these risks through multiple layers of protection.

Power-off and air-off retention: If power or compressed air supply is interrupted during operation, the vacuum system holds the plate on the suction cups for a minimum of five minutes. The workpiece will not drop from the arm, giving operators time to safely clear the area and restore utilities without risking a free-falling plate.

Emergency stop braking: The servo drive is configured with automatic braking on emergency stop activation. When the emergency stop is engaged — by operator, by safety interlock, or by fault detection — the arm halts immediately and holds position. The braking system prevents uncontrolled arm swing that could strike personnel or adjacent equipment.

Bilingual safety labeling: The device is affixed with safety warning labels, maintenance labels, and operation instructions at key points. Button function identifiers are printed in both Chinese and English, supporting deployment in international manufacturing facilities and mixed-language workforces.

Gas pipe color coding: All pneumatic lines use standardized color identification — blue pipes for air intake, red or orange pipes for air output. Every gas pipe connector carries a label for correct identification and maintenance, reducing the risk of misconnection during service.

Integration with Welding Line Workflows

The Herochu servo swing arm manipulator operates in both manual and automatic modes. In automatic mode, the system runs continuous loading cycles synchronized to the welding cell takt time. The PLC communicates with the touch screen via network cable connection, allowing operators to adjust cycle parameters, suction cup activation sequences, and arm positioning from a single interface.

Typical welding line integration follows this sequence:

1. The suction cup tooling extracts raw plate material from the staging platform.
2. The arm rotates to the welding fixture or cutting equipment tabletop.
3. The plate is positioned and released for clamping or cutting.
4. The arm returns to the raw material platform for the next pickup cycle.
5. Finished welded panels can be manually removed or routed to the next station.

For welding lines that feed pre-cut blanks into robotic welding cells, the Herochu manipulator replaces the manual loading step between the nesting/cutting stage and the welding station. The result is a continuous material flow that prevents bottlenecks at the loading point and eliminates the variability that manual handling introduces into weld joint alignment.

Structural Durability and Installation

The manipulator frame is constructed from steel, engineered for resistance to wear under repeated loading cycles. The modular assembly structure allows for straightforward assembly and disassembly, which reduces installation time and minimizes space waste on the production floor. Standard dimensions are optimized for compatibility with common machine tool table heights and raw material platform configurations.

Herochu provides experienced technical engineers to guide the full installation and commissioning process. The on-site engineering support covers mechanical assembly, pneumatic and electrical connection, PLC programming, and operational training for line workers and maintenance staff.

Model Selection for Welding Applications

Selecting the correct Herochu model depends on the plate dimensions and weights typically processed on the welding line. The HC-R3015 series handles plates up to 3000 × 1500 mm with thicknesses from 8 mm to 20 mm and weights from 300 kg to 1000 kg. The HC-R4020 series extends the feeding width to 4000 × 2000 mm for larger structural plates common in heavy equipment welding fabrication.

Minimum feeding width across all models is 1250 × 1000 mm, ensuring that the system can handle smaller blanks without reconfiguration. The power mode is electric throughout the range, with the servo drive providing precise control over arm speed and positioning.

Production Quality and Throughput Benefits

Welding lines that adopt the Herochu servo swing arm manipulator report measurable improvements in two areas. Production quality increases because automated loading delivers consistent plate positioning — every workpiece enters the welding fixture in the same orientation, which stabilizes weld gap dimensions and reduces defect rates in downstream inspection. Production efficiency increases because the system eliminates the cycle-time variability that human fatigue introduces, allowing the welding line to sustain steady throughput across shifts.

The system is particularly suited to high-precision welding scenarios — precision machining support, electronic component housing assembly, automotive structural welding — where plate position tolerance directly affects weld quality and structural integrity.

Manufacturing and Certification

Herochu manufactures the servo swing arm manipulator under factory direct sales at wholesale pricing, offering OEM and ODM services for customized configurations. The equipment carries CE, ISO, and EU certifications, meeting international standards for industrial machinery safety and electromagnetic compatibility. A five-year warranty backs the long-term reliability of the system, covering structural and drive components under normal operating conditions.

For welding fabrication facilities seeking to automate material loading without committing to a full robotic cell, the Herochu heavy-duty servo swing arm manipulator provides a targeted, proven, and safety-engineered solution that integrates into existing line layouts with minimal disruption.
