Heavy Duty Hand Cranked Pipe Storage Racks: Maximizing Safety and Space in Steel Industries

The steel and construction industries face a unique set of logistical challenges. The materials they handle—pipes, beams, and shafts—are not only heavy but often unwieldy and dangerous if not stored correctly. Heavy Duty Hand Cranked Pipe Storage Racks from Herochu are designed to mitigate these risks while maximizing the density of storage. This system is a testament to industrial durability, capable of withstanding the punishing environment of a steel fabrication shop or a busy construction depot.

Category Hand Cranked Pipe Rack Tag Heavy Duty Hand Cranked Pipe Storage Racks

Heavy Duty Hand Cranked Pipe Storage Racks: Maximizing Safety and Space in Steel Industries

Robust Construction for Harsh Environments

The “Heavy Duty” designation of the Herochu racks is defined by the quality of materials used. Constructed from premium carbon steel, these racks are engineered to resist bending and fatigue. The structural components undergo rigorous treatment, including pickling and phosphating, before being finished with a durable powder coat. This process ensures resistance against rust and corrosion, which is essential in environments where raw steel pipes might introduce moisture or oil to the storage area.

The rack’s base is elevated 330mm from the ground, a design choice that serves multiple purposes. It allows for easy cleaning of the floor beneath the rack, preventing the accumulation of debris that could obstruct the cranking mechanism. It also protects the bottom-most pipes from ground water or flooding, a common concern in large industrial warehouses. The entire structure is anchored to the floor, creating a unified, immovable object capable of handling tons of dynamic load.

The Power of the Crank

The hand-cranked mechanism is the operational heart of this system. In an era of automation, the manual crank might seem simple, but it offers reliability that electric systems cannot always match. It does not rely on external power sources, meaning operations can continue even during power outages. The gearing is designed to be intuitive; a single worker can extend a layer holding several tons of pipe with ease.

This mechanism allows for “selective accessibility.” In a block-stacked yard, retrieving a specific pipe from the bottom of a stack might require moving the entire pile. With the Herochu Heavy Duty Hand Cranked Pipe Storage Racks, the operator simply selects the specific level, cranks it out, and accesses the exact material needed. This selectivity drastically reduces handling time and minimizes the wear and tear on handling equipment like cranes and forklifts.

Versatility in Storage

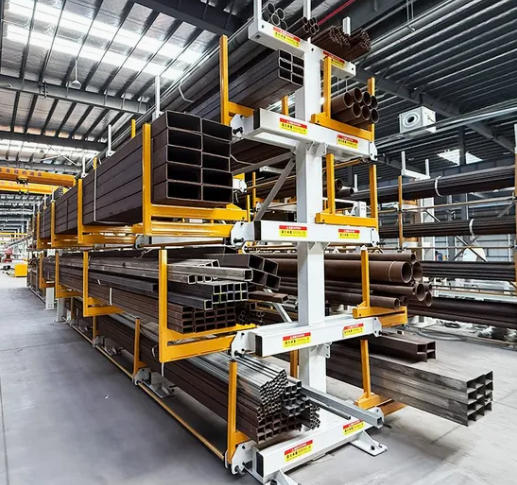

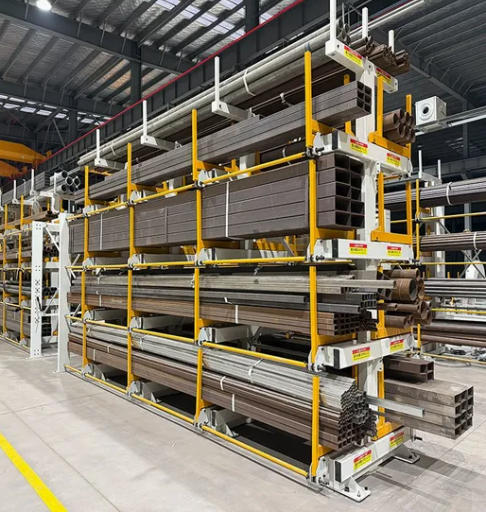

While primarily designed for pipes, the versatility of the Herochu system allows it to store a vast array of long materials. From rebar and square tubes to flat bars and extrusions, the rack adapts to the inventory. The arms can be configured in single or double-sided arrangements. Double-sided units are ideal for high-density storage in the middle of a warehouse, accessible from two aisles, while single-sided units are perfect for placement against walls.

The system also accommodates intermediate supports for extra-long materials. For pipes exceeding standard lengths, steel bottom pieces can span the distance between arms, ensuring the material is supported along its entire length to prevent sagging or bowing. This attention to detail ensures that the stored materials retain their structural straightness and quality.

Enhancing Workplace Safety

Safety is the most significant return on investment for these racks. The heavy-duty nature of the loads makes manual handling impossible and machine handling risky. By bringing the load out to the operator, the risk of overhead accidents is minimized. Workers no longer need to climb on racks or stand under suspended loads to attach rigging.

The design also includes safety pins and stops to prevent the arms from over-extending or accidentally dropping. The uprights are designed to absorb impact, protecting the integrity of the rack even if a forklift operator makes a minor error. In the steel industry, where margins for error are slim, the Herochu Heavy Duty Hand Cranked Pipe Storage Racks provide the peace of mind that comes with superior engineering.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
