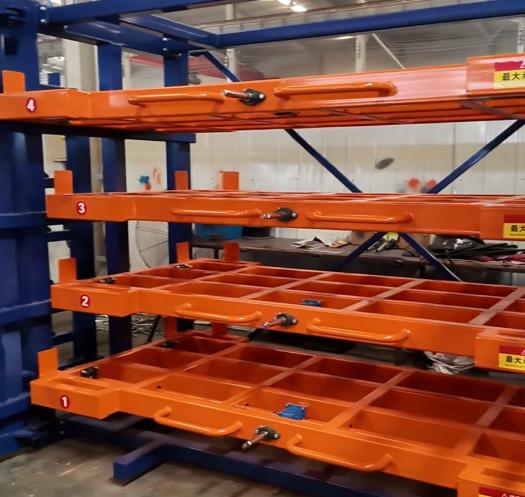

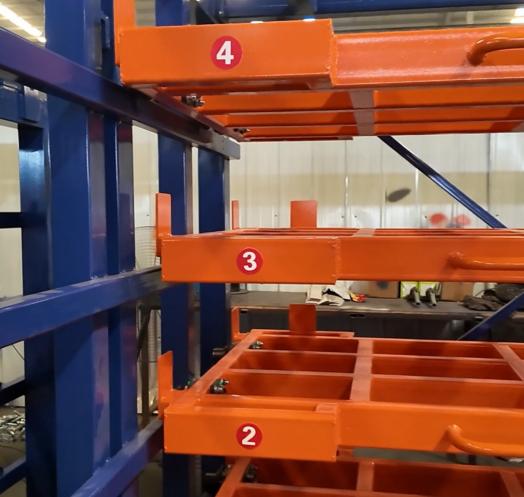

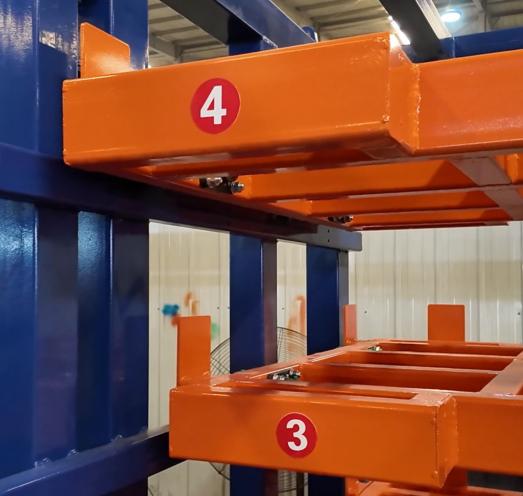

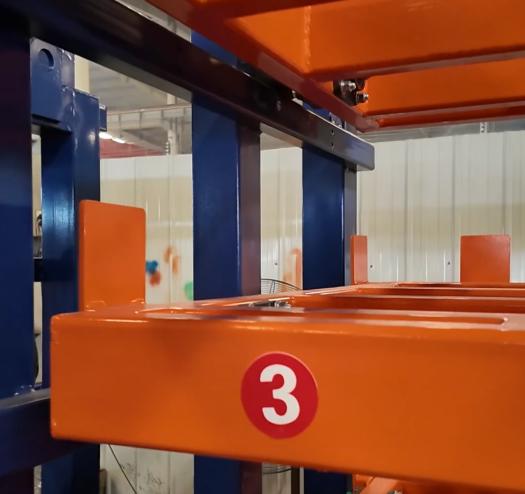

Vertical Sheet Metal Storage Rack 1500×3000mm Hand Crank 6-Layer

Floor space is the most expensive non-labor asset in a fabrication workshop. Every square meter occupied by horizontally stacked metal plate is a square meter unavailable for cutting equipment, assembly area, material handling aisles, or finished goods staging. The Herochu vertical sheet metal storage rack at 1500×3000mm with a hand crank drive and six layers is designed to convert horizontal sprawl into vertical density — recovering up to 70% of the floor space that traditional plate storage consumes.

From Two-Dimensional to Three-Dimensional Storage

Conventional plate storage is fundamentally two-dimensional. Plates are laid flat on the floor, on pallets, or on low racks, spreading outward as inventory grows. A shop holding 10 tons of 3mm carbon steel plate in standard 1500×3000mm sheets requires roughly 15 to 25 square meters just for the material stack — plus surrounding aisles for forklift access, operator movement, and safety clearance.

The Herochu six-layer vertical rack stores the same 10 tons in approximately 2.5 square meters. The transformation is architectural: the storage axis rotates from horizontal to vertical. Each of the six drawer tiers carries up to 5,000 kg, and the stacked configuration places material that was previously spread across the floor into a vertical column accessed one drawer at a time.

The reduction in aisle space is significant. Traditional cantilever and pallet rack systems require wide aisles for forklift access — typically 3 to 4 meters. The Herochu drawer system requires only enough space for the drawer to extend and for an overhead crane or vacuum hoist to access the extended platform. Depending on the comparison baseline, aisle floor space consumption drops by 30% to 70%.

1500×3000mm Platform Dimensions

The platform size matches the standard sheet dimensions most commonly processed in metal fabrication. Carbon steel, stainless steel, aluminum, and composite plates in 1500×3000mm format are the feedstock for CNC laser cutters, plasma cutting tables, shearing lines, and press brakes. A storage rack sized to hold these exact dimensions requires no material pre-processing before storage — plates go from delivery to rack to cutter without intermediate handling steps.

Six layers provide segregation capacity. A shop processing multiple material grades, thicknesses, or alloy specifications can dedicate individual layers to specific categories, maintaining physical separation that prevents grade mix-ups — a quality control failure that costs rework time and customer confidence.

Hand Crank: Simplicity as a Design Philosophy

The hand crank drive reflects a deliberate engineering decision: to achieve heavy-load operability through mechanical advantage rather than electric automation. Herochu crank system uses precision gearing that multiplies operator input force so that a single person can extend a drawer loaded to 5,000 kg with one hand.

The slide rails incorporate custom-grade high-precision bearings specified for heavy axial load, intermittent motion, and workshop contamination. These bearings completed 10,000 full-load push-pull test cycles without deformation or jamming — validating the mechanism for years of daily service.

The absence of motors, controllers, sensors, and wiring eliminates an entire category of failure modes. In a workshop environment, electronic components are exposed to metal dust, coolant mist, temperature swings, and vibration — conditions that degrade electrical and electronic systems over time. The hand crank system has none of these vulnerabilities.

Full Extension: The Enabler of Vertical Storage

Vertical storage only works if every layer is fully accessible. A drawer that extends partially forces operators to reach in, manipulate plates laterally, and extract them through a limited opening — operations that risk both material damage and personal injury.

Herochu drawers extend 100% of their travel distance. When fully extended, the entire 1500×3000mm platform is exposed to open vertical access from above. An overhead crane with a suction cup hoist or magnetic lifter can lower directly onto the target plate, engage it, and lift vertically — no sliding, tilting, or lateral maneuvering.

This is what the industry calls zero-damage hoisting. The plate never contacts adjacent material during retrieval. The operator never places hands between heavy plates. The crane or hoist handles the weight; the rack positions the material.

Safety Systems

Each drawer is equipped with an independent automatic safety locking system — a positioning pin that engages when the drawer reaches full extension. The operator does not need to manually lock the drawer; the mechanism is passive and mechanical. The pin holds the drawer rigid against accidental retraction during material access, which is the highest-risk moment in any drawer storage operation.

The frame anti-toppling structural design uses integral welding of Q235B high-strength carbon steel profiles. The dual-beam framework and reinforced column supports distribute load symmetrically, and the center of gravity is calculated to prevent tilting even under the worst-case condition: the top drawer fully extended at maximum load.

Material Preservation and FIFO

Each drawer provides an independent flat tray. Plates rest on dedicated surfaces, not stacked on each other. This eliminates the friction contact and crushing pressure that traditional stacking inflicts on bottom-layer plates — damage that often becomes visible only at downstream finishing stages when rework is expensive.

The independent layer design also enables First-In-First-Out inventory control. Older stock can be assigned to lower layers and accessed as needed, while newer arrivals are placed on upper layers. No material is buried or inaccessible. For shops maintaining material traceability for quality certification, aerospace, or defense applications, FIFO is a documentation requirement, not merely a storage preference.

Durability and Service Life

The rack frame receives sandblasting, anti-oxidation treatment, and electrostatic powder coating. The coating is formulated for scratch resistance and acid/alkali resistance — properties essential in a metalworking environment where coolant, metal particles, and chemical cleaners are present.

Under normal workshop conditions, the Herochu vertical sheet metal storage rack is engineered for a service life exceeding 15 years. The combination of Q235B structural steel, integral welding, precision bearings, and protective coating produces a system whose durability matches its mechanical simplicity.

Modular Customization

While the 1500×3000mm six-layer configuration is a standard offering, Herochu provides modular customization across the range. Standard sheet sizes extend from 2500×1300mm up to 6000×2000mm. Drawer counts range from 3 to 8 layers with adjustable pitch between tiers. Drive options include the hand crank system described here as well as motorized electric drive with one-touch controls for high-frequency retrieval in automated production lines. This flexibility means the vertical storage concept scales from small job shops to large-scale manufacturing facilities without changing the fundamental engineering approach.

Summary

The Herochu vertical sheet metal storage rack at 1500×3000mm, hand crank drive, and six layers solves the space problem at its root. By converting horizontal plate storage to vertical drawer storage, it recovers up to 70% of floor space. By extending fully on each layer, it enables zero-damage crane retrieval without manual handling. By using a hand crank drive with precision bearings, it achieves 5-ton per-tier operability without electrical systems. And by integrating automatic safety locks and an anti-toppling frame, it protects operators during every access. For workshops where floor area is a constraint and material protection is a priority, this vertical configuration delivers density, safety, and mechanical reliability in a single system.
