Warehouse Storage Racking System for Sheet Metal and Heavy Plates

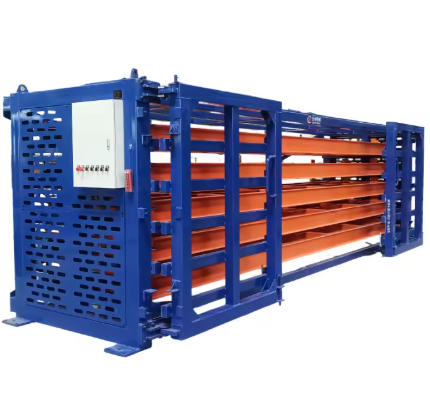

A warehouse storage racking system for sheet metal must handle unique demands that general pallet racks cannot meet. Sheet metal is wide, thin, flexible, and easily damaged. Standard selective racks store coils or palletized goods but fail to protect flat sheets from bending or surface scratching. The Herochu warehouse storage racking system specifically addresses sheet metal logistics with a heavy-duty drawer-based architecture that combines high density with damage-free access.

This racking system integrates into existing warehouse management workflows. Unlike specialized vertical storage carousels that require proprietary software and trained technicians, the Herochu system operates as a passive storage solution. Drawer positions can be labeled with barcodes or RFID tags for inventory tracking. Forklift operators and crane drivers find drawers numbered in logical sequences, making put-away and retrieval tasks intuitive. The learning curve for new warehouse staff measures in minutes rather than days.

Structural engineering sets this system apart from conventional warehouse racks. Q235 steel forms the main framework, with column sizes selected based on finite element analysis results. Corner gussets and diagonal bracing prevent rack sway during drawer operation. Under full load conditions with one drawer fully extended, the rack deflects less than 1/500th of its height, maintaining alignment with overhead crane runways and aisle boundaries. The stable base incorporates anti-tipping geometry that eliminates the need for floor anchors in most installations, though bolting options remain available for seismic zones or high-traffic areas.

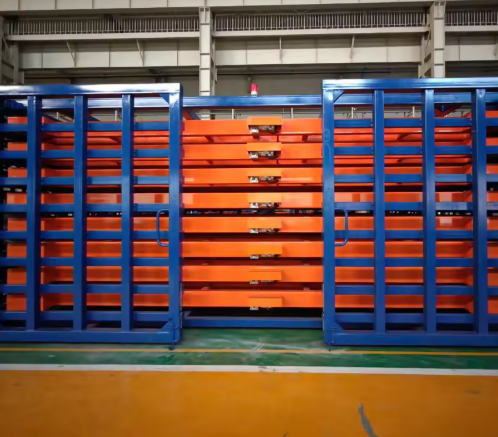

Load capacity per single drawer reaches 10 tons, with the ability to store sheets up to 6 meters long and 2 meters wide. Multiple drawers per rack multiply total capacity. A typical four-drawer configuration holds 40 tons of sheet metal within a footprint smaller than a standard parking space. Warehouse managers can calculate exact storage density per square meter and compare it against alternative systems like cantilever racks (which leave sheets exposed to damage) or floor stacking (which requires wide aisles for forklift maneuvering).

The reinforced heavy-duty guide rails deserve special attention in warehouse applications. Warehouse environments subject equipment to continuous use across multiple shifts. The Herochu rail system uses replaceable wear components. Hardened steel rollers and precision-ground raceways operate without lubrication for extended periods. When maintenance becomes necessary, rails can be removed and replaced without disassembling the entire rack. This serviceability reduces downtime and extends system life beyond 20 years in typical use.

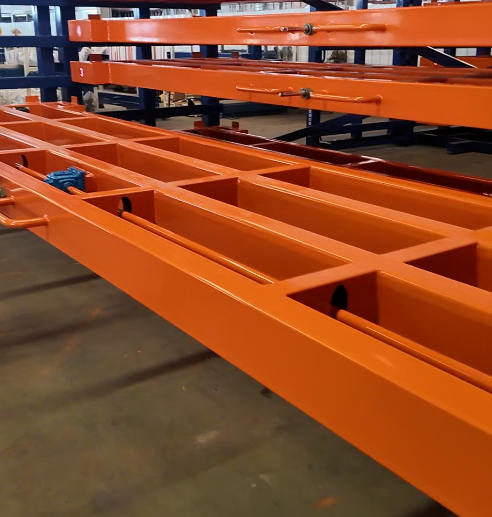

Warehouse logistics benefit from the full extension drawer design. Each drawer pulls completely out of the rack, exposing the entire sheet surface. Overhead cranes, gantry cranes, or forklifts with vacuum lifters can access sheets from above without reaching into a deep cavity. This accessibility reduces crane cycle times. In a warehouse processing 50 sheet retrievals per day, saving two minutes per cycle recovers nearly two hours of crane time daily. That translates to additional throughput without adding equipment or operators.

Safety features meet or exceed warehouse industry standards. Spring-loaded locking pins engage automatically at full extension and full closure. Limit devices prevent drawer over-travel beyond the designed extension point. Anti-slip drawer surfaces keep plates from sliding during acceleration or deceleration of retrieval equipment. For warehouses storing valuable stainless steel, aluminum, or pre-coated sheets, the anti-scratch drawer liners provide an additional layer of protection.

Warehouse storage racking systems from Herochu include customization for specific operational needs. Height can be adjusted to fit ceiling clearances. Drawer spacing can match the thickness range of stored materials. Color options allow coding by material type or alloy family. Logo placement on end frames reinforces branding within the facility. Load capacity per drawer can be scaled from 2 tons for light-gauge aluminum up to 15 tons for heavy steel plate.

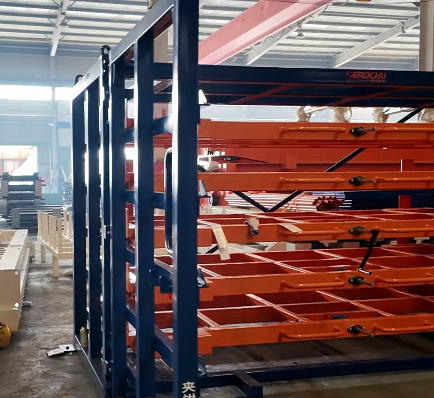

The production quality inspection process ensures that each rack shipped from the 16,000 m² self-owned factory meets warehouse performance requirements. Professional quality inspectors verify key indicators: rail alignment accuracy within 0.5mm over 6-meter lengths, weld penetration on all load-bearing joints, powder coating thickness and adhesion, and safety lock function. Pre-installation assembly of every set before disassembly and packaging eliminates field fit issues that delay warehouse commissioning.

Compared to traditional floor stacking, the Herochu warehouse racking system delivers measurable operational improvements. Material search time drops from 30-60 minutes per retrieval to under 3 minutes. Labor requirements reduce from 2-3 people to 1 person per retrieval. Storage space requirements shrink by 80% for the same inventory level. Material damage rates fall from 3-5% to near zero. For a warehouse handling 10,000 tons of sheet metal annually, eliminating 3% damage saves 300 tons of material—worth tens of thousands of dollars every year.

Industries using this warehouse storage racking system include steel service centers, laser cutting job shops, machinery manufacturing plants, automotive stamping facilities, hardware distribution warehouses, and general metal processing logistics hubs. The system supports steel plates, stainless steel, aluminum sheets, brass plates, and composite metal panels. Custom sizes accommodate non-standard dimensions up to 8 meters in length on request.

Herochu provides factory direct supply with fast lead times. ISO 9001 certification confirms quality management system compliance. CE marking indicates conformity with European safety standards. Over 1,000 manufacturers worldwide have deployed Herochu warehouse racking systems, with documented case studies showing return on investment typically under 18 months through labor savings, space savings, and damage reduction alone.
