Smart Sheet Metal Warehouse and Retrieval System

In the metal fabrication industry, the management of raw materials—specifically sheet metal—is a critical operational challenge. Sheets are heavy, prone to scratching, and difficult to organize manually. A Smart Sheet Metal Warehouse and Retrieval System addresses these specific pain points, offering a specialized solution for the storage and handling of metal panels. Herochu has tailored its vertical storage technology to meet the exacting standards of the sheet metal industry, ensuring that materials are protected, organized, and readily available for laser cutters, press brakes, and punching machines.

Category Automation Sheet Metal Material Warehouse Tag Smart Sheet Metal Warehouse and Retrieval System

Smart Sheet Metal Warehouse and Retrieval System

The Challenge of Sheet Metal Storage

Traditional storage of sheet metal often involves flat stacks on the floor or simple cantilever racks. These methods are inefficient and dangerous. retrieving a specific sheet from the bottom of a stack requires heavy machinery and poses safety risks. Furthermore, sheets are easily damaged during handling. The Herochu system transforms this process by verticalizing the storage of these panels.

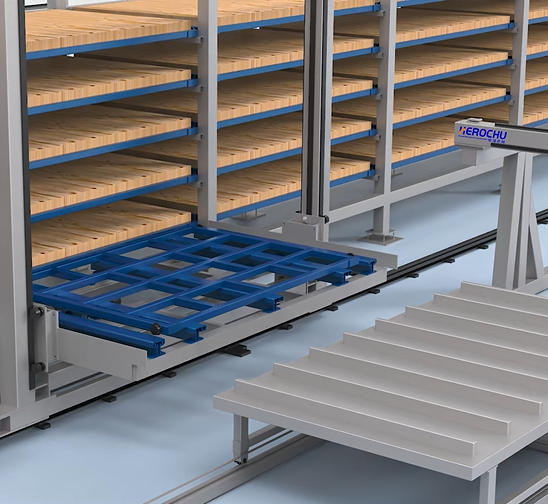

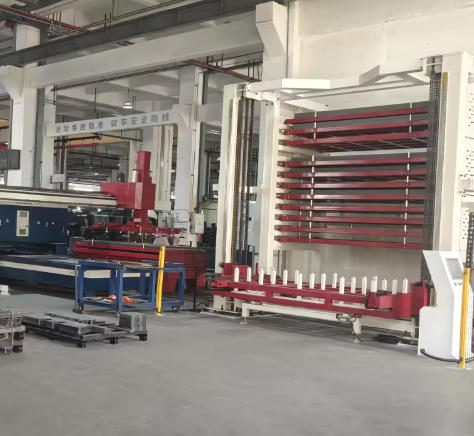

The system is designed to accommodate large panel sizes, with specifications supporting widths up to 3000mm x 1500mm. By storing these panels vertically in dedicated compartments, the system protects the surface integrity of the metal. The “Mono Tower” configuration is particularly effective here, acting as a point-of-use storage unit. A fabricator can place a Mono Tower directly beside a laser cutting machine. The system stores the raw sheet metal and feeds the machine on demand, creating a streamlined, automated work cell.

Gentle Handling Mechanisms

The defining feature of a smart sheet metal system is how it handles the material. The Herochu loading and unloading manipulator is equipped with specialized forks made of high-strength steel. These forks undergo a specific heat treatment and are hard-chromium-plated and polished. This finish is crucial; it provides a smooth surface with a minimal contact area, ensuring that the delicate surface of a polished or pre-painted metal sheet is never scratched or marred during the retrieval process.

The precision of the retrieval is managed by servo motors and reducers, which drive the lifting and access mechanisms. This ensures high positioning accuracy, allowing the robot to insert and extract sheets from tight vertical slots without collision. With a load capacity of 3000kg on the material trolley, the system can easily handle thick stacks of steel or aluminum plates.

Intelligent Inventory Management

A “Smart” warehouse is defined by its data capabilities. The Herochu system integrates an intelligent automatic start/stop system and can be linked to broader warehouse management software. This allows for real-time tracking of inventory. The operator interface is straightforward, often consisting of a simple terminal or barcode scanner. An operator can request a specific material type and thickness, and the system retrieves it in under 180 seconds.

For larger inventories, the Multi-Tower Complex configuration allows for the centralization of all sheet metal stock. Instead of scattered racks across the shop floor, all materials are housed in a high-density vertical matrix. The system acts as a central library for the factory, automatically routing specific sheets to different fabrication cells based on production schedules. This not only saves space but drastically reduces the time operators spend searching for materials.

Robust Construction for Harsh Environments

Metal fabrication shops are harsh environments filled with vibration and heavy impacts. The Herochu system is built to withstand this. The main body of the manipulator is constructed from high-strength steel pipe and plate, processed by large-scale CNC milling machines to ensure rigidity. The equipment is peripherally equipped with safety guardrails, essential in busy workshops where forklifts and cranes operate nearby.

The system operates on a standard industrial power supply (380V, 80A) and air pressure (0.6-0.7Mpa), ensuring it integrates seamlessly into existing factory infrastructures. The use of vibration stress relief treatment during manufacturing ensures that the machine maintains its precision even after years of heavy use.

Conclusion

The Herochu Smart Sheet Metal Warehouse and Retrieval System is a specialized tool designed for the specific needs of the metalworking industry. By combining gentle, scratch-free handling with high-density vertical storage and intelligent retrieval logic, it solves the age-old problems of sheet metal management. Whether used as a standalone unit next to a machine or as a central storage hub, it enhances safety, protects material quality, and accelerates production throughput.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
