Intelligent 3D Warehouse Storage System for Sheet Metal

Sheet metal presents unique storage challenges that generic warehouse solutions cannot address. Sheets are large, heavy, and flexible. They damage easily from edge impacts or surface scratching. They must be stored flat to prevent warping. And they come in dozens of alloys, tempers, thicknesses, and surface finishes that must be kept separate and traceable. The Herochu Intelligent 3D Warehouse Storage System for Sheet Metal is designed from the ground up to solve these specific problems, delivering a storage density, retrieval speed, and material protection level that no conventional racking system can match.

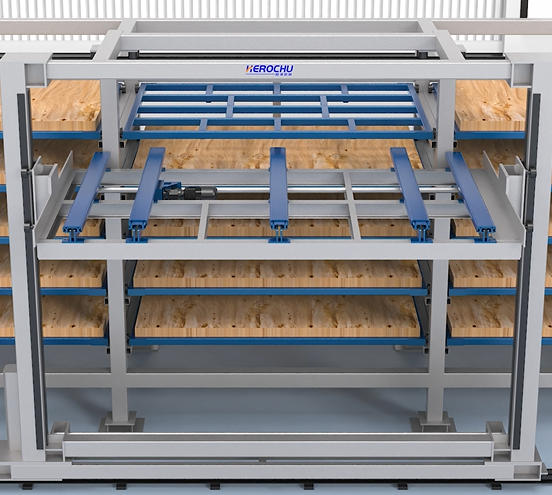

The core architecture is a vertical storage matrix. Sheet metal panels up to 3000×1500mm in size are stored individually in dedicated trays or cassettes, each occupying a unique position within one or more storage towers. The towers are constructed from heavy-gauge steel with precision-formed guides that align trays vertically. A servo-driven lift travels along each tower’s full height, stopping at any tray position to deposit or retrieve loads. The lift uses a telescopic fork mechanism that extends into the tower, engages the tray, and withdraws it onto the lift carriage. This design ensures that every sheet is handled by its supporting tray, never directly gripped or clamped, eliminating the risk of bending or denting during storage and retrieval.

For smaller operations or machine-side staging, the Mono Tower configuration offers an entry point with immediate benefits. Placed directly beside a press brake or laser cutter, a single Herochu Mono Tower stores up to several dozen sheet metal blanks or finished parts. The operator calls up a sheet type from a touchscreen terminal, and the lift retrieves the corresponding tray in under 180 seconds. This eliminates walking to remote racking, searching through stacked sheets, and manually lifting heavy panels onto the machine table. The result is a reduction in machine idle time and a corresponding increase in throughput, often by 20-30% without any change to the cutting or forming process itself.

The Double Tower configuration serves workstations that need access to two distinct material categories. For example, a fabrication cell processing both stainless steel and aluminum can store each alloy in a separate tower, with the shared lift and transfer trolley moving between them. The system automatically retrieves whichever material the current job requires, staging it at the discharge station while the machine finishes its previous cycle. This overlap capability—retrieving the next sheet during the machine’s processing time—is a key factor in achieving true lights-out manufacturing.

Large-scale sheet metal fabrication plants benefit most from the full Multi-Tower complex. These systems link dozens of individual towers into a central automated warehouse that serves multiple production lines, shipping docks, and receiving stations. A network of rail-guided vehicles or conveyors moves trays between towers and discharge points, all coordinated by the warehouse management system. When a laser cutter on the east side of the plant requests 2mm cold-rolled steel, the WMS identifies the nearest tower containing that material, directs the lift to retrieve it, and routes a transport vehicle to deliver it—all while simultaneously handling storage requests from other machines. This level of orchestration is impossible with manual methods and impractical with semi-automated systems.

Technical specifications of the Herochu sheet metal storage system reflect the demands of heavy industrial use. The lifting operating speed of ≤12m/min provides rapid vertical travel without sacrificing positioning accuracy. Servo motor drives through reducers ensure that the lift stops exactly at the correct tray level every time, with no drift or overshoot. The material trolley that carries trays between the lift and discharge stations handles up to 3000kg at 10m/min, adequate for even the heaviest plate bundles. Supply pressure requirements of 0.6-0.7Mpa are easily met by standard shop air systems, and the 380V/80A electrical supply is common in industrial facilities worldwide.

Material protection features are extensive. The fork mechanism is fabricated from high-strength steel that undergoes heat treatment, hard-chromium plating, and polishing. This produces a smooth, hard surface that will not scratch sheet metal, even after years of use. The fork’s contact area is minimized through optimized tine design, reducing the points of contact between the fork and the sheet. For pre-coated materials such as PVDF aluminum or painted steel, this scratch-free handling preserves cosmetic quality and eliminates touch-up rework.

The intelligent control system includes several sheet metal-specific functions. A thickness verification routine checks that the retrieved sheet matches the requested gauge before releasing it to the machine, preventing costly processing errors. Edge detection sensors confirm that the sheet is properly seated on the fork before any movement begins. Tilt monitoring ensures that trays remain level during vertical travel, preventing sheets from sliding and becoming damaged. All these functions run automatically in the background, requiring no operator intervention.

Energy efficiency is built into the system architecture. The intelligent automatic start/stop system powers down lifts, conveyors, and auxiliary equipment during idle periods. Unlike hydraulic systems that must run continuously to maintain pressure, servo-driven components consume power only when moving. For a typical three-shift operation running two shifts of production and one shift of idle time, this feature can reduce energy costs by tens of thousands of kilowatt-hours annually.

Safety is addressed through physical barriers and electronic monitoring. Safety guardrails surround the entire equipment perimeter, preventing personnel from entering hazardous areas during automatic operation. Interlocked access gates allow maintenance entry only after the system has been safely shut down. Light curtains can be added around discharge stations where operator interaction occurs, stopping motion if a hand or tool enters the danger zone.

The Herochu Intelligent 3D Warehouse Storage System for Sheet Metal is not a generic warehouse product adapted for metal—it is a purpose-built solution that understands the specific physics, tolerances, and workflow of sheet metal fabrication. From the smallest job shop to the largest automotive stamping plant, this system delivers measurable improvements in space utilization, labor efficiency, and product quality.
