Full Extension Drawers Rack for Sheet Material Library Storage – 100% Drawer Access for 6m Plates

A sheet material library functions exactly like a book library: quick lookup, damage-free retrieval, and efficient space use. The Herochu Full Extension Drawers Rack transforms a chaotic plate storage area into an organized, high-velocity material library. Traditional stacking forces workers to dig through piles, move heavy sheets to reach bottom layers, and risk bending or scratching during every extraction. With full extension drawers, every sheet becomes immediately accessible without touching adjacent materials.

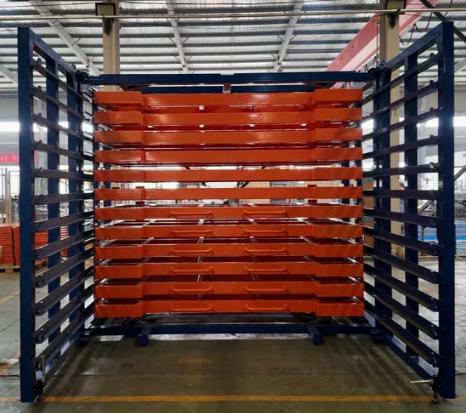

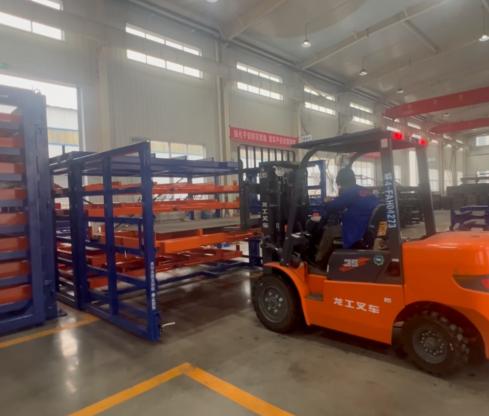

The defining feature of this rack is the 100% fully extendable drawer design. When fully opened, the entire drawer length—up to 6 meters—slides completely out of the rack frame. No portion of any stored sheet remains hidden inside the structure. This complete exposure allows any retrieval equipment to access the sheet from above or from the side. Operators can use overhead cranes with magnetic lifters, vacuum suction cup lifters, or even standard forklifts equipped with boom attachments. The drawer’s open architecture does not restrict tool approach angles.

Precision heavy-duty slide rails make this full extension possible under extreme loads. Herochu engineers developed a multi-stage telescoping rail system using cold-formed, heat-treated steel sections. Each rail stage incorporates recirculating ball bearings housed in sealed lubricated channels. The load rating per rail pair exceeds 10 tons static and 8 tons dynamic. What sets these rails apart is their low breakout force. Even after sitting fully loaded for weeks, the drawer moves with the same light pull as an empty drawer. This consistency comes from the rail’s self-cleaning geometry, which sheds dust and metal particles rather than accumulating them inside bearing races.

Consider the time savings compared to traditional ground stacking. Retrieving a specific sheet from a floor stack typically requires 30 to 60 minutes. Workers must identify the correct stack, remove top sheets with a forklift or crane, locate the target sheet, extract it, then restack the removed sheets. During this process, production equipment waits. With Herochu’s full extension drawers, single material searching time drops to under 3 minutes. That is a 90% improvement in material search efficiency. For a shop retrieving 20 sheets per day, daily waiting time reduces from over 10 hours to just 1 hour, directly increasing machine utilization and throughput.

Labor cost reduction follows directly from the design. The traditional retrieval mode requires two to three people collaborating: one operates the lifting equipment, one guides the sheet to prevent damage, and sometimes a third stabilizes the stack. Full extension drawers eliminate the need for multiple handlers. A single person opens the correct drawer, positions the lifter, extracts the sheet, and returns the empty drawer. Labor investment cost drops by 50% or more. In high-labor-cost regions, this saving alone justifies the rack investment within months.

Space utilization jumps dramatically under the same storage requirements. A facility storing 100 tons of 3mm steel sheets in 2×3 meter sizes would need approximately 100 square meters of floor space using traditional stacking methods. The Herochu full extension drawers rack achieves the same capacity in just 20 square meters through high-density vertical design. That is an 80% reduction in storage footprint. Freed floor space converts to additional production cells, assembly areas, or future expansion capacity without building expansion costs.

Material loss reduction approaches zero. Traditional stacking produces 3-5% scrap or rework due to scratches, dents, and edge deformation. For a shop processing $500,000 worth of sheet metal annually, that represents $15,000 to $25,000 in material waste. The full extension drawers rack eliminates physical contact between sheets during storage. Each drawer holds either a single sheet or a small, well-separated bundle. No sliding friction, no point loading from uneven stacks, no edge curling from leaning plates. Over five years, material savings from eliminating damage can exceed $100,000.

The spring-loaded locking pin system adds a critical safety layer. When the drawer reaches full extension, the pin automatically snaps into a receiver hole, audibly clicking into place. This lock prevents the drawer from sliding back into the frame while the operator positions lifting equipment or attaches suction cups. After sheet removal, the operator manually releases the lock to retract the drawer. The same pin locks the drawer in the fully closed position, preventing accidental opening during facility vibration or forklift traffic.

Herochu’s production quality inspection process covers every full extension drawer rack. Professional quality inspectors verify strength, accuracy, and welding processes on each unit. Dimensional checks ensure rail mounting holes align within 0.5mm across the entire 6-meter length. Welds on drawer pans, rail brackets, and frame connections receive visual and penetrant inspection. Before leaving the factory, each set of shelves undergoes pre-installation assembly. This real-time check catches any misalignment or fit issue before packaging, guaranteeing that the customer receives a ready-to-assemble system.

Adaptability to different sheet thicknesses and storage demands comes from flexible design. Herochu adjusts drawer height spacing, rail gauge, and frame depth based on the customer’s specific material inventory. Thin aluminum sheets need closer drawer spacing and softer anti-slip surfaces. Thick steel plates require heavier rail bearings and reinforced drawer pans. The same basic full extension drawer rack accommodates both extremes through modular component selection.

Industries benefiting from this system include laser cutting and shearing factories, where rapid material changeover drives productivity. The rack pairs perfectly with CNC machines and automatic production lines. When a laser cutter needs a specific gauge and alloy, the operator retrieves the correct sheet in under three minutes and feeds it directly into the machine. No intermediate staging, no double handling, no waiting for forklift drivers.

Herochu backs every full extension drawers rack with factory direct supply and after-sales support. The 16,000 m² self-owned factory maintains inventory of standard components while building custom configurations to order. Over 1,000 manufacturers worldwide trust this system for their sheet material library storage needs.
