Fully automatic Efficient Smart Warehouse Solutions with gantry suction cup feeding manipulator

The final evolution in material handling combines high-density vertical storage with a gantry-style suction cup manipulator that handles sheets without any physical contact that could cause damage. Herochu’s Fully Automatic Efficient Smart Warehouse Solutions integrate a multi-tower three-dimensional storage system with an overhead gantry robot equipped with vacuum suction cups, creating a material transport solution that is gentle, fast, and completely hands-off. This configuration is particularly valuable for processing delicate materials—such as pre-painted architectural panels, mirror-finished stainless steel, thin aluminum sheets, or composite laminates—where even minor scratches or fingerprints are unacceptable.

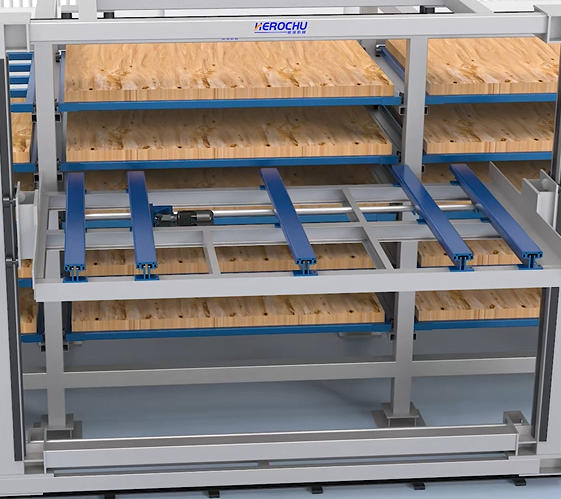

The storage component follows the proven Herochu tower architecture. Individual vertical magazines hold board materials up to 3000×1500mm in dedicated trays. A servo-driven lift operating at ≤12m/min retrieves and stores trays, with single-cycle times under 180 seconds. The system can be configured as a Mono Tower for machine-side staging, a Double Tower for expanded capacity, or a full Multi-Tower complex for central warehousing. All configurations share the same core components: high-strength steel frames, precision-ground guide rails, and intelligent servo control.

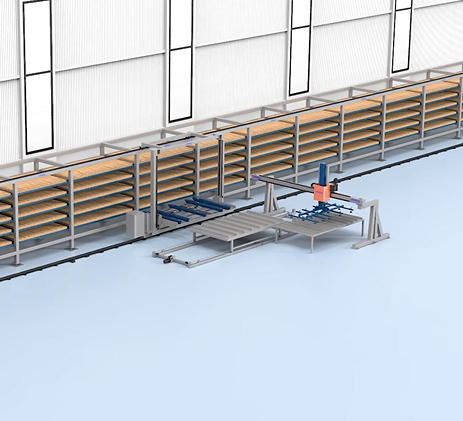

What distinguishes this solution is the gantry suction cup feeding manipulator. Unlike articulated arm robots that require significant floor space for their working envelope, a gantry system travels on overhead rails, keeping the floor area clear for other equipment or personnel. The manipulator spans across the storage towers and extends to one or more discharge stations, picking sheets from the warehouse trays and placing them directly onto machine tables, conveyors, or pallets. Because the gantry moves in X, Y, and Z axes, it can access any storage position within its coverage area, eliminating the need for separate transfer shuttles.

The suction cup array is engineered for sheet metal applications. Multiple vacuum cups are arranged on a beam that adjusts automatically to match the sheet dimensions. Each cup connects to a high-flow vacuum generator capable of lifting loads up to the system’s 3000kg rating. The cups are made from non-marring materials—typically polyurethane or silicone—that grip the sheet without leaving marks or residue. For materials with textured or perforated surfaces, the system can select different cup sizes or patterns to maintain holding force. Vacuum pressure is monitored continuously during transport; if any cup loses seal, the manipulator halts motion and sounds an alarm, preventing dropped loads.

The manipulator’s structural integrity comes from its construction. The main body uses high-strength steel pipe and premium steel plate, welded as a complete assembly and then vibration stress-relieved. This eliminates residual stresses from welding that could cause the frame to warp over time. After stress relief, the entire gantry frame is machined on a large-scale CNC gantry milling machine, ensuring that all rail mounting surfaces are flat and parallel. The result is a smooth, low-friction motion system that can position sheets with sub-millimeter accuracy.

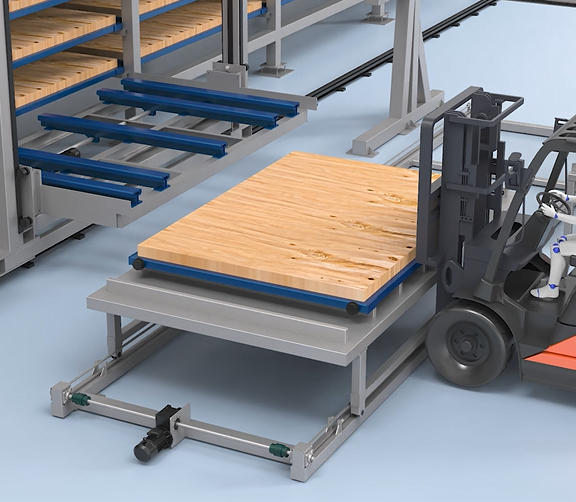

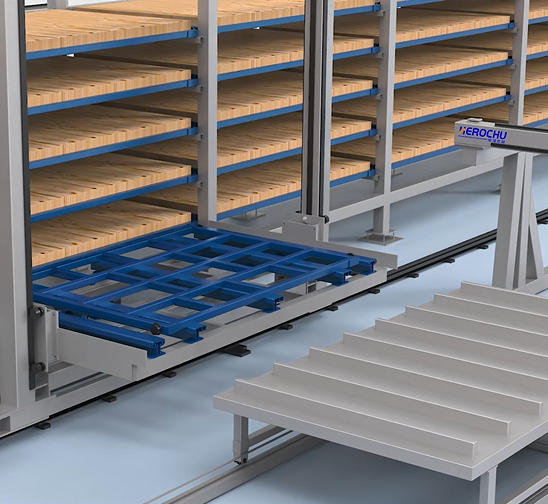

Feeding cycles are fully automated. A typical sequence begins when the production machine sends a material request. The warehouse WMS identifies the tower and tray position containing the requested sheet. The tower lift retrieves the tray and positions it at the gantry pick-up station. The gantry manipulator moves over the tray, lowers its suction cup array onto the sheet, activates vacuum, and lifts. The manipulator then travels along its overhead rails to the target machine, positions the sheet precisely on the loading table, releases vacuum, and returns to home position. For unloading, the reverse sequence occurs: the manipulator picks finished parts or skeletons from the machine and returns them to an open tray in the warehouse.

The entire process is managed by an intelligent control system that optimizes movement paths to minimize cycle times. The system knows the position of every tray, the status of every machine, and the priority of every job. It can pre-stage the next sheet while the machine is still processing the current one, reducing machine idle time to near zero. For facilities running lights-out manufacturing, the system can operate unattended for entire shifts, automatically handling material requests, restocking empty trays, and generating alerts only when intervention is required.

Technical parameters support heavy production schedules. The lifting operating speed of ≤12m/min applies to the vertical lift within each tower. The gantry manipulator’s horizontal travel speed is typically higher, often configurable up to 30-40m/min depending on span length. The material trolley that moves trays between the lift and the gantry pick-up station carries up to 3000kg at 10m/min. Supply pressure of 0.6-0.7Mpa powers the vacuum system and any auxiliary clamping functions. Electrical requirements are 380V/80A, standard for industrial automation equipment.

The intelligent automatic start/stop system brings energy management to the entire solution. When no material requests are pending, the system powers down the gantry drives, vacuum pumps, and lift motors. Only the control computer remains active, monitoring for new requests. Upon receiving a command, the system sequentially wakes up the required components—typically starting with the lift to retrieve the tray while the gantry completes any ongoing movement. This staged wake-up avoids the power spike of starting everything simultaneously and reduces total energy consumption compared to systems that keep all components powered continuously.

Safety features are extensive. The gantry working envelope is protected by light curtains or laser scanners that detect personnel entry and immediately stop motion. The suction cup system includes redundant vacuum circuits and check valves, so even if one cup loses seal, the others maintain holding force. Emergency stop buttons are positioned at all operator stations and along the gantry rails. Servo drives include torque and position monitoring that can detect collisions or obstructions and stop within milliseconds. Full safety guardrails surround the storage towers, with interlocked gates that prevent access during automatic operation.

For manufacturers processing sensitive materials, the Herochu Fully Automatic Smart Warehouse with Gantry Suction Cup Feeder represents the state of the art. It eliminates all contact that could damage surfaces—no fork scratches, no finger prints, no edge impacts from manual handling. It removes the physical strain of lifting heavy sheets, reducing workplace injuries and expanding the pool of qualified operators. And it integrates seamlessly with modern production equipment, enabling truly automated fabrication cells that run with minimal supervision. Whether you are processing architectural panels, electronic enclosures, or automotive body panels, this solution delivers the throughput, quality, and reliability that competitive manufacturing demands.
