Vertical Sheet Material Library – Maximize Floor Space with Drawer Storage for 6m Plates

A vertical sheet material library fundamentally rethinks how flat metal storage occupies factory floor space. Instead of spreading sheets across wide floor areas or leaning them against walls, the Herochu vertical sheet material library stacks drawers upward, using the height dimension that most workshops waste. This vertical orientation turns an 80-square-meter floor stack into a 20-square-meter library, freeing 60 square meters for productive use.

The concept borrows from library science applied to industrial storage. Just as a book library organizes volumes vertically on shelves with individual slots, the Herochu vertical sheet material library organizes metal sheets vertically in full-extension drawers. Each drawer holds one sheet or a small, managed bundle. A label on each drawer front identifies material grade, thickness, dimensions, and heat number. Inventory management becomes visual and intuitive. The 5S workplace organization method finds natural expression in this system: sort, set in order, shine, standardize, and sustain all apply directly to the drawer-based layout.

Structural engineering for vertical storage requires careful attention to column strength and base stability. Herochu uses Q235 steel throughout the frame, with column cross-sections sized to prevent buckling under the combined weight of multiple fully loaded drawers. The base incorporates a wide stance and low center of gravity. Even when the top drawer extends fully with a 6-meter steel plate, the rack remains stable without floor anchors in most configurations. Anti-tip brackets can be added for seismic zones or when overhead crane impacts are possible.

Vertical density comes from drawer spacing matched to sheet thickness. A library storing 1mm to 3mm sheets uses tighter drawer spacing, achieving more drawers per vertical meter. A library storing 20mm to 50mm plates uses wider spacing, but each drawer holds significantly more weight. Herochu calculates optimal drawer count and spacing during the design phase based on the customer’s material inventory profile. No wasted vertical space, no drawers too small for the thickest plates.

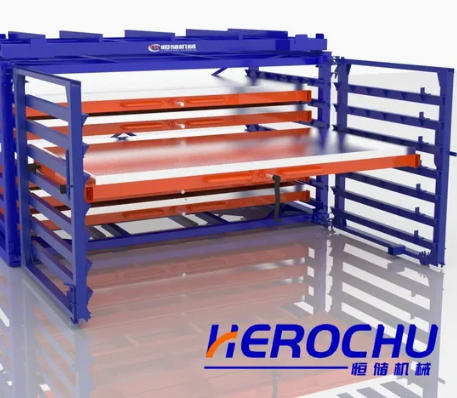

The full extension drawer mechanism makes vertical storage practical. Without full extension, a worker would have to reach deep into the rack to access sheets at the back of each drawer—a dangerous and inefficient motion. Herochu’s 100% extendable drawers bring the entire sheet completely out of the rack frame. The operator stands beside the open drawer, not reaching into a dark cavity. Overhead cranes or vacuum lifters have unobstructed access from above. This full extension feature transforms vertical storage from a theoretical space-saver into a practical daily tool.

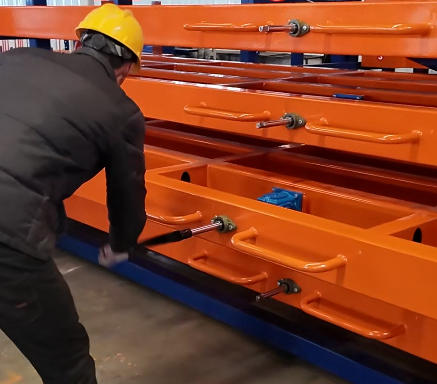

Reinforced heavy-duty guide rails support the vertical library concept. Each drawer must slide smoothly even when loaded with 8 to 10 tons of steel. The rail system uses multi-stage telescoping sections with recirculating ball bearings. Pull force remains consistent regardless of load due to the bearing design, which converts sliding friction to rolling resistance. One person can open any drawer, even at the top of a 4-meter-high rack. No powered drawer assistance is required, keeping the system simple and maintenance-free.

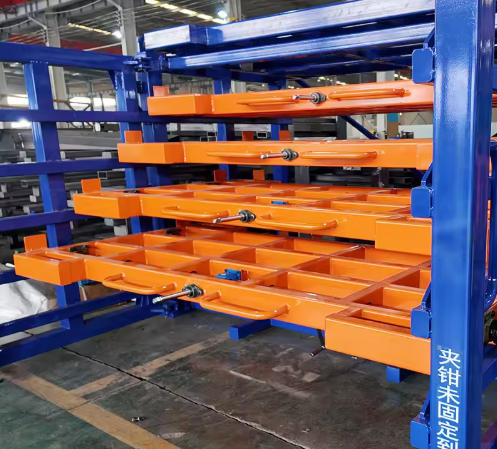

Safety features are non-negotiable in vertical sheet material libraries. The spring-loaded locking pin engages automatically when the drawer reaches full extension, preventing accidental retraction during sheet lifting. The same pin locks the drawer closed when fully inserted, preventing it from sliding open due to vibration or accidental contact. Limit devices provide positive stops at both ends of travel. Anti-slip surfaces on drawer floors prevent sheets from sliding during opening or closing movements.

The vertical sheet material library excels in facilities with limited floor space but adequate ceiling height. Many metal processing centers operate in buildings with 6 to 8 meter clear heights but use only the bottom 2 meters for storage. The Herochu system occupies the same floor area as a small office but reaches upward to utilize available cubic volume. For a facility paying rent or mortgage on total square footage, reducing storage footprint by 80% delivers direct financial savings that continue for the life of the building lease.

Material search efficiency improvements from vertical libraries are dramatic. Traditional ground stacking: 30 to 60 minutes to find and extract a specific sheet. Herochu vertical library: under 3 minutes. For a shop that changes materials 10 times per day, daily waiting time drops from 5-10 hours to under 30 minutes. Production equipment spends more time cutting and less time waiting for material. Shift output increases without adding machines or operators.

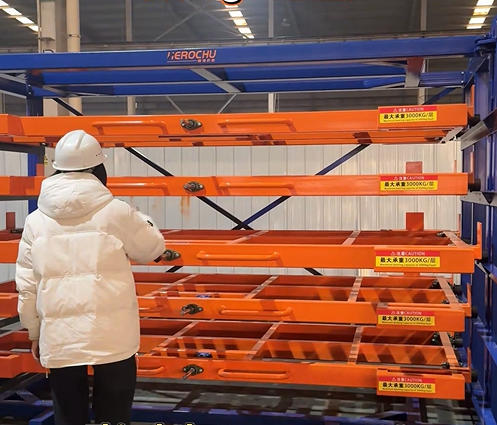

Labor cost reduction follows the same pattern. Traditional retrieval requires 2-3 people: forklift driver, guide, and often a spotter. The vertical sheet material library requires one person. That person can be a machine operator, a material handler, or even a trained office employee. The low pull force and smooth operation mean no special physical requirements. Female workers and older staff perform the same tasks as younger, stronger workers. Labor costs per ton of material handled drop by half or more.

Material damage rates in vertical libraries approach zero. Traditional stacking rubs sheets against each other, bends edges, and scratches surfaces. The 3-5% damage rate common in floor stacking represents pure waste. For a processing center moving $2 million worth of sheet metal annually, damage costs range from $60,000 to $100,000 per year. The vertical sheet material library eliminates contact between stored sheets, saving tens of thousands annually. Over a decade, damage reduction alone can exceed the initial rack investment multiple times.

Herochu’s production process ensures every vertical sheet material library meets rigorous quality standards. Three-dimensional finite element stress analysis validates the design before production. Professional quality inspectors verify welding, rail alignment, and coating throughout manufacturing. Pre-installation assembly at the 16,000 m² self-owned factory confirms fit and function before disassembly and shipment. ISO 9001 and CE certifications provide independent verification.

Industries ideal for vertical sheet material libraries include laser cutting and shearing factories, where the rack pairs directly with CNC equipment. Machinery manufacturing plants store blank sizes for just-in-time production. Automotive stamping lines feed presses from organized vertical drawers. Hardware manufacturers manage diverse material inventories in small footprints. Steel processing centers and warehouse logistics hubs gain efficiency from rapid retrieval times.

Customization options make the vertical library adaptable to any sheet metal application. Herochu adjusts height, width, depth, load capacity, drawer count, color, and branding. Sheet sizes up to 6 meters by 2 meters are standard; larger dimensions available on request. Factory direct supply ensures competitive pricing and fast delivery. Over 1,000 manufacturers worldwide have chosen Herochu vertical sheet material libraries to transform their storage operations and gain competitive advantage through space efficiency, labor productivity, and material protection.
