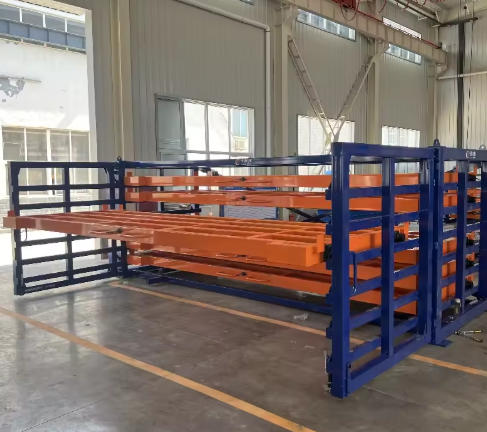

Heavy Duty Q235 Steel Powder Coated Sheet Metal Storage Rack System – 10-Ton Load Capacity for Metal Workshops

Managing flat sheet metal storage in a laser cutting or fabrication shop presents a constant challenge. Stacking materials on the floor leads to scratches, bending, wasted floor space, and dangerous retrieval operations. The Herochu Heavy Duty Q235 Steel Powder Coated Sheet Metal Storage Rack System directly addresses these pain points with an engineering-first approach. This system is not a generic shelving unit; it is a purpose-built solution for steel plates, stainless steel, aluminum sheets, and other ferrous and non-ferrous metals.

The foundation of this storage rack system lies in its material selection. Q235 steel, known for its excellent weldability and mechanical properties, forms the entire load-bearing structure. Unlike lower-grade steels that flex or deform under heavy point loads, Q235 maintains its integrity even when fully loaded. Herochu applies three-dimensional finite element stress analysis before any production begins. Every core component—the vertical frames, drawer slides, bottom supports, and cross braces—undergoes simulation under real-world loading conditions. Only when stress distribution passes the acceptance criteria does the design move to production drawings. This analytical step eliminates guesswork and guarantees that each rack performs exactly as specified.

The powder coating finish on all exposed steel surfaces provides more than just a clean appearance. Industrial workshops expose metal storage equipment to cutting fluids, humidity, and abrasive dust. Standard painted or bare steel surfaces rust within months, compromising structural safety and contaminating stored sheets. Herochu’s high-quality powder coating forms a continuous, non-porous barrier that resists corrosion, chemical attack, and impact chipping. The coating also reduces friction during drawer operation and prevents surface scratches on delicate aluminum or coated steel sheets.

Single-layer load-bearing capacity reaches 10 tons, with storable board dimensions up to 6 meters in length and 2 meters in width. Achieving such high capacity while maintaining smooth operation requires precision engineering in the guide rail system. The reinforced heavy-duty guide rails incorporate hardened steel rollers and precision-ground raceways. Even under a full 8-ton load, a single operator can pull out a drawer with one hand—no forklift, no pry bar, no power assist. This smooth sliding action, free from jamming or binding, comes from tight manufacturing tolerances and proper rail alignment verified during pre-installation inspection.

Every unit receives a full pre-installation check before leaving the Herochu factory. Assembly deviations are measured and corrected in real time. Drawer alignment, rail parallelism, base leveling, and safety lock engagement are all verified against performance parameters. Only after confirming that the assembled rack meets every standard does the team disassemble, package, and ship the unit. This process ensures that on-site assembly matches the factory setup, eliminating costly field modifications or returns.

The anti-tipping structure built into the base provides safe operation even when only one drawer is fully extended. Many storage racks rely on bolted floor anchors, which become impractical when layouts change or floors cannot be drilled. Herochu engineers designed a wide-stance base with low center-of-gravity geometry. The anti-slip base pads increase friction without damaging floor coatings. Combined with the spring-loaded locking pin that automatically engages when the drawer is fully open or fully closed, the rack remains stable during crane loading, vacuum suction cup retrieval, or manual handling.

Safety locks and limit devices prevent accidental drawer fall-out. In traditional sliding racks, pulling a drawer too far causes it to tip or disengage entirely, leading to severe injury risk and material damage. Herochu’s positive stop mechanism engages at the full extension point, providing an audible click and physical resistance against over-travel. The same mechanism prevents the drawer from sliding closed during hoisting operations. Operators can focus on moving the sheet rather than worrying about drawer movement.

Welding quality directly determines long-term service life. Herochu employs certified welders using controlled parameters for each joint type. Fillet welds on bottom supports, full-penetration welds on frame corners, and stitch welds on drawer pans all receive visual and dimensional inspection. Weld spatter is removed, and each weld passes a dye penetrant test on random samples from each production batch. Firm welding creates a unified structure that distributes dynamic loads from drawer movement without developing fatigue cracks.

This heavy duty Q235 steel powder coated sheet metal storage rack system finds direct application in sheet metal workshops, laser cutting facilities, machinery manufacturing plants, automotive stamping lines, hardware processing operations, steel service centers, and warehouse logistics hubs. Customization options include size, height, load capacity, color, and logo printing. Whether storing 4×8 foot aluminum sheets or 6-meter steel plates, Herochu adapts the rack geometry to fit specific sheet thicknesses and storage density requirements.

Reducing material damage directly lowers production costs. Traditional floor stacking typically produces a 3-5% scratch or deformation rate. Sheets slide against each other during forklift insertion, edges curl, and surface coatings get abraded. With a dedicated drawer for each sheet or small bundle, physical contact between stored pieces is eliminated. The anti-slip design on each drawer surface prevents plates from sliding during extension or retraction, further protecting edges and surfaces.

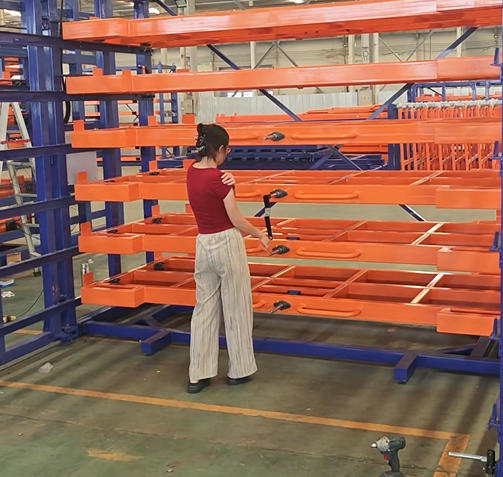

Operators experience less physical strain. Ergonomic handle placement, low drawer starting force, and smooth rolling resistance reduce worker fatigue over multiple daily retrievals. In a typical eight-hour shift, a worker might access 20 to 30 different sheet sizes. With the Herochu system, each retrieval takes seconds rather than minutes, and the effort per drawer remains constant regardless of load. Female workers and older employees can operate the system without difficulty, broadening the available labor pool.

Factory direct supply from Herochu’s 16,000 m² self-owned facility ensures fast delivery and reliable after-sales support. ISO 9001 and CE certifications provide third-party validation of quality management and safety compliance. Over 1,000 manufacturers worldwide have deployed these racks, with documented improvements in material search efficiency, space utilization, and cost reduction.
