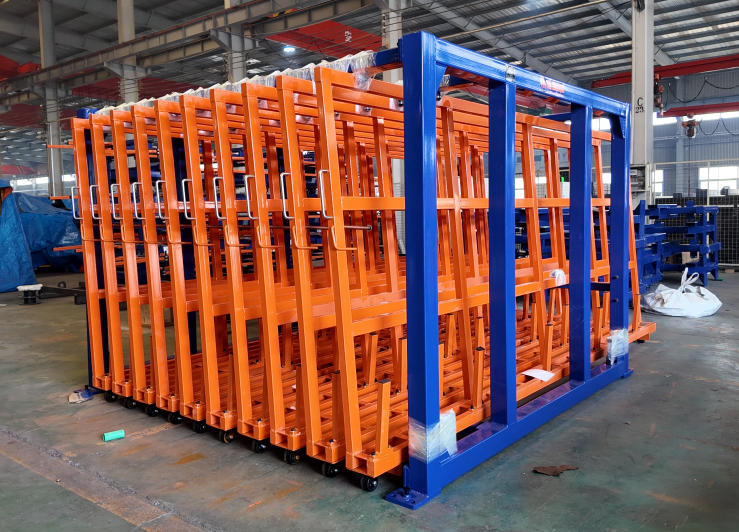

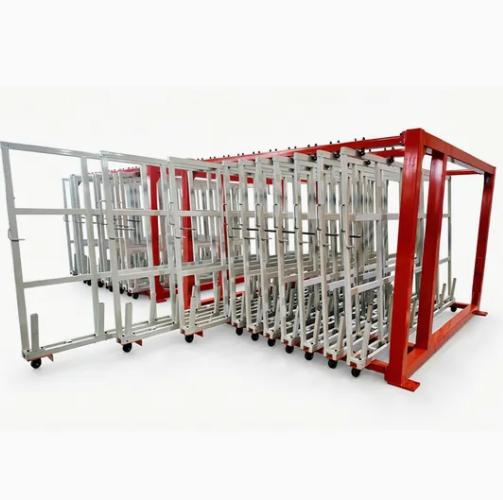

Heavy Duty Vertical Scrap Rack for Laser Cutting

In any fabrication shop running fiber laser cutting systems, the pile of remnants grows faster than anyone anticipates. A 3000×1500 millimeter sheet yields offcuts that are too valuable to scrap and too awkward to store. The conventional response — stacking them flat on a pallet or leaning them against a wall — creates a retrieval problem that quietly drains productivity. An operator needs a 400×600 millimeter piece of 3 millimeter cold-rolled steel. The piece exists somewhere in the stack. Finding it requires lifting, shifting, and inspecting layer after layer of sheet metal. Fifteen minutes disappear. The operator orders a fresh full sheet instead. The remnant stays buried.

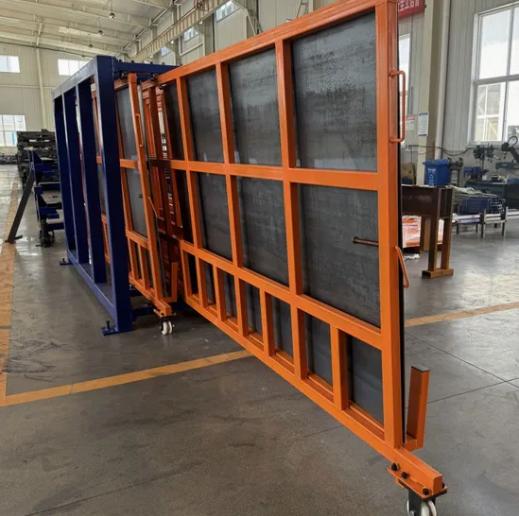

Herochu’s Heavy Duty Vertical Scrap Rack for Laser Cutting addresses this problem directly. The design converts a horizontal pile into a vertical array of pull-out drawers. Each drawer holds one layer of remnants. Nothing sits on top of anything else. When the operator needs a specific offcut, they walk to the rack, pull the relevant drawer, and see the entire surface of the material in that tier. Retrieval becomes a visual task measured in seconds, not a physical excavation measured in minutes.

Technical Foundation

The Herochu rack is built around two primary frame sizes. The HC-V2513-8 accommodates sheet dimensions up to 2500×1000 millimeters across eight configurable tiers. The HC-V3015-8 scales to 3000×1500 millimeter material — the standard format for mid-sized fiber laser tables — with the same eight-tier architecture and a 1000 kilogram maximum load per level. Tier counts can be specified upward during ordering to match the shop’s maximum remnant volume.

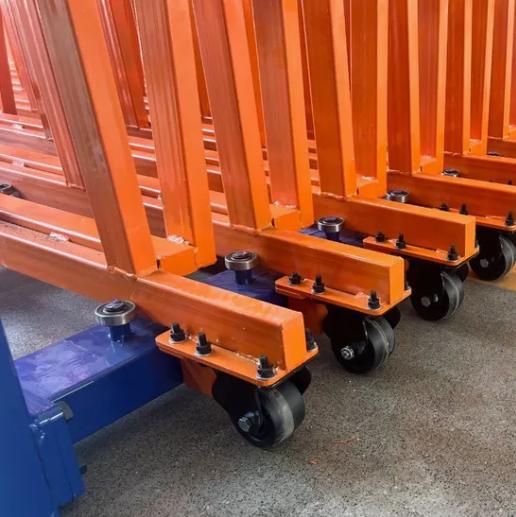

Each drawer rides on hardened steel ball bearing rails rated for 100,000 cycles under full load. The 100 percent extension travel is not a convenience feature; it is a functional requirement. Partial extension leaves the rear of the drawer obscured, which is precisely where small remnants migrate during repeated use. Full extension exposes the entire drawer surface, eliminating blind spots that would otherwise hide usable material.

The frame is fabricated from structural carbon steel with a powder-coated finish formulated for the metal dust, cutting fluid aerosol, and occasional coolant spray present in laser cutting environments. Clear vertical spacing between drawers adjusts from 50 to 200 millimeters at the specification stage, allowing shops to match the gap to their typical remnant thickness and prevent material from binding during extension.

The Economics of Accessibility

The financial argument for the Herochu vertical rack rests on a simple observation: remnants are only valuable if they are used. A shop that generates 20 tons of offcuts per year and reuses 5 percent of them is discarding 19 tons of material that could have replaced new sheet purchases. The bottleneck is almost never a lack of remnants. It is a lack of accessible remnants.

When retrieval costs thirty seconds instead of thirty minutes, the calculus of reuse shifts. An operator who would never spend half an hour excavating a pallet stack will spend half a minute checking a drawer. Multiply that shift by every job setup, every shift, every operator on the floor, and the material savings accumulate quickly. Herochu users routinely report a 15 to 25 percent reduction in new sheet purchases within the first year of installation.

Integration with Existing Workflow

The Herochu rack does not require a shop to reorganize its entire material handling strategy. It fits into existing workflows with minimal disruption. Placement near the laser cutter creates a closed-loop system: the operator unloads finished parts, removes the skeleton, and sorts usable offcuts directly into the appropriate drawer. On the next job, the operator checks the rack before walking to primary stock. The physical distance between “generating a remnant” and “storing a remnant” shrinks to a few steps, which is the single most reliable predictor of whether remnant storage actually happens.

The rack is also compatible with the lifting equipment already present in most fabrication shops. Full drawer extension positions the load center outside the frame, allowing straightforward top-down access with vacuum lifters, overhead cranes, or slings. Shops running multiple laser tables with overhead gantry systems can retrieve from the rack without any modification to their existing handling procedures.

Built for the Floor, Not the Showroom

Industrial storage equipment earns its value in years three through ten, not in the first month. The Herochu rack is engineered for that timeframe. The corrosion-resistant heavy-gauge steel construction handles the temperature swings, humidity, and particulate load of a working fabrication floor. The drawer mechanisms are serviceable without specialized tools. The powder coating resists chipping from the incidental contact that any rack in a working shop will experience.

Herochu backs the frame with a ten-year warranty and the rail assemblies with a five-year warranty. For shops considering the transition from flat stacking to vertical pull-out storage, the warranty structure reflects a manufacturer’s confidence in the product’s service life under real industrial conditions — not laboratory conditions.
