Automatic Multi-Tower Plate Vertical Storage System

The storage of steel plates presents unique challenges that conventional racking systems struggle to address. Plates are heavy, bulky, and sensitive to damage from improper support or handling. Traditional floor stacking consumes vast floor areas, creates safety hazards, and makes specific plates difficult to access without disturbing surrounding inventory. Herochu has engineered a comprehensive solution to these challenges through the Automatic Multi-Tower Plate Vertical Storage System—a fully automated storage architecture that maximizes density while ensuring rapid, damage-free material access.

Vertical Density: Converting Air into Storage Capacity

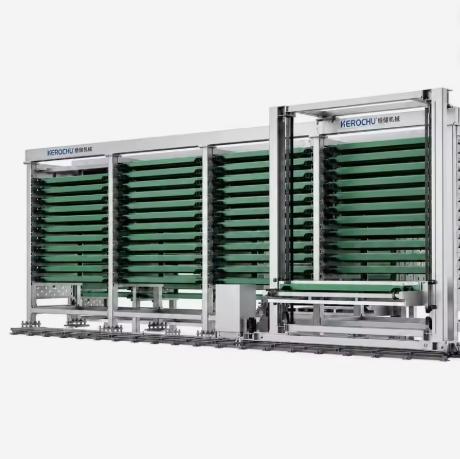

The Herochu Automatic Multi-Tower Plate Vertical Storage System fundamentally reimagines how steel plates are stored. Rather than spreading inventory horizontally across the shop floor, the system stacks plates vertically within tall storage towers, converting underutilized airspace into high-density storage capacity.

This vertical approach delivers dramatic space savings. Facilities can store the same volume of plates in a fraction of the floor area required by traditional racking, freeing valuable production space for revenue-generating activities. For facilities constrained by building size, the system effectively expands storage capacity without the capital expenditure of facility expansion.

The multi-tower configuration enables organized, classified storage that would be impossible with floor stacking. Different material grades, thicknesses, and dimensions can be assigned to specific towers or tower sections, ensuring that every plate is stored in its designated location and can be retrieved without disturbing other inventory.

Fully Automated Operation: From Retrieval to Delivery

The Herochu Automatic Multi-Tower Plate Vertical Storage System operates with minimal human intervention. The PLC-controlled shuttle retrieves plates from their storage positions and delivers them to a material cart for transport to production. This automated operation eliminates the manual handling that consumes labor, introduces errors, and creates safety hazards.

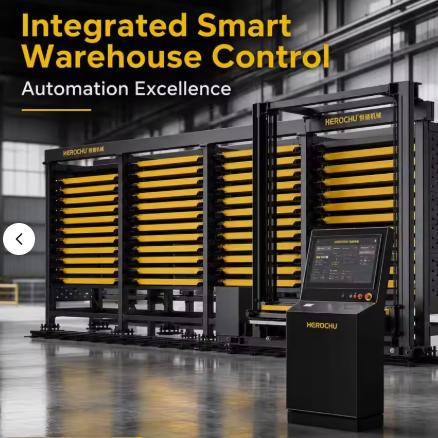

One-touch material delivery via the intuitive touchscreen interface enables operators to request specific plates with minimal effort. The system automatically locates the requested plate, retrieves it from its storage position, and delivers it to the designated output point. This simplicity reduces the time and expertise required for material retrieval, enabling facilities to deploy operators more flexibly.

The material cart with precision picking ensures that plates are handled carefully throughout the retrieval process. Automated picking eliminates the edge damage and surface scratching that commonly occurs during manual handling, preserving material quality from storage through production.

Comprehensive Plate Size Accommodation

The Herochu Automatic Multi-Tower Plate Vertical Storage System accommodates a comprehensive range of plate sizes. Standard configurations support dimensions from 3000×1500 mm through 4000×2000 mm to 6000×2000 mm, ensuring compatibility with virtually any plate format encountered in industrial fabrication.

The number of storage towers and layers is customizable to match specific facility requirements. Tower counts range from two to four or more, with each tower supporting six to twelve storage layers. Clear space between layers can be adjusted to accommodate varying material thicknesses, ensuring that every storage position is optimized for its intended material.

This flexibility enables facilities to configure the system for their specific material mix. A facility processing primarily thin sheets can configure tighter layer spacing for maximum density, while a facility handling thick plates can adjust spacing to accommodate greater material height.

Heavy-Duty Load Capacity

Industrial steel plates are heavy, and storage systems must support substantial loads without deflection or failure. The Herochu Automatic Multi-Tower Plate Vertical Storage System is engineered for these demanding conditions.

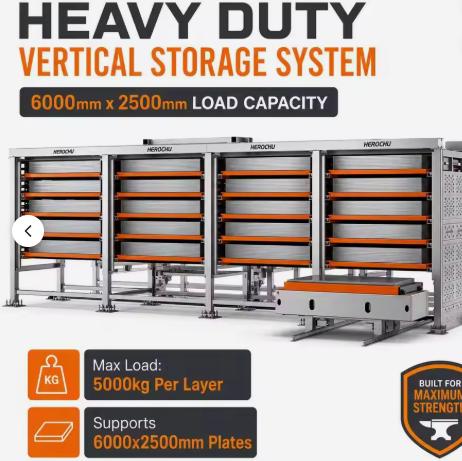

The HC-S3015-2-63 model supports 3,000 kg per storage level, while the HC-S4015-3-85, HC-S4020-4-105, and HC-S6020-4-125 models support 5,000 kg per level. This capacity ensures that even the heaviest plates can be stored safely, eliminating the need for separate heavy-stock handling procedures.

The system’s robust construction maintains structural integrity under full load, ensuring that plates remain properly supported and aligned throughout storage. This stability is essential for protecting material quality and ensuring reliable retrieval operation.

Precision Positioning for Seamless Production Integration

The Herochu Automatic Multi-Tower Plate Vertical Storage System delivers positional accuracy of ±2 mm, ensuring that every plate is positioned with surgical precision. This accuracy enables direct loading into laser cutters, punch presses, and other processing equipment without manual repositioning.

The system’s transfer speed of 5-15 m/min ensures rapid material movement between storage and production, minimizing the time that downstream equipment waits for raw material. This speed, combined with precise positioning, enables seamless integration with automated loading and unloading systems, creating a fully automated material flow from storage through processing.

Real-Time Inventory Management

The Herochu Automatic Multi-Tower Plate Vertical Storage System provides instant visibility into material availability through its integrated digital inventory management. The system tracks material dimensions, weight, and quantity for every stored plate, eliminating the guesswork that plagues manual inventory systems.

This real-time intelligence enables production planners to schedule jobs with confidence, knowing exactly what material is available and where it is located. The system’s ability to reserve material for specific production orders prevents conflicts and ensures that required plates are available when processing equipment needs them.

Integration with factory ERP systems extends this intelligence across the entire production ecosystem. Automated stocktaking, material reservations, and consumption reporting align inventory management with production scheduling, creating a closed-loop material logistics system.

Safety and Material Protection

Floor stacking of steel plates presents significant safety hazards. Unstable stacks can collapse, causing serious injury to workers and damage to expensive materials. The Herochu Automatic Multi-Tower Plate Vertical Storage System eliminates these risks through secure, engineered storage that keeps every plate properly supported and safely contained.

Material protection is equally important. Plates stored on the floor are susceptible to edge damage, surface scratching, and corrosion from ground contact. The system’s elevated, deflection-free support preserves material quality from receipt through production, reducing scrap rates and protecting the value of raw material inventory.

For facilities seeking to modernize plate storage operations, the Herochu Automatic Multi-Tower Plate Vertical Storage System delivers the density, automation, and intelligence required for competitive manufacturing. It transforms plate storage from a passive necessity into an active contributor to production efficiency, safety, and profitability.
