Vertical Design Metal Sheet Scrap Holder for Warehouse Space Optimization

Warehouse managers constantly seek ways to increase storage density without sacrificing accessibility. For metal sheets and large scrap pieces, the solution lies in changing orientation – from horizontal to vertical. The Herochu Vertical Design Metal Sheet Scrap Holder is an engineered system that maximizes cubic space utilization while providing immediate access to every stored sheet. This article explains how the vertical design, combined with multi-level drawer construction, transforms warehouse operations.

The Vertical Design Concept

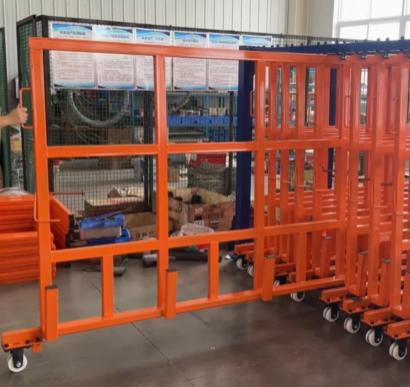

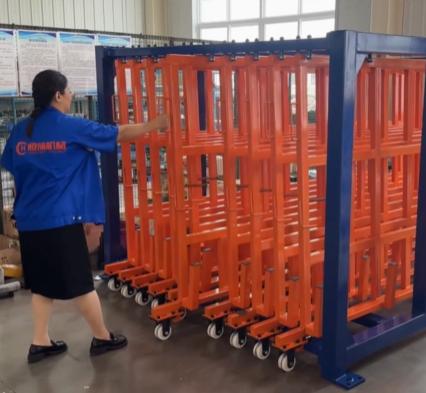

Traditional metal sheet storage relies on horizontal stacking on racks or pallet racking beams. This method requires wide aisles for forklifts and makes lower sheets inaccessible without removing upper layers. The Herochu vertical design eliminates these inefficiencies. By storing sheets on their edge within pull-out drawers, the holder uses vertical height rather than floor area. A single holder with 15 levels stores as many sheets as a row of flat racks, but occupies only one-third of the aisle space.

The vertical design also improves material preservation. Sheets stored horizontally tend to bow or bend under their own weight over time. Vertical storage eliminates this problem because the sheet’s weight is distributed along its edge, supported evenly by the drawer base and anti-skid strips.

Key Features of the Herochu Metal Sheet Scrap Holder

• Structure: Drawer-type, multi-level racking with open front for easy access.

• Drawer Movement: Integrated pull-out type, allowing 100% extension. Each drawer rolls out smoothly on heavy-duty bearings.

• Number of Layers: Configurable up to 15 floors (standard model).

• Available Height of Compartments: Adjustable in 50 mm increments.

• Load Capacity per Drawer: 500 kg to 1000 kg (standard), up to 2000 kg (heavy-duty option).

• Sheet Dimensions Supported: Lengths from 1000 mm to 6000 mm; widths from 500 mm to 2000 mm.

• Mobility: Combined design – can be stationary or fitted with swivel casters with brakes.

• Color: Fully customizable to match warehouse color schemes or safety zones.

Space Optimization in Practice

Consider a typical metal warehouse with 2000 square meters of floor space. Using flat stacking pallets, storage density for 1000 sheets of 3000×1500 mm steel might require 150 square meters of pallet positions plus 200 square meters of maneuvering aisles. A set of five Herochu vertical metal sheet scrap holders, each occupying 3.75 square meters (2.5m x 1.5m), would store the same 1000 sheets in only 18.75 square meters – an 80% reduction in floor space used.

Additionally, because each drawer pulls out completely, the aisle width required in front of the holder is only slightly more than the sheet length. No forklift turning radius is needed. This allows much narrower aisles compared to traditional racking systems.

Clear Inventory and Quick Retrieval

Warehouse efficiency is not just about density but also about retrieval speed. The Herochu holder’s drawer design creates a transparent inventory. Each drawer holds a single batch of sheets – for example, all 3mm mild steel remnants. Labels on drawer fronts indicate material type, thickness, and quantity. When an order calls for a specific offcut, the worker walks directly to that drawer, pulls it open, and extracts the sheet. No searching, no restacking.

This system also supports FIFO (First-In-First-Out) inventory management, important for materials that may oxidize or degrade over time. Because all sheets in a drawer are equally accessible, the oldest sheets can be used first without extra handling.

Durability and Industrial Construction

Herochu builds these holders for continuous warehouse duty. The steel frame is welded from 5mm to 8mm thick structural sections. Drawer slides are made from cold-rolled steel with precision-ground raceways. The anti-skid strips are replaceable rubber composites resistant to oil and metal shavings. The entire unit is finished with a baked-on powder coat that resists chipping and rust.

Each holder is tested at the factory to verify smooth drawer operation under 125% of rated load. The closed bottom and open top design allows for easy cleaning – metal dust and small scraps can be swept out from the top or between drawers.

Customization and Serviceability

Herochu understands that no two warehouses are identical. Customization options include:

• Adjusting the number of drawers (from 5 to 20).

• Changing drawer depth to match specific sheet lengths.

• Adding a central locking system for security.

• Installing wheel kits for repositionable storage.

• Custom color per corporate standards.

The holder is classified as “serviceable for special purpose” – meaning Herochu can engineer modifications for unique applications, such as corrosive environments, cleanrooms, or high-temperature areas.

Installation and Lead Time

Standard models ship within 30 days. Each unit is packed on a steel bottom support, ready for forklift unloading. Herochu offers on-site installation services in major industrial regions. For remote locations, detailed installation videos and step-by-step guides are provided. All hardware and tools required for assembly are included.

Why Choose Herochu

Herochu combines engineering excellence with direct factory pricing. The Vertical Design Metal Sheet Scrap Holder is a prime example of thoughtful industrial design that reduces warehouse operating costs. No minimum order quantity – start with one unit or outfit an entire facility. Contact Herochu for a free space optimization analysis and 3D layout drawing.
