Vertical Pull-out Sheet Metal Scrap Rack

Laser cutting operations generate scrap at a relentless pace. Offcuts, remnants, and partial sheets accumulate around the cutting table within hours of operation, creating a logistical challenge that extends far beyond simple housekeeping. These irregularly sized metal pieces, if stored improperly, become a liability rather than an asset—they consume valuable floor space, introduce safety hazards with sharp edges, and render specific pieces nearly impossible to locate when smaller jobs demand them.

The Vertical Pull-out Sheet Metal Scrap Rack from Herochu is purpose-built to address this industrial waste cycle. Unlike generic shelving or floor piling, this system provides a dedicated, organized home for metal plate scraps, transforming waste storage into a value-retaining asset.

The Scrap Storage Challenge in Laser Cutting

The primary issue with storing metal scraps is the inherently chaotic nature of the material. Unlike standard raw sheets that arrive in uniform dimensions, remnants come in every conceivable size and shape. Traditional horizontal stacking makes it nearly impossible to retrieve a specific piece from the bottom of a pile without moving everything on top. This leads to what industry professionals call “inventory burial”—usable material left to rust or eventually scrapped because retrieval is simply too labor-intensive.

The default response in most laser cutting shops is to lean remnants against a wall, stack them on pallets, or toss them into bins. These methods guarantee that nobody will bother searching through the pile when a remnant-sized order lands on the schedule. The result is predictable: new full sheets are consumed for parts that could have been cut from existing offcuts, while perfectly usable material rusts in corners.

The Herochu Solution: Vertical Pull-Out Design

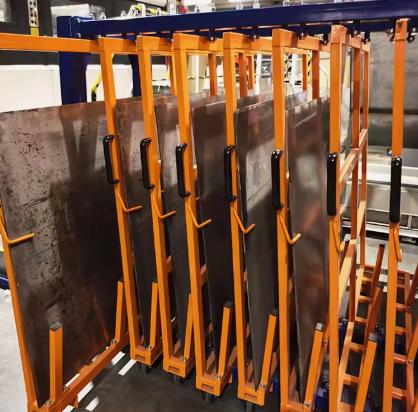

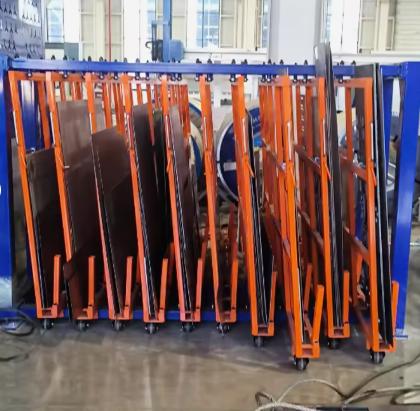

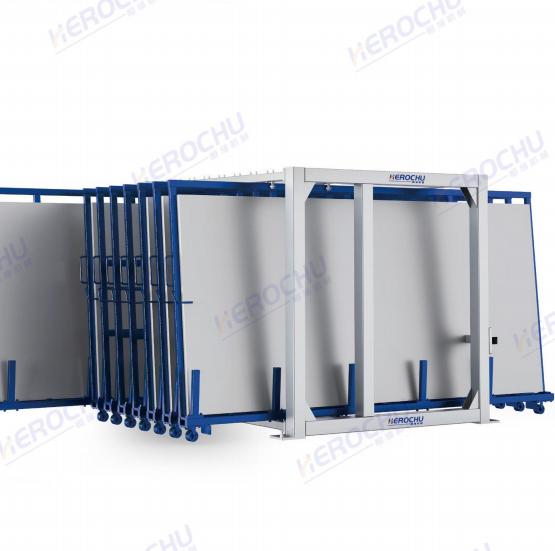

Herochu engineered the vertical sheet metal scrap rack specifically to eliminate these inefficiencies. Each drawer in the Herochu vertical scrap rack operates independently and can be pulled out to 100 percent extension beyond the rack frame. This gives the operator full surface visibility of every stored piece before deciding whether it fits the next nesting layout.

The vertical structure is optimized specifically for remnant access. Rather than forcing workers to dig through unstable piles, the Herochu system presents each layer as a separate, fully accessible drawer. The operator walks to the rack, pulls out the appropriate drawer, scans the surface in seconds, and either retrieves the piece or slides it shut and moves on.

Technical Specifications for Laser Cutting Environments

The HC-V series from Herochu accommodates sheet dimensions up to 3000×1500 mm, with layer counts customizable to meet specific operational requirements. Standard configurations include 8 or 15 layers, each supporting up to 1,000 kg per single layer. Clear space between layers can be customized to 60 mm or adjusted according to material thickness.

For laser cutting operations that handle particularly large formats, Herochu offers configurations supporting sheet lengths up to 6000 mm. The drawer moving method employs an integrated pull-type mechanism, ensuring smooth operation even under full load. Delivery cycles are standardized at 30 days, with on-site installation and online guidance available to ensure seamless integration into existing workflows.

Material Utilization and Cost Reduction

The layered organization system directly boosts material utilization and cuts production costs. When every remnant is visible and accessible, operators can quickly identify pieces suitable for upcoming jobs. This encourages repeated use of offcuts, minimizing waste and reducing the frequency of new sheet purchases.

The time savings are substantial. Traditional methods of searching through stacked remnants can take 15 to 20 minutes per retrieval attempt, with no guarantee of success. With the Herochu vertical pull-out system, the same process takes under two minutes. Over hundreds of jobs per month, the material cost savings range from 15 to 25 percent of sheet consumption—a margin improvement that flows directly to the bottom line.

Safety and Ergonomic Benefits

Beyond efficiency, the Herochu Vertical Pull-out Sheet Metal Scrap Rack addresses critical safety concerns. Traditional scrap storage methods create hazards: sharp edges at waist height, unstable leaning stacks that can topple, and heavy sheets that must be lifted and shuffled repeatedly. The Herochu system eliminates these risks by storing each piece flat in its own drawer, accessed at ergonomic height with no lifting or shuffling required.

The non-skid strip at the bottom of each drawer prevents metal sheets from shifting during opening and closing. Drawers are equipped with wheels and sealed bearings, tested to withstand thousands of operational cycles. This engineering ensures that the rack maintains its structural integrity and professional appearance for years, even with daily use in demanding laser cutting environments.

Customization and Integration

Herochu understands that every laser cutting operation has unique storage requirements. The company offers comprehensive customization services—whether you need to adjust dimensions, increase load-bearing capacity, or change the finish color. The professional team works with each client to create a tailor-made vertical scrap rack that integrates seamlessly with existing machining equipment and material handling systems.

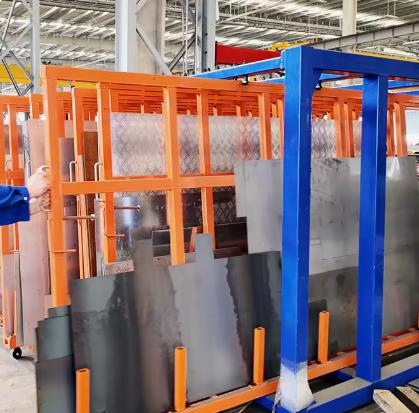

The rack can be placed alongside laser cutting tables, creating a simple operational loop: pull out a drawer, lift the sheet with an overhead crane or vacuum lifter, load the machine, cut the job, and return the remaining piece to the rack. The offcut never leaves the organized storage system, maintaining visibility and accessibility for future use.

Conclusion

The Vertical Pull-out Sheet Metal Scrap Rack from Herochu represents a fundamental shift in how laser cutting operations manage waste material. By transforming chaotic scrap piles into organized, accessible inventory, this system delivers measurable improvements in material utilization, labor efficiency, workplace safety, and overall production cost. For laser cutting workshops committed to operational excellence, the Herochu vertical scrap rack is not merely storage equipment—it is a strategic investment in profitability.
