Customized Industrial Warehouse Storage Steel Telescopic Cantilever Rack

Warehouse managers dealing with long metal stock face a recurring problem: standard racking never fits the actual inventory. Off-the-shelf cantilever systems assume uniform load dimensions, but real-world warehouses hold a shifting mix of pipe bundles, bar stock, profiles, and leftover cuts that rarely conform to a single specification. The Herochu Customized Industrial Warehouse Storage Steel Telescopic Cantilever Rack is built around this reality, offering dimensional flexibility that adapts to the material rather than forcing material to adapt to the rack.

Why Customization Matters for Long-Item Storage

A fixed-dimension rack wastes vertical space when storing short remnants and overstresses arms when loaded with full-length bundles that exceed design assumptions. Customization addresses both extremes. Herochu engineers each system around the actual goods — pipe diameter, bundle weight, profile cross-section, and total warehouse ceiling height — so that every tier operates within its rated capacity while occupying the minimum necessary floor footprint.

The process begins with a site survey. Column height, arm projection, base length, and tier spacing are all selected from a wide range of configurable values. Column heights accommodate warehouses from compact 3-meter eaves to high-bay facilities exceeding 8 meters. Arm lengths from 500 mm to 1000 mm and base lengths from 1200 mm to 2200 mm allow the rack to match both small bar stock and large-diameter tube bundles. When a facility stores mixed material types, tiers can be set at different spacings within the same upright — dense spacing for thin rod on lower levels and wider spacing for bulky profiles above.

Structural Configuration Options

The upright column frame is the backbone of the system. Herochu constructs it from square tubing welded at the column-to-base junction, creating a rigid node that resists the torsional loads generated when cantilever arms extend under full capacity. Multiple upright frames are connected by adjustable diagonal flats and a connecting bar system. This is not a cosmetic addition — the diagonal flats triangulate the structure, transferring lateral loads into the base and preventing the frame from racking under asymmetric loading when one side is fully loaded and the other is empty.

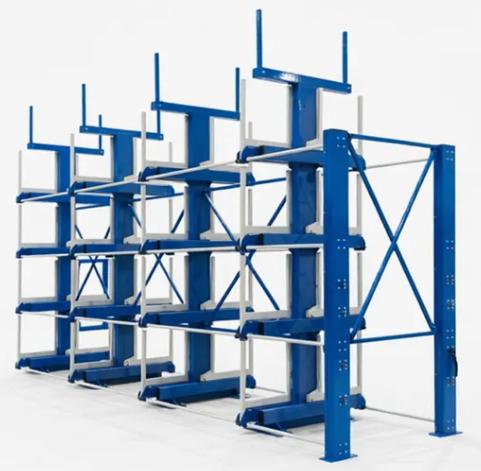

The telescopic function itself is the feature that separates this rack from conventional cantilever designs. Each arm is endowed with a free telescopic mechanism actuated by a manual winch. When an operator turns the winch, the arm extends outward or retracts inward along its guide channel. In the retracted position, arms sit flush within the column footprint, leaving the aisle clear for forklift passage or bridge crane movement. In the extended position, arms project outward to support the load during deposit and retrieval.

Matching Rack Dimensions to Material Types

Different materials impose different storage requirements. The table below illustrates how configuration parameters shift based on what is being stored:

This configurability means a single rack row can serve multiple departments — a fabrication shop storing raw bar on one side and finished profiles on the other, for instance, with each tier set to the appropriate height and arm projection.

Telescopic Operation and Bridge Crane Integration

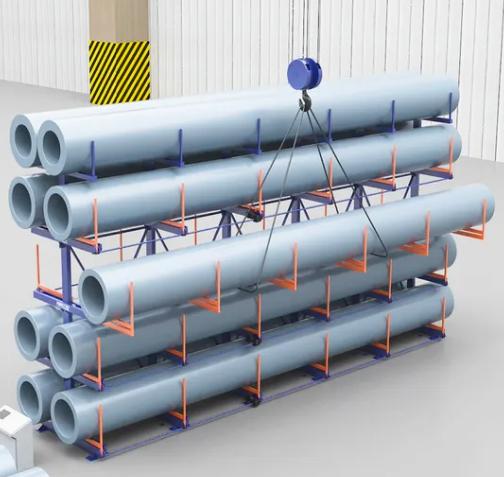

The manual winch mechanism is designed for single-operator use. An access lane of roughly 1.2 to 1.5 meters is sufficient for an operator to walk alongside the rack, turn the winch, and extend the arms. Once the load is placed — typically by bridge crane from above or by forklift from the aisle — the arms retract, returning the aisle to its full clear width.

This operational model is particularly valuable in facilities where floor space is at a premium. A conventional cantilever rack with permanently projecting arms requires an aisle wide enough to clear the full arm length plus the load overhang. The telescopic version needs only the clearance for the operator and winch mechanism during the brief loading cycle. For a warehouse with ten rows of rack, this can recover hundreds of square meters of usable floor area.

Customization Beyond Dimensions

Dimensional flexibility is the starting point, not the endpoint. Herochu offers additional customization layers:

• Tier count: 2 to 7 layers per upright, tailored to ceiling height and material height.
• Single-sided vs. double-sided configuration: single-sided racks against walls or back-to-back double-sided rows in open floor areas.
• Arm type: horizontal arms for flat bar and sheet remnants; tilted arms (2°–4°) for round pipe and bar to prevent roll-off.
• Compartment classification: independent storage compartments per tier on both sides, allowing material segregation by grade, diameter, or project number.
• Color and finish: powder coating in customer-specified RAL colors, applied over a twice-pickled oxidation-prepared steel surface for maximum resin adhesion and corrosion resistance.
• OEM labeling: manufacturer plates and documentation can be configured to customer specification.

Quality Control in Custom Manufacturing

Custom does not mean uncontrolled. Every Herochu telescopic cantilever rack passes through a multi-stage quality inspection process. Raw material verification confirms Q235B or Q345 carbon steel grade compliance before fabrication begins. Weld inspection follows each column-to-base and arm-to-guide weldment. After powder coating, the finish is checked for coverage uniformity and adhesion. Before shipment, a pre-shipment load test verifies that each tier carries its rated capacity without permanent deformation.

The dual-beam crossbar design deserves particular attention here. Rather than a single connection point between arm and upright, the dual-beam configuration distributes the bending moment across two separated connection nodes. This reduces stress concentration at any single bolt group and allows the system to carry 3 to 5 tons per compartment — the rating that appears across the HC-G series models — with a substantial safety margin.

Practical Outcomes for Warehouse Operations

Facilities that deploy a customized telescopic cantilever system from Herochu report three measurable changes. First, search time for specific material drops, because each compartment is independently classified and accessible. Second, material damage rates fall, because loads are supported along their full length rather than balanced on improvised supports. Third, aisle space is recovered, because arms retract when not in active loading.

For warehouses storing mixed and variable long-item inventory, a rack that conforms to the material rather than the other way around is not a luxury — it is the difference between organized storage and chronic congestion. The Herochu Customized Industrial Warehouse Storage Steel Telescopic Cantilever Rack delivers that conformity through genuine dimensional and structural customization, backed by a Q235B steel frame and a telescopic mechanism proven across hundreds of installations.

Contact Herochu with your material specifications and warehouse dimensions. The engineering team will configure column heights, arm lengths, base lengths, and tier counts to match your inventory profile — and deliver a rack that fits your operation rather than forcing your operation to fit a rack.
