Professional Warehouse Storage Solution Telescopic Cantilever Racking System

A warehouse storage solution is only as professional as the engineering behind it. The term “professional” in this context means more than appearance — it refers to a system designed around calculated load paths, verified material properties, and operational workflows that integrate with the handling equipment already present in the facility. The Herochu Professional Warehouse Storage Solution Telescopic Cantilever Racking System is specified against these criteria, delivering a storage architecture that meets structural, operational, and integration requirements simultaneously.

What Defines a Professional Storage Solution

Three characteristics distinguish a professional storage system from a commodity rack purchase:

Engineered Load Paths. Every load on the rack follows a defined path from arm to upright to base to floor. At each transfer point, the connection is designed to carry the calculated moment, shear, and axial forces. Nothing is left to assumption or rule-of-thumb sizing. The dual-beam crossbar, square tubing upright, and H-beam base each serve a structural role that can be traced through the load analysis.

Material Verification. The steel is not generic. It is Q235B high-strength carbon steel, with material certificates confirming yield strength, tensile strength, and chemical composition before fabrication begins. For higher-load applications, Q345 or 45# carbon steel is specified. This is the difference between a rack that carries its rated load indefinitely and one that gradually deflects under sustained loading.

Operational Integration. A professional system is designed to work with the facility’s existing handling equipment — bridge cranes, forklifts, and loading patterns — rather than requiring new equipment or modified workflows. The manual telescopic winch mechanism is compatible with any facility that has an overhead crane or forklift, because the rack does not impose its own handling requirements beyond standard long-item practice.

The Telescopic Cantilever Architecture

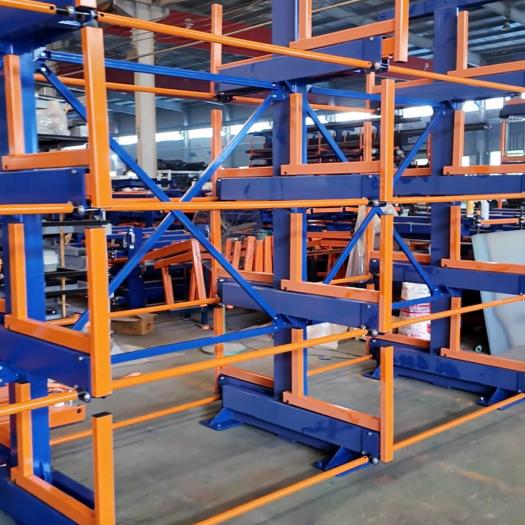

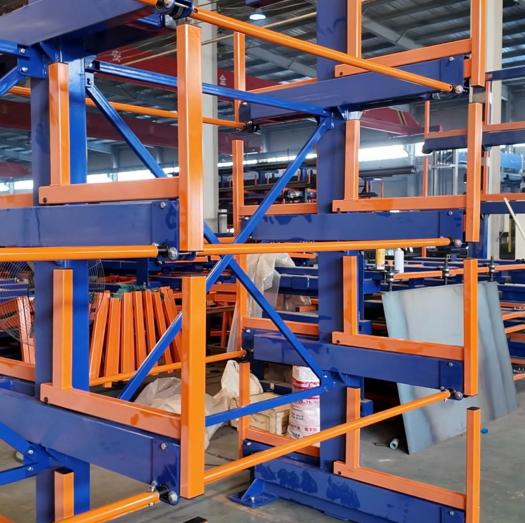

The telescopic cantilever racking system is built on a conventional cantilever foundation — uprights, arms, bases, and cross braces — with the addition of a retractable arm mechanism. This mechanism transforms the rack from a static structure into an active storage device that changes configuration during loading and retrieval operations.

In storage position, arms are retracted within the column footprint. The rack occupies its floor area and nothing more — no projecting arms, no aisle obstruction. When material is to be loaded or retrieved, the operator turns the manual winch at the target tier. The arms extend outward, projecting beyond the column face to receive or release the load. A bridge crane lowers material onto the extended arms from above, or a forklift deposits it from the aisle. Once the material is seated, the arms retract, drawing the load into its storage position.

This cycle repeats for every loading operation. The rack’s footprint changes dynamically — compact when idle, extended only during active access. For a warehouse with multiple rack rows, this means the total aisle space required is determined by the number of rows being simultaneously accessed, not by the sum of all arm projections across all rows.

Independent Compartments and Classification Storage

A defining feature of the Herochu system is the independent compartment per tier. Each storage position on each side of the rack is a discrete, separately accessible compartment. This is the structural and operational foundation for classified storage.

The benefit of compartmentalization is direct. Without it, long-item storage degenerates into stacking — material piled on material, with the bottom layer inaccessible until the layers above are removed. With independent compartments, each material type occupies its own position, accessible without disturbing any other stored item.

Classification can follow any scheme the operation requires:

• By material grade: carbon steel compartments separate from alloy steel, preventing grade contamination during retrieval.
• By diameter or cross-section: small bar on lower tiers with dense spacing, large pipe on upper tiers with wide spacing.
• By project or job number: dedicated compartments for each active job, ensuring that material for Job A is not mixed with material for Job B.
• By status: incoming inspection material separated from released stock, separated from remnants awaiting reassignment.

The dual-side configuration doubles the compartment count per upright. Both sides of the rack are fully functional — there is no passive back side. Material discharge on both sides uses the same mechanical assistance method, meaning the operator workflow is identical regardless of which side is being accessed.

Load Capacity and Model Selection

The system is offered across the HC-G model series, each configured for specific length and load parameters:

The HC-G6053S and HC-G6053 models serve 6,000 mm pipe lengths at 3,000 kg per level across five customizable tiers. These are the workhorse configurations for medium-capacity pipe and bar storage — appropriate for distribution warehouses and fabrication shops handling standard mill lengths.

The HC-G9065 model extends to 9,000 mm lengths at 5,000 kg per level across six customizable tiers. This configuration serves heavier structural applications — larger diameter pipe, heavier wall tube, and structural profiles that arrive in 9-meter mill lengths.

The HC-G12065 model handles 12,000 mm lengths at 5,000 kg per level across six customizable tiers. This is the heavy-end specification for facilities storing double-length pipe or long structural sections, where the 12-meter span and 5-ton per-level capacity require the full structural reinforcement of the dual-beam, H-beam base, and cross-braced frame.

Across all models, the 600 mm clear space between tiers is standardized but customizable. Facilities storing large-diameter structural tube or bundled material may specify wider clearances. Tier count is customizable within the 2 to 7 range, set to match ceiling height and material height.

Structural Component Engineering

Each component in the system is specified for its role in the load path:

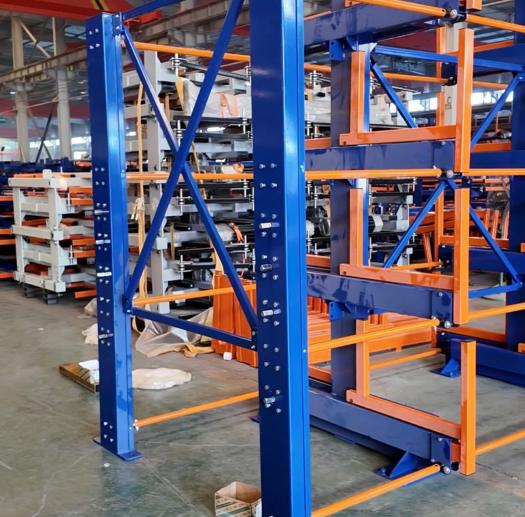

Uprights are fabricated from Q235 cold-rolled steel, punched at 100 mm hole spacing for vertical arm adjustment. The cold-rolling process produces a dimensionally consistent section with controlled wall thickness — a quality that hot-rolled alternatives do not always match. Single-sided and double-sided types are available; double-sided is the standard for freestanding rows, single-sided for wall-mounted or single-access applications.

Arms connect to uprights via bolted joints on heavy-duty models. Bolted connections allow field adjustment of arm height and replacement of damaged arms without disassembling the upright. Arms are offered in horizontal and tilted configurations — the 2° to 4° tilt is specified for round stock to prevent roll-off during seismic events, crane vibration, or forklift contact.

Bases are H-beam construction. The H-beam is selected for its high section modulus in both major axes, providing resistance to vertical crushing from the column load and horizontal sliding from asymmetric arm loading. The base is the component that prevents the rack from overturning under full cantilever load.

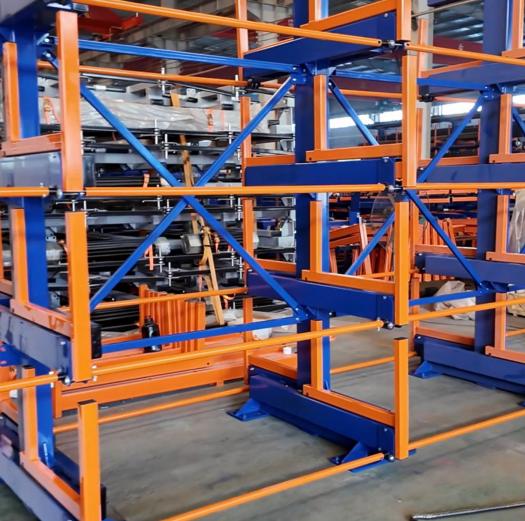

Cross braces connect adjacent uprights with eight crisscrossing forks. This pattern creates multiple triangulated load paths between columns, distributing lateral loads — from seismic activity, forklift impact, or crane-induced vibration — across the full rack row rather than concentrating them at any single column.

Finish Specification for Industrial Longevity

The surface treatment process is engineered for the industrial environment. Steel surfaces receive two-stage power pickling — a chemical descaling process that removes mill oxide and produces a micro-roughened surface that promotes mechanical adhesion of subsequent coatings. After pickling, a controlled oxidation film forms on the steel surface, which enhances the electrostatic attraction of resin powder during the powder coating application.

The powder coating is then heat-cured, forming a continuous polymer layer that is harder and more adherent than conventional liquid paint. This finish resists the physical contact inherent in industrial storage — pipe ends dragging across arms, bar tips striking uprights, crane hooks catching on edges. The coating also provides corrosion resistance for facilities in humid environments or where stored material may carry moisture from outdoor storage.

Custom RAL colors are available. The finish is uniform and specified to customer requirements — a detail that matters for facilities with visual standards or color-coded storage zones.

Professional Support Services

A professional storage solution extends beyond the physical rack. Herochu provides installation drawings with every shipment, enabling the customer’s installation team or contractor to erect the system correctly without on-site engineering support. Design services are available for non-standard configurations — unusual ceiling clearances, floor loading limitations, or integration with existing handling equipment layouts. OEM service is available for customers requiring private labeling or specific documentation packages.

Pre-shipment quality inspection includes load testing of each tier to rated capacity. This is not a sample test — it is a per-tier verification that confirms the fabricated system meets its design specification before it enters service. The quality inspection team checks every fabrication step, from raw material grade verification through final coating coverage.

System Summary

The Herochu Professional Warehouse Storage Solution Telescopic Cantilever Racking System is a complete storage architecture. It is engineered from Q235B steel with dual-beam crossbars, H-beam bases, and cross-braced uprights. It carries 3 to 5 tons per compartment across 5 to 6 customizable tiers. It compartmentalizes storage for classified material management on both sides of the rack. And it integrates with existing bridge crane and forklift operations through a manual telescopic winch mechanism that requires no facility power.

For warehouse operations storing metal tubes, profiles, bars, and longer items where structural reliability, space efficiency, and material classification are operational requirements rather than preferences, this system represents the professional standard in telescopic cantilever storage.
