Telescopic Steel Cantilever Racking System for Longer Items

Long items — structural profiles, tubing, bar stock, lumber, and manufactured components exceeding three meters — break the assumptions of conventional pallet racking. They overhang beam edges, concentrate point loads at unsupported midspans, and obstruct aisle access for handling equipment. A Telescopic Steel Cantilever Racking System resolves these issues by supporting long material along its full length on arms that retract when not in use. Herochu designs these systems for facilities where longer items are the norm, not the exception.

The Problem with Storing Long Material on Standard Racking

Conventional pallet racking is optimized for 1,200 mm deep pallets carrying uniformly distributed loads. When a six-meter steel profile is placed across two pallet rack beams, several problems emerge simultaneously. The beam span may exceed the material’s flexural capacity, causing the profile to deflect under its own weight. The overhang beyond the beam supports is unsupported, creating a lever arm that can tip the load during placement. And the pallet rack uprights obstruct access to the load from the side, meaning a forklift must enter the aisle head-on and extract the full length of material in a single maneuver — difficult, slow, and potentially hazardous.

Cantilever racking eliminates the front uprights, leaving the load fully accessible from the side. But conventional fixed cantilever arms project permanently into the aisle, consuming floor space whether they are loaded or not. The telescopic variant adds a second dimension of efficiency: arms extend only when material is being loaded or retrieved, retracting into the column footprint between operations.

How the Telescopic Mechanism Handles Longer Spans

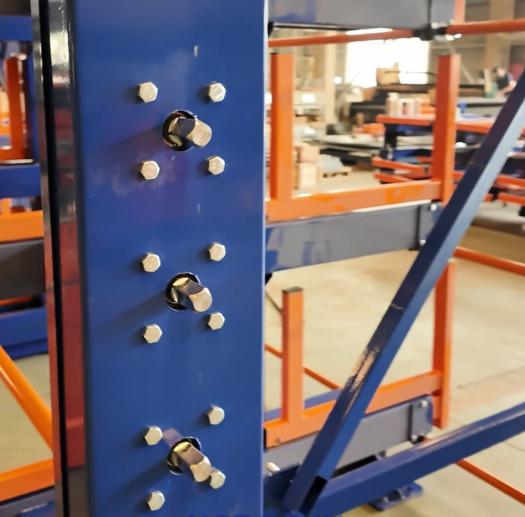

The telescopic arm travels along a guide channel mounted to the upright. A manual winch drives the extension and retraction — a mechanical system chosen for its reliability, low maintenance, and independence from facility power supply. The operator turns the winch at rack-side, and the arm moves outward or inward without requiring any powered assistance.

For longer items, this mechanism provides two specific advantages. First, it allows the rack to support material lengths that would otherwise require a wider aisle than the facility can spare. A 12-meter pipe stored on fixed cantilever arms needs an aisle wide enough for the full pipe length plus crane or forklift clearance — potentially 14 meters or more. The same pipe on a telescopic system needs only enough aisle width for the operator and winch mechanism during loading, after which the pipe is drawn into its storage position and the aisle returns to a fraction of that width.

Second, the retraction action stabilizes the load. As the arms draw inward, longer items are guided by the arm geometry into a settled position against the column backstop. For profiles with high length-to-diameter ratios — thin-walled tube, slender bar — this guidance prevents the load from remaining in a precarious edge-balanced position after crane deposit.

Structural Design for Long-Span Loading

Longer items impose greater bending moments on support arms. A 12-meter pipe bundle weighing 5,000 kg generates a bending moment at the arm-to-upright connection that is roughly double the moment from a 6-meter bundle of the same weight. The Herochu structural package addresses this through three features working in concert.

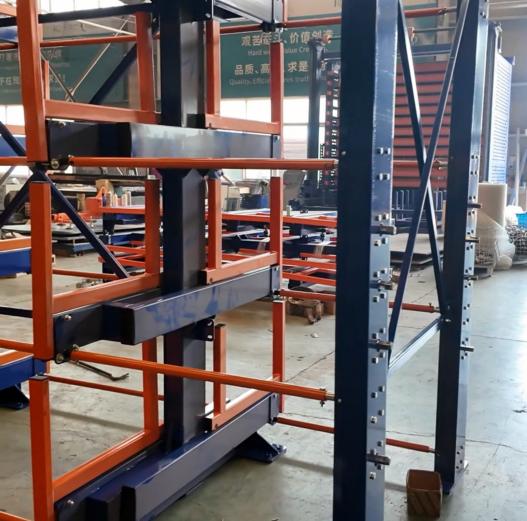

Square Tubing Upright Frame: The column is fabricated from square tubing, welded at the base. Square tubing is selected over I-beam or channel for its equal-axis moment of inertia — it resists bending equally in both the front-back and side-side directions. When a long load is placed asymmetrically on one side of a double-sided rack, the column must resist torsion as well as bending. Square tubing handles both.

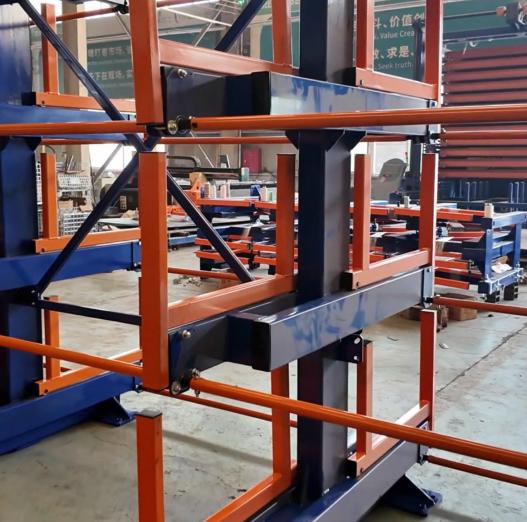

Dual-Beam Crossbar: The arm-to-column connection uses two separated beams rather than a single connection point. This resolves the bending moment across a vertical couple, reducing peak fastener stress and allowing the system to carry higher loads per compartment without arm deflection.

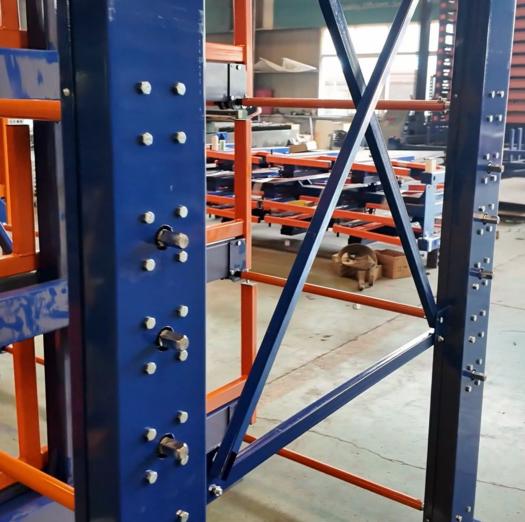

H-Beam Base and Cross Brace Assembly: The base is constructed from load-bearing H-beam, providing vertical and horizontal stability. Cross braces connect adjacent uprights with eight crisscrossing forks, creating a torsion-resistant frame that prevents racking under the asymmetric loads that long items frequently generate.

Component Breakdown

The complete system comprises four primary component groups:

Uprights — Fabricated from high-quality Q235 cold-rolled steel, punched with adjustment holes at 100 mm spacing. Single-sided and double-sided configurations are available. The 100 mm hole pitch allows cantilever arms to be repositioned vertically in fine increments, accommodating changing inventory profiles without disassembling the rack.

Arms (Beams) — Available in horizontal and tilted configurations. Tilted arms set at 2° to 4° prevent round stock from rolling off the support surface. Light-duty arms embed into the upright; heavy-duty arms — required for the 3 to 5 ton per compartment ratings — connect via bolted joints for field serviceability.

Bases — H-beam construction, sized to the arm length and load rating. The base is the foundation that resists overturning moment from the cantilever load.

Cross Braces — Horizontal connectors between uprights. The eight-fork crisscross pattern triangulates the structure against torsional and lateral loads, ensuring that a single-sided load on one column does not induce frame distortion across the full row.

Application Across Material Types

The telescopic cantilever system is not limited to a single material category. Its adjustable geometry serves any longer item that does not fit pallet racking:

• Steel pipe and tube: Seamless and welded, carbon and alloy, bundled or loose. Tilted arms prevent roll-off; compartmentalized tiers allow classification by grade.
• Structural profiles: I-beam, channel, angle, and hollow structural section. Horizontal arms support flat-stacked profiles.
• Bar stock: Round, square, hex, and flat bar. Dense tier spacing on lower levels accommodates smaller diameters.
• Furniture components and lumber: The system’s origins include furniture industry applications where long wooden components require accessible storage.
• Residual and remnant material: Cut-offs and leftovers from cutting operations, stored on dedicated short-arm tiers.

Configuration Range

Herochu configures each system to the specified material and facility dimensions. The configurable range spans:

• Column heights matched to warehouse eave height
• Arm lengths from 500 mm to 1,000 mm, customized to material cross-section
• Base lengths from 1,200 mm to 2,200 mm, sized to load and stability requirements
• Deployed arm length from 500 mm to 1,000 mm
• 2 to 7 layers per upright, matched to ceiling clearance and material height
• Story heights from 440 mm to 940 mm, adjustable in 100 mm increments
• Active (extended) height from 250 mm to 800 mm

This range means the system scales from a compact two-tier remnant rack in a small fabrication shop to a seven-tier high-bay installation holding thousands of tons of structural profiles. The material specification — Q235, Q345, or 45# high-class carbon steel — is selected based on the load calculation for the specific application.

Manufacturing and Quality Assurance

Production follows a controlled process chain. Steel is cut to specification, welded by certified procedures, and inspected at each fabrication stage. The dual-stage power pickling process removes mill scale and prepares the surface for powder coating. The coating is applied as a resin powder that electrostatically adheres to the prepared steel surface, then cured under heat to form a continuous protective layer. This finish outperforms conventional liquid paint in chip resistance, corrosion resistance, and color stability — extending rack service life in demanding industrial environments.

Each rack ships with installation drawings. OEM labeling, custom colors, and design engineering services are available on request. Pre-shipment load testing verifies that every tier meets its rated capacity before the system leaves the factory.

Operational Benefits Summary

For any facility storing items longer than three meters, the Telescopic Steel Cantilever Racking System from Herochu delivers measurable operational improvements. Aisle width requirements drop because arms retract. Material damage decreases because loads are fully supported along their length rather than balanced on edge. Search time falls because each compartment is independently classified and accessible. And the Q235B steel structure with dual-beam connections carries the heavy loads that long-item inventory imposes without the deflection or creep that compromises lighter systems over time.

The system is not a modified pallet rack or a repurposed shelving unit. It is a purpose-engineered structure for a specific class of material — and for warehouses where that material defines the inventory, it is the correct storage architecture.
