Manual Crank-Out Sheet Metal Storage Racks

Crank-out sheet metal storage racks represent the intersection of durable construction and precision engineering. The Herochu crank-out system is built to withstand the rigors of daily industrial use while delivering the precise, controlled access that modern fabrication workflows demand.

Q235B Steel Construction: The Foundation of Durability

The main frame of every Herochu crank-out sheet metal storage rack is constructed from Q235B high-strength steel. This material is selected for its exceptional strength-to-weight ratio and structural integrity, providing the load-bearing capacity required for multi-ton material storage without unnecessary bulk.

Q235B steel construction delivers significant advantages over standard galvanized alternatives, offering up to 40% greater load durability. This means the Herochu system maintains its structural integrity over years of heavy use, with reduced risk of deformation, fatigue, or failure. The dual-beam crossbeam design further enhances this durability by distributing loads evenly across the structure.

Robotic Welding and Precision Fabrication

Every Herochu frame starts as an 8 mm one-piece torsion box, welded robotically and then milled flat. This robotic welding process ensures consistent, high-quality welds that eliminate the weak points often found in manually welded structures. The precision milling that follows ensures that all mounting surfaces are perfectly flat, providing a stable foundation for the drawer tracks and guide systems.

Four sealed bearings ride on induction-hardened rails, so a fully loaded 5-ton drawer demands less torque than a sticky fire door. This combination of robotic welding, precision milling, and high-quality bearing systems ensures that the Herochu crank-out rack delivers smooth, reliable operation throughout its service life.

The Hand Crank Mechanism: Precision in Motion

The hand crank mechanism at the heart of the Herochu system is engineered for both power and control. The gear rack drive converts human input into controlled drawer movement. With a reduction gear design, the system provides the mechanical advantage needed to move heavy loads while maintaining the precision required for accurate positioning.

This is not a brute-force system. The operator supplies rotation, not lifting force. The crank multiplies torque so that moving 3 tons requires only about 15-20 kg of rotational force. This precision engineering means that even a single operator can position a heavy drawer exactly where it needs to be, without overshoot, binding, or the need for corrective force.

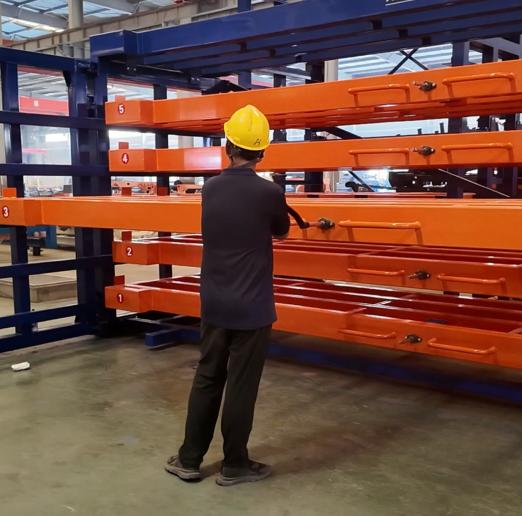

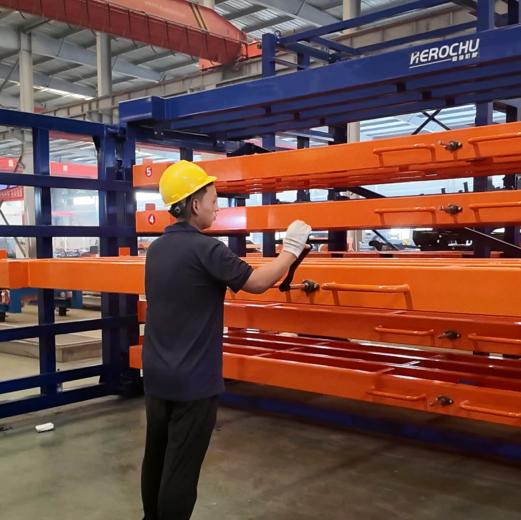

Folded Crank Handle with Positive Brake

The Herochu crank handle incorporates a folded design that doubles as a positive brake. When the operator releases the handle, the drawer stays put. This is not a friction-dependent holding mechanism — it is a positive lock that prevents unintended drawer movement.

This brake feature is particularly important in busy workshop environments where forklifts and other equipment operate in close proximity. Bump the rack with a forklift and the drawer stays put. The operator does not need to worry about drawers creeping open during other activities, and there is no risk of a loaded drawer sliding out unexpectedly.

Load Rollers and Lateral Guide Wheels

The undercarriage of each Herochu drawer features heavy-duty solid steel load rollers and lateral guide wheels. These components serve multiple critical functions. The load rollers bear the weight of the drawer and its contents, distributing the load across the track system. The lateral guide wheels keep the drawer aligned during extension and retraction, preventing the binding that can occur when heavy loads are pulled off-center.

This guided roller system ensures that drawer motion remains controlled and predictable. The operator does not need to fight binding, compensate for misalignment, or use extra force to overcome friction. The result is a smoother, safer, and more ergonomic operation that reduces wear on both the rack and the operator.

Certified Quality and Compliance

Every Herochu crank-out sheet metal storage rack is built to meet rigorous quality and safety standards. The systems are CE, UE, and ISO 9001 certified. This certification provides assurance that the rack has been designed, manufactured, and tested to international standards for quality management and safety.

For workshops operating in regulated industries or those that require documented compliance for insurance or audit purposes, the Herochu certification provides important documentation. It also reflects the company’s commitment to quality throughout the design and manufacturing process.

Long-Term Value Through Durable Engineering

The Herochu crank-out sheet metal storage rack represents a long-term investment in workshop efficiency and safety. The Q235B steel construction, robotic welding, precision bearings, and guided roller system all contribute to a service life measured in decades rather than years. When the cost of material damage, labor inefficiency, and workplace injuries is factored in, the Herochu system delivers a compelling return on investment that only grows over time.
