Manual Roll Out Sheet Metal Rack with Roll Out Shelves

The manual roll out sheet metal rack has emerged as the definitive storage solution for fabrication shops, metal service centers, and manufacturing facilities that handle heavy flat stock. The Herochu Manual Roll Out Sheet Metal Rack with roll out shelves transforms what was once a two-person, crane-dependent operation into a single-operator task that takes seconds rather than minutes.

The Problem with Floor Stacking

Floor stacking remains the most common method of storing sheet metal in workshops worldwide, yet it introduces a cascade of operational problems. Sheets at the bottom of a stack carry the weight of everything above them, leading to distortion and surface damage. Retrieving a specific sheet requires moving everything on top of it — a process that can take two people and a crane over 20 minutes. This “dead time” means expensive press brakes, laser cutters, and other capital equipment sit idle while operators dig through stacks.

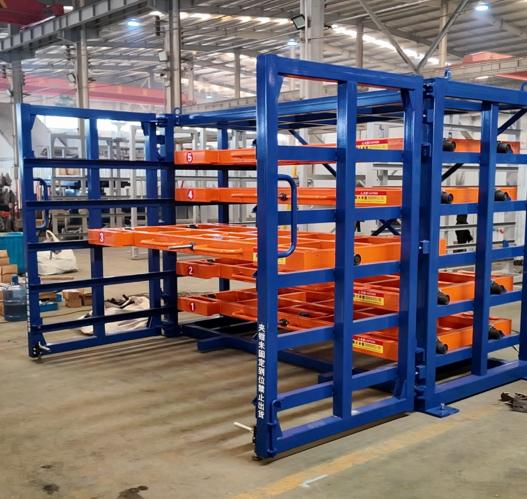

The Herochu manual roll out sheet metal rack replaces the floor stack with an organized vertical system that a single operator can run without any powered equipment. Each sheet or bundle occupies its own independent, roll-out shelf, eliminating the need to ever move one material to access another. This principle of single-piece flow for raw materials is a cornerstone of lean manufacturing, and its application here directly translates to a safer, more productive workshop.

Mechanical Advantage Through Gear Reduction

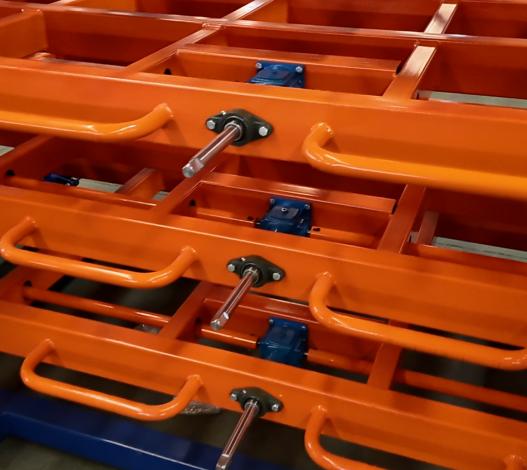

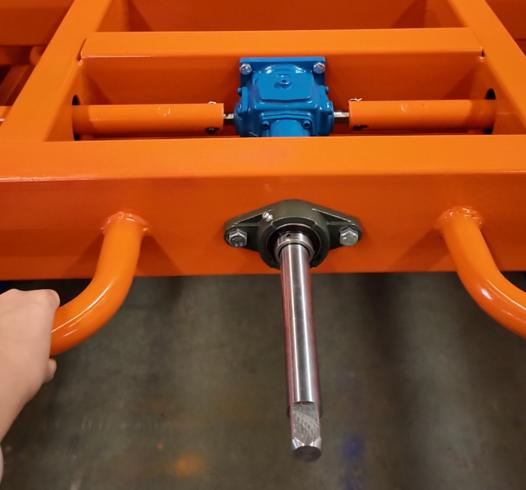

The challenge with heavy loads is overcoming inertia. A manual roll out rack addresses this through a gear and pinion system that acts as a force multiplier. The Herochu system utilizes a reduction gear design that allows a single operator to rotate a handle and smoothly extend a fully loaded drawer with minimal physical effort.

This mechanical advantage removes the physical strain and associated injury risks from the equation. The operator no longer needs to push, pull, or pry at the material. The result is a predictable, ergonomically sound workflow that keeps workers safe and productive throughout the shift.

Full Extension for Unobstructed Crane Access

The most significant efficiency gain from the Herochu manual roll out rack comes from its 100% full extension capability. When a drawer is fully rolled out, it is completely clear of the main rack structure. This creates an unobstructed vertical path for overhead crane loading operations. The crane hook or vacuum lifter can descend directly onto the desired plate without any risk of collision with the rack.

The operator can stand at a safe distance, managing the lift without ever placing hands or feet near the load. This seamless integration makes the storage rack an active part of the material handling process, not just a passive container.

Customizable Configurations for Any Workshop

The Herochu manual roll out sheet metal rack is available in a range of standard configurations, with full customization available for unique workshop requirements. Sheet sizes from 2000×1500 mm up to 6000×2000 mm can be accommodated, with layer counts and load capacities tailored to specific material types and workflow patterns.

Clear space between layers is customizable from 50 mm to 200 mm, allowing workshops to store materials of varying thicknesses without compromising access or safety. This flexibility ensures that the Herochu system adapts to the workshop, not the other way around.

Protecting Material Quality

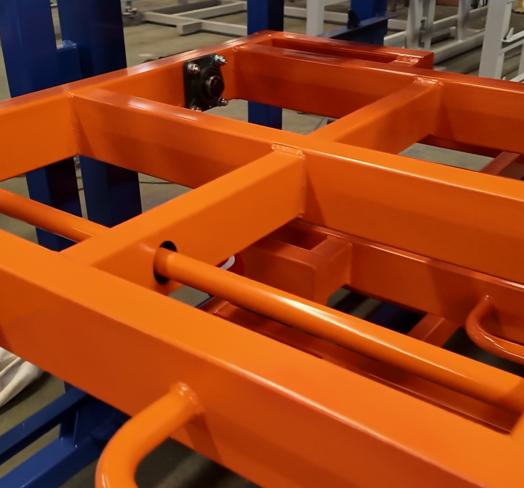

Surface scratches and edge damage are costly problems in sheet metal fabrication. The Herochu manual roll out rack protects material quality through its drawer-type design. Each sheet or bundle is stored independently, eliminating the scratching that occurs when sheets are dragged across one another during retrieval. The multi-layer drawer frame provides high-capacity storage while ensuring that materials remain pristine until they reach the production floor.

This protection extends to residual materials, scraps, and semi-finished products — all of which can be stored in the same organized system without risk of damage. The result is reduced scrap rates, better material utilization, and higher quality finished products.

A Solution for Every Material Type

The Herochu manual roll out sheet metal rack is suitable for storing a wide range of materials, including steel plates, iron plates, aluminum plates, copper plates, stone slabs, embossed plates, and more. This versatility makes it an ideal solution for workshops that handle diverse material types and need a single storage system that can accommodate them all.

For operations handling precious metals, specialty alloys, or high-value materials, the protection and organization offered by the Herochu system delivers an especially compelling return on investment. When every sheet represents significant material cost, the ability to store and retrieve without damage is not just convenient — it is essential.
