Smart WMS Compatible Steel Profile Storage System

The modern industrial warehouse rarely stores a single profile type. A typical steel service center may stock solid round bars, hollow tubes, rectangular hollow sections, angle irons, channels, and I-beams—all in multiple dimensions and grades. Storing this variety in separate dedicated systems is inefficient; storing them together in a common system requires intelligence.

The Herochu Smart WMS Compatible Steel Profile Storage System is engineered specifically for this mixed-inventory reality. It combines high-density vertical storage with intelligent warehouse management software integration, delivering a solution that transforms profile storage from a logistical burden into a strategic advantage.

The Intelligence Behind the Storage

What distinguishes the Herochu Smart WMS Compatible Steel Profile Storage System from conventional racking is its seamless integration with Warehouse Management Systems (WMS) and Enterprise Resource Planning (ERP) platforms. Inventory data syncs automatically across ERP and WMS platforms including SAP, Oracle, and Epicor, providing real-time visibility into stock levels, material locations, and usage patterns.

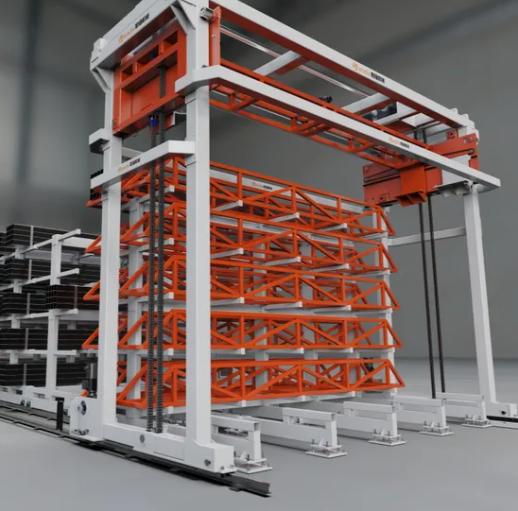

The system assigns each stored bundle a digital identity and an addressable tower position. When the manufacturing execution system calls for material, the gantry retrieves the bundle and delivers it directly to the load/unload bay at a safe working height. This level of integration eliminates manual inventory tracking, reduces errors, and ensures that the right material reaches the right production line at the right time.

Technical Specifications for Industrial Demands

The Herochu Smart WMS Compatible Steel Profile Storage System is built to handle the most demanding industrial requirements. Standard configurations support 6000mm material lengths, with custom options available for bundles up to 12 meters. Each grid cell measures 600mm × 500mm, providing stable support for long profiles.

The system offers exceptional load capacity, with individual rack layers supporting 3 to 5 metric tons and total system capacity reaching 10,000kg per unit. The number of storage floors is fully customizable, with standard configurations ranging from 8 to 13 levels based on facility ceiling height.

Motion is powered by a chain-driven transmission system operating along precision linear guide rails. Vertical lifting speed reaches 9 meters per minute, while inlet and outlet operations occur at 12 meters per minute. Positioning accuracy of ±2mm ensures smooth, precise material transfers.

Workflow Optimization Through Smart Integration

The Herochu Smart WMS Compatible Steel Profile Storage System is designed to integrate seamlessly into existing production workflows. Rather than requiring operators to search for materials or manually track inventory, the system automates the entire cycle of loading, storing, and retrieving profile materials without manual intervention.

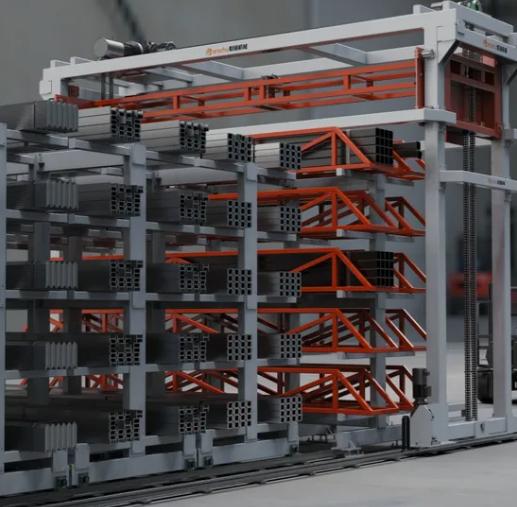

This is not a conventional racking system retrofitted with automation. It is a purpose-built intelligent warehouse that automates material flow from receipt to retrieval. Materials enter the system, receive a digital identity, and sit in an addressable tower position until the manufacturing execution system calls for them.

The gantry retrieves the requested material and delivers it directly to a designated access point at ergonomic height. Operators no longer need to climb ladders, balance loads overhead, or maneuver heavy equipment in tight aisles.

Space Efficiency and Cost Savings

By shifting from traditional horizontal storage to vertical, automated storage, the Herochu Smart WMS Compatible Steel Profile Storage System resolves key operational bottlenecks in pipe logistics and material feeding. The system utilizes vertical space efficiently, reducing the footprint required for material storage by 50% to 80% compared to traditional methods.

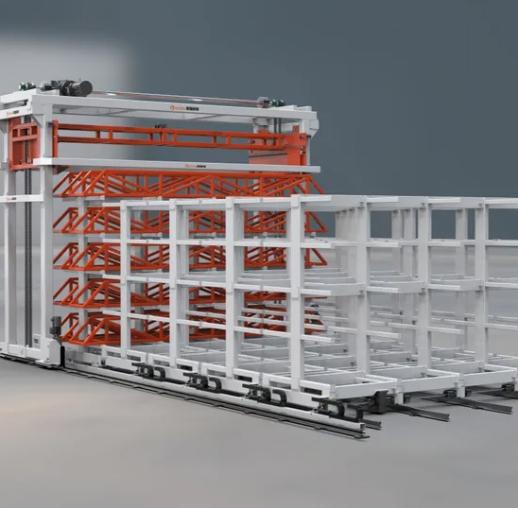

A single Herochu intelligent warehouse installation can store up to 500 tonnes of mixed profiles within a footprint of approximately 200 square meters, assuming a standard 12-meter bar length and 10 storage levels. This density is achieved through a combination of narrow aisle design, vertical stacking, and the elimination of fixed aisles in favor of a gantry-operated, multi-depth vertical tower system.

Certified Quality and Global Deployability

Every Herochu Smart WMS Compatible Steel Profile Storage System carries CE and ISO 9001 certifications, providing documented assurance of quality and safety. CE certification confirms compliance with European EN 15512 standards for static steel storage systems, validating structural integrity and safety features.

A dedicated quality control department compliant with ISO9001 standards oversees every stage of manufacturing, from raw material selection to final assembly and pre-shipment load testing.
