ISO9001/CE Certified Efficient Steel Pipes Automatic Storage Warehouse

For industrial operations requiring the storage of steel pipes, seamless tubes, and structural profiles, quality assurance is not optional—it is essential. Storage systems must not only perform reliably under heavy loads but also meet rigorous international standards for safety, structural integrity, and operational performance.

The Herochu ISO9001/CE Certified Efficient Steel Pipes Automatic Storage Warehouse is engineered to meet these exacting requirements. Every system holds CE, EU, and ISO 9001 certifications, reflecting Herochu’s commitment to meeting strict international standards for safety, performance, and quality.

Certification That Matters

ISO 9001 certification demonstrates that Herochu maintains a quality management system that consistently provides products meeting customer and regulatory requirements. CE certification confirms compliance with European EN 15512 standards for static steel storage systems, validating structural integrity and safety features.

These certifications are not merely paperwork—they represent documented assurance that every Herochu Efficient Steel Pipes Automatic Storage Warehouse has been designed, manufactured, and tested to meet the highest international standards. A dedicated quality control department compliant with ISO9001 standards oversees every stage of the manufacturing process.

Technical Specifications for Heavy-Duty Performance

The Herochu ISO9001/CE Certified Efficient Steel Pipes Automatic Storage Warehouse is built for the most demanding industrial applications. Standard configurations accommodate 6000mm material lengths, with customization available for bundles up to 8000mm or 12 meters.

Load capacity is exceptional: individual rack layers support 3 to 5 metric tons, with total system capacity ranging from 1000kg to 10,000kg per unit. Each storage cell measures 600mm × 500mm, engineered to evenly support long profiles and prevent sagging or warping over extended storage periods.

The system offers customizable storage configurations, with the number of floors adjustable based on facility requirements. Standard configurations range from 8 to 13 levels, with additional customization available for specific needs.

Motion is powered by a chain-driven transmission system operating along precision linear guide rails. Vertical lifting speed reaches 9 meters per minute, while inlet and outlet operations occur at 12 meters per minute. Positioning accuracy of ±2mm ensures smooth, precise material transfers without damage.

Structural Engineering and Durability

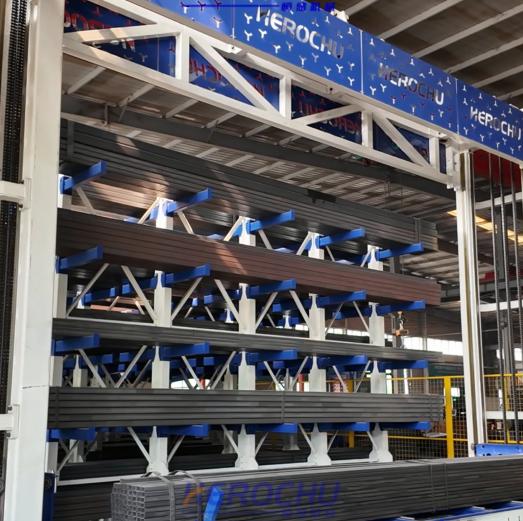

The Herochu ISO9001/CE Certified Efficient Steel Pipes Automatic Storage Warehouse is constructed from high-strength structural steel built to resist dynamic loads and structural deflection under multi-ton impacts. The main structure has exceptional load-bearing capacity, is sturdy and durable, and can store single or bundled profiles of different types.

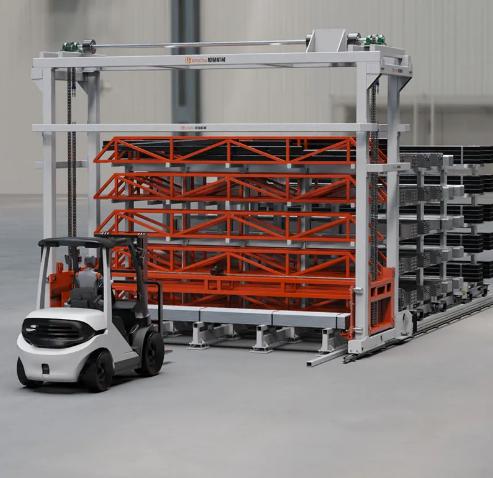

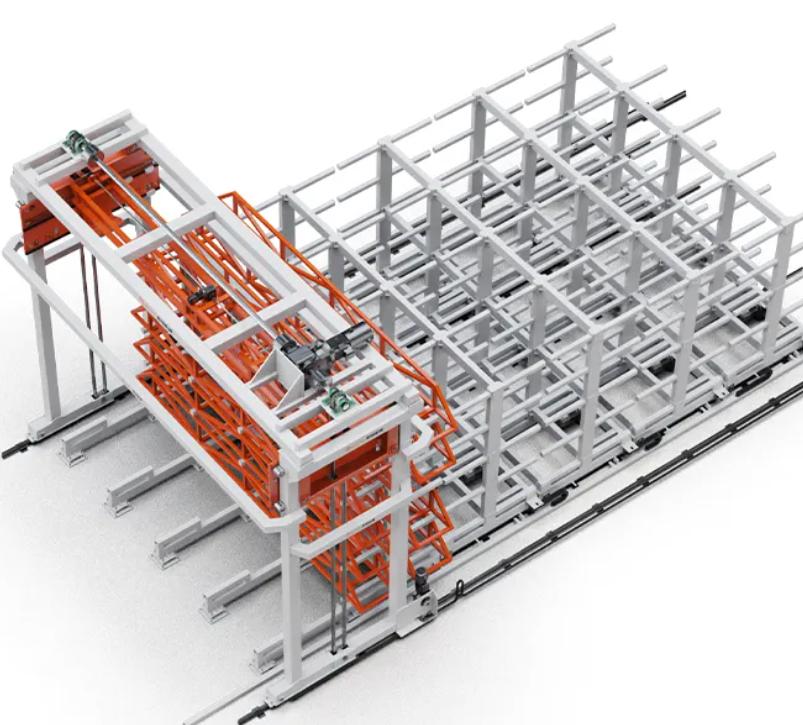

The system utilizes a gantry-type material warehouse structure with a sophisticated loading and unloading gantry system. This gantry is purpose-built to manage the unique geometry of long profiles, moving along a gantry mobile track that allows precise positioning over designated storage bays.

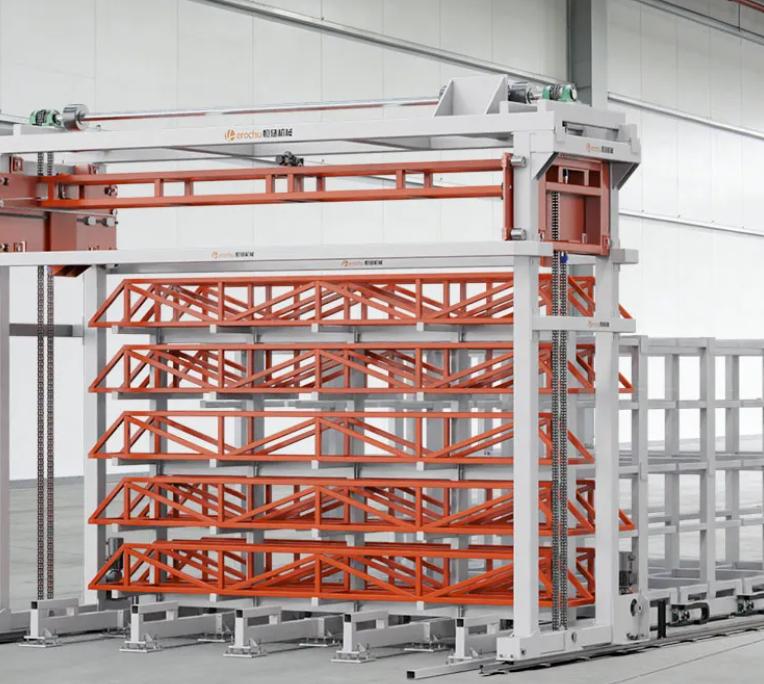

The lifting device incorporated in the gantry is engineered for heavy loads, ensuring that bundles of pipes are raised and lowered smoothly without abrupt movements that could cause damage. An integrated scrap material frame collects and manages end-cuts or defective pieces, maintaining cleanliness and organization on the warehouse floor.

Zero-Damage Handling and Operational Safety

One of the most significant advantages of the Herochu ISO9001/CE Certified Efficient Steel Pipes Automatic Storage Warehouse is its ability to eliminate material damage during handling. Automated gantry pickers eliminate drag marks, drops, and collisions common in manual forklift and crane operations, preserving stock value for expensive alloy and seamless pipes.

The system is fully integrated with PLC controllers and touchscreen interfaces, supporting 24/7 automated operation. This allows seamless material feeding to laser cutting lines and downstream production shifts without interruption.

Built-in safety measures include real-time load monitoring and laser obstruction sensors that automatically halt operation during misalignments or overloads. These features protect both equipment and personnel, reducing workplace accidents and associated costs.

Global Deployability and Support

As an ISO9001 and CE-certified direct manufacturer with over 15 years of industry experience and an enterprise base in Jinan, China, Herochu offers comprehensive support for global deployments. Services include complimentary engineering design, customized bin dimensions, layout configurations, on-site global installation, and full pre-shipment load testing.
